Yeastar – Adding Company contacts to Grandstream phones – Using GDMS or manually provision

https://help.yeastar.com/en/p-series-cloud-edition/administrator-guide/set-up-pbx-as-an-ldap-server.html

In GDMs

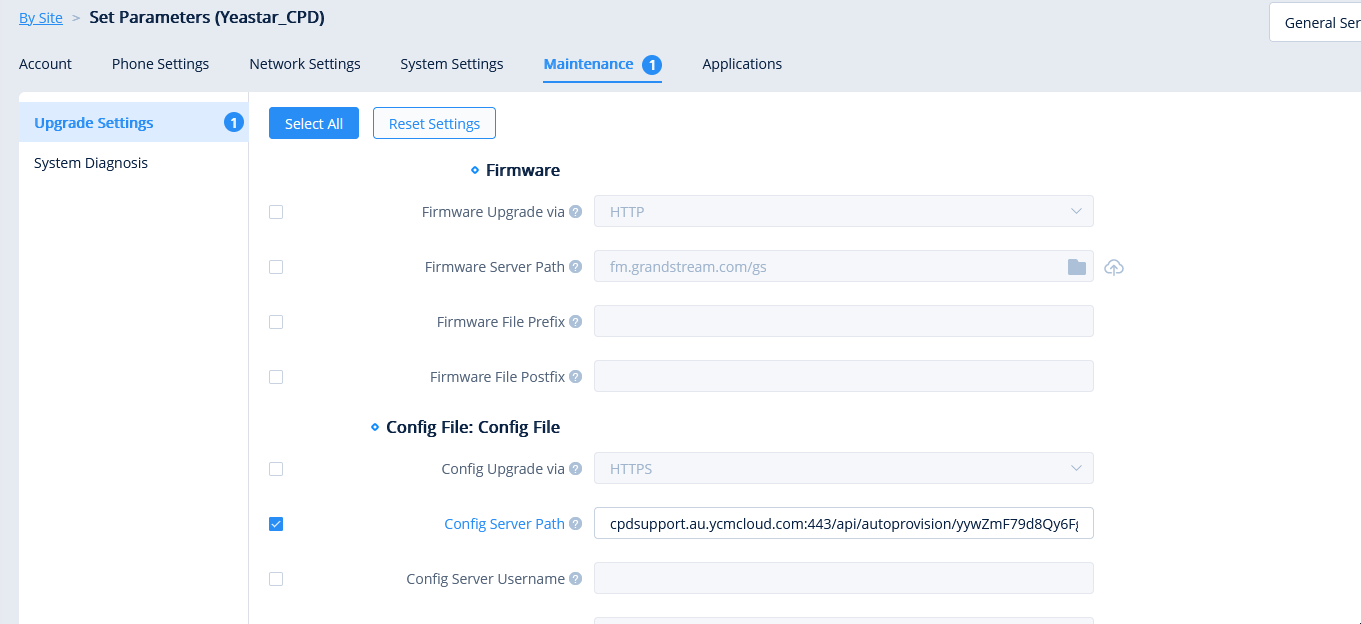

1. I have a site Configured  for Yeastar

The only thing in this site is the URL for my Yeastar

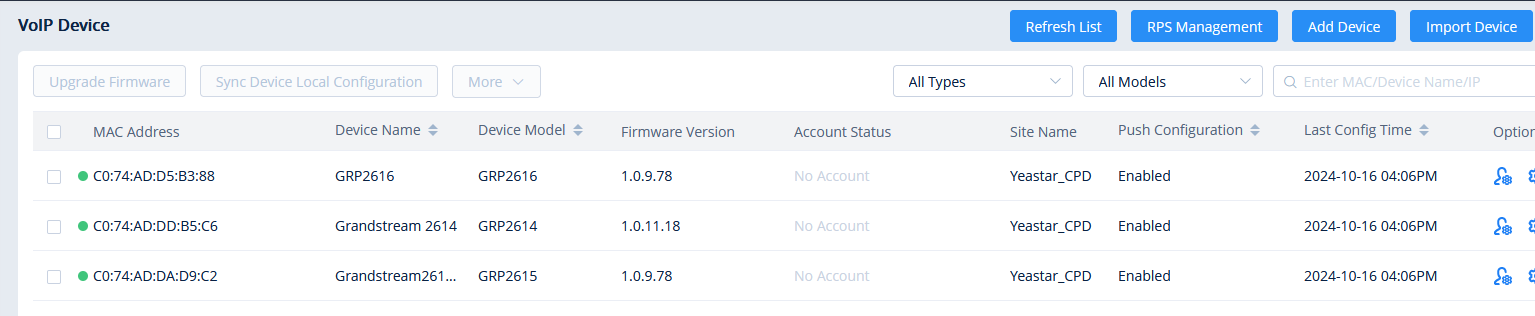

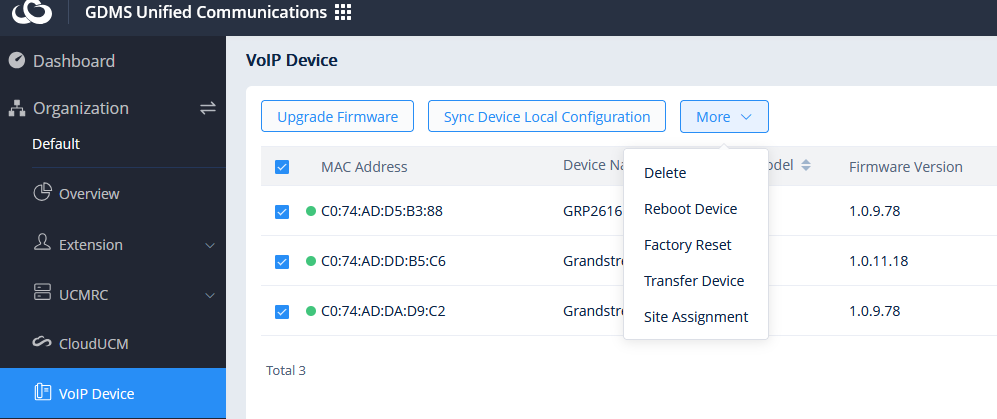

I have my handsets in Voip Devices pointed to that site – there is nothing else configured for these handsets

So I am only using the GDMS as a redirect server to pick up the url for the Yeastar

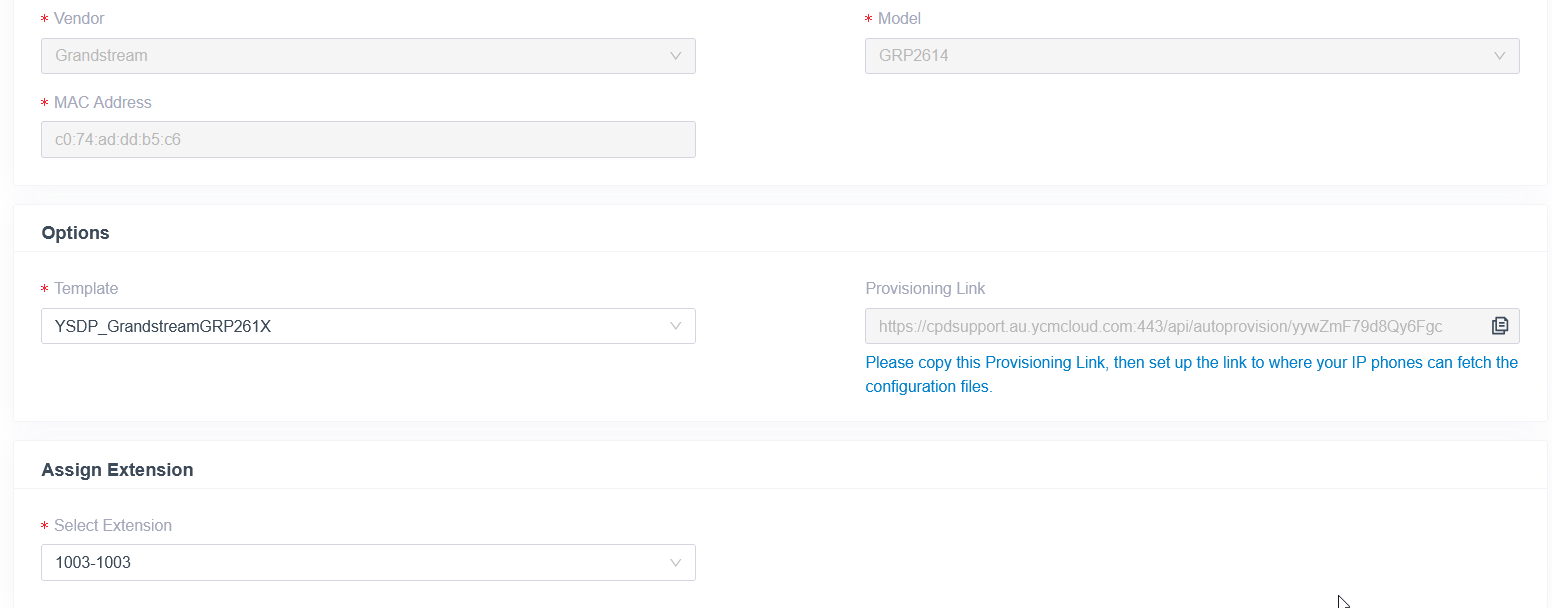

Alternatively if you are manually provisioning

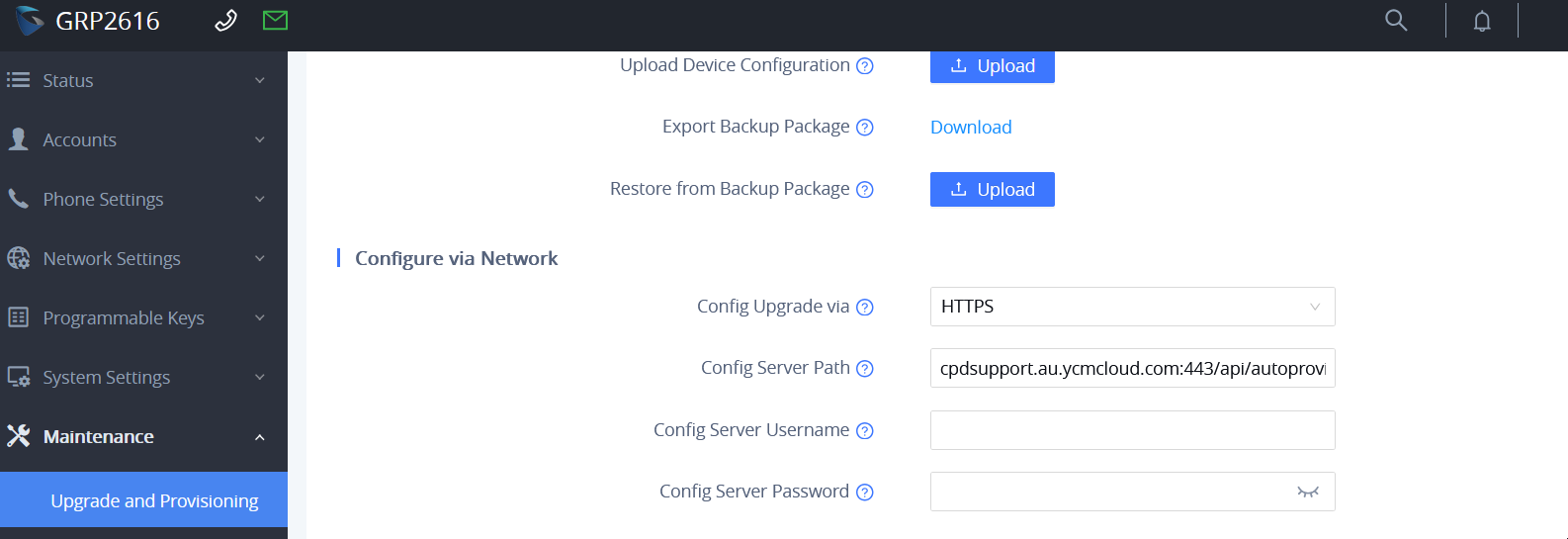

you can just enter the reprovisioning link into the phone _ if you factory reset the phones at any time you will have to reenter the URL

Yeastar

Log in to PBX web portal

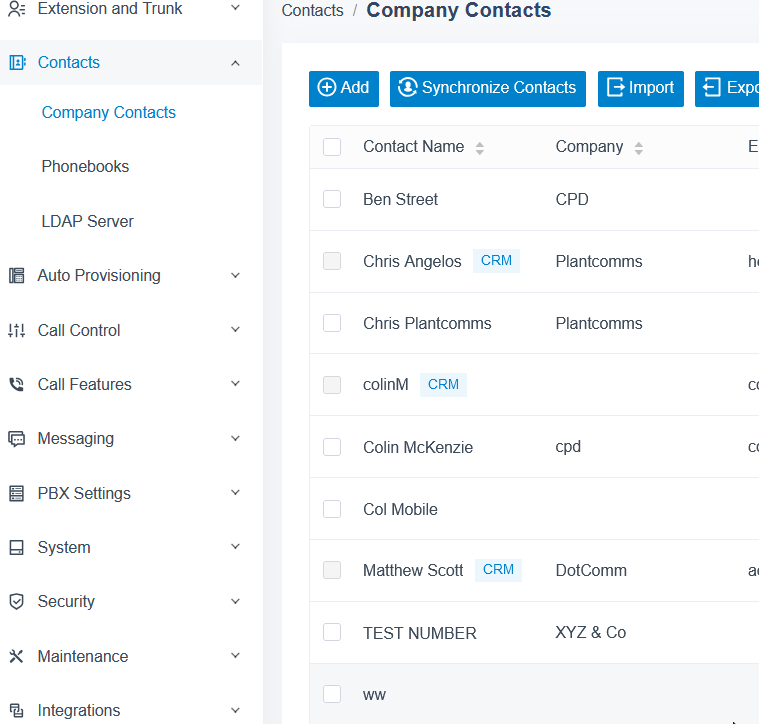

Add users to your Company contacts – as you can see in this case some entries are being pulled from CRM , some have been manually entered

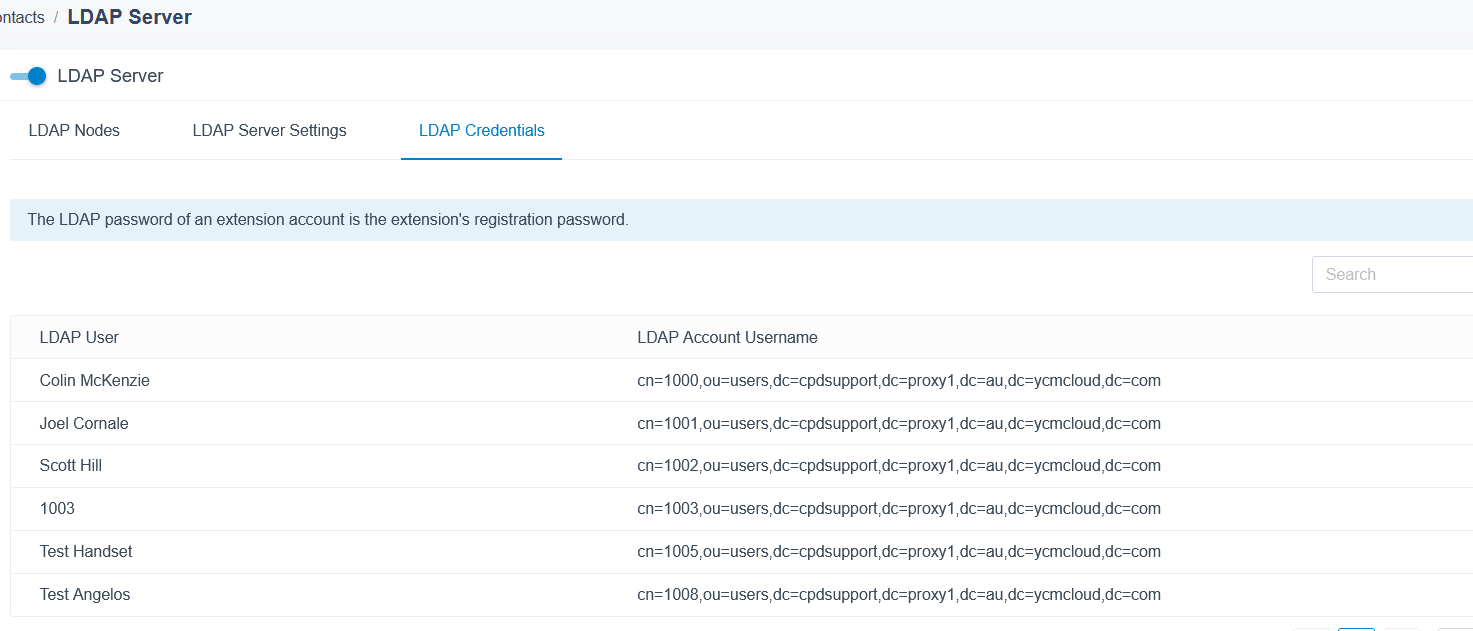

1  , go to Contacts > LDAP Server.

2 On the top of the page, turn on LDAP Server.

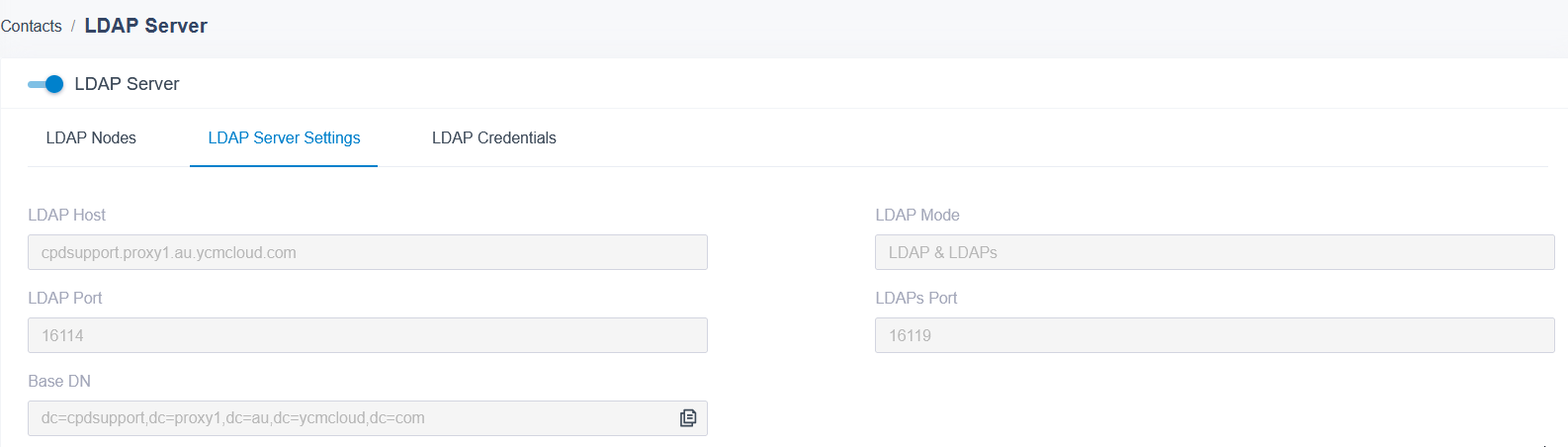

3 Click the LDAP Server Settings tab to check the LDAP Server settings .

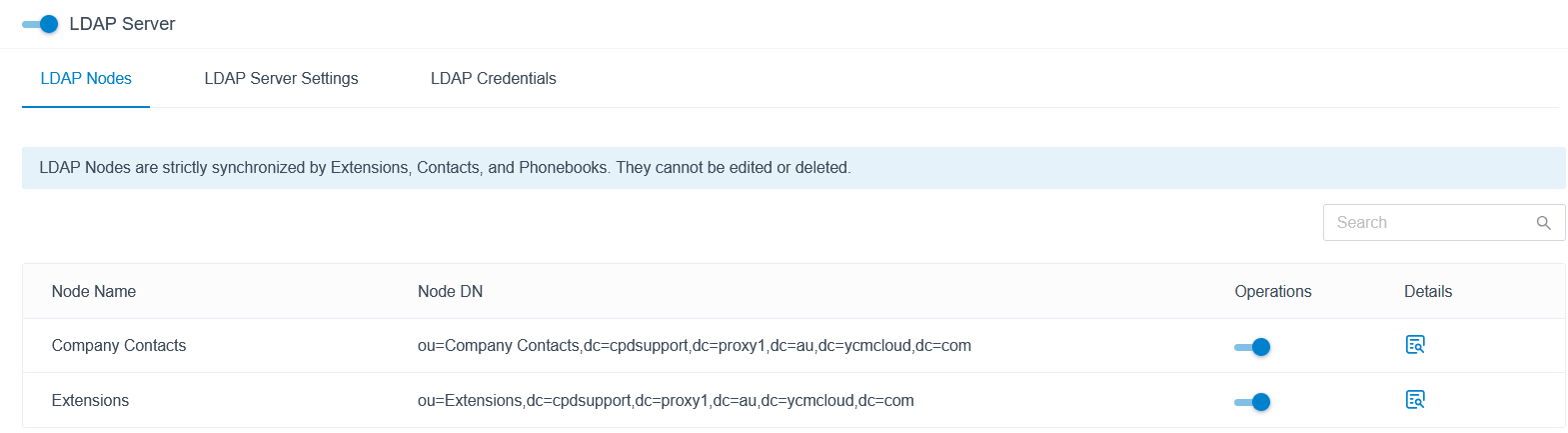

Click the LDAP Nodes tab, enable or disable the nodes according to your needs.

If a node is disabled, you cannot query the information under this node.

Add your phones under Auto provisioning as per normal

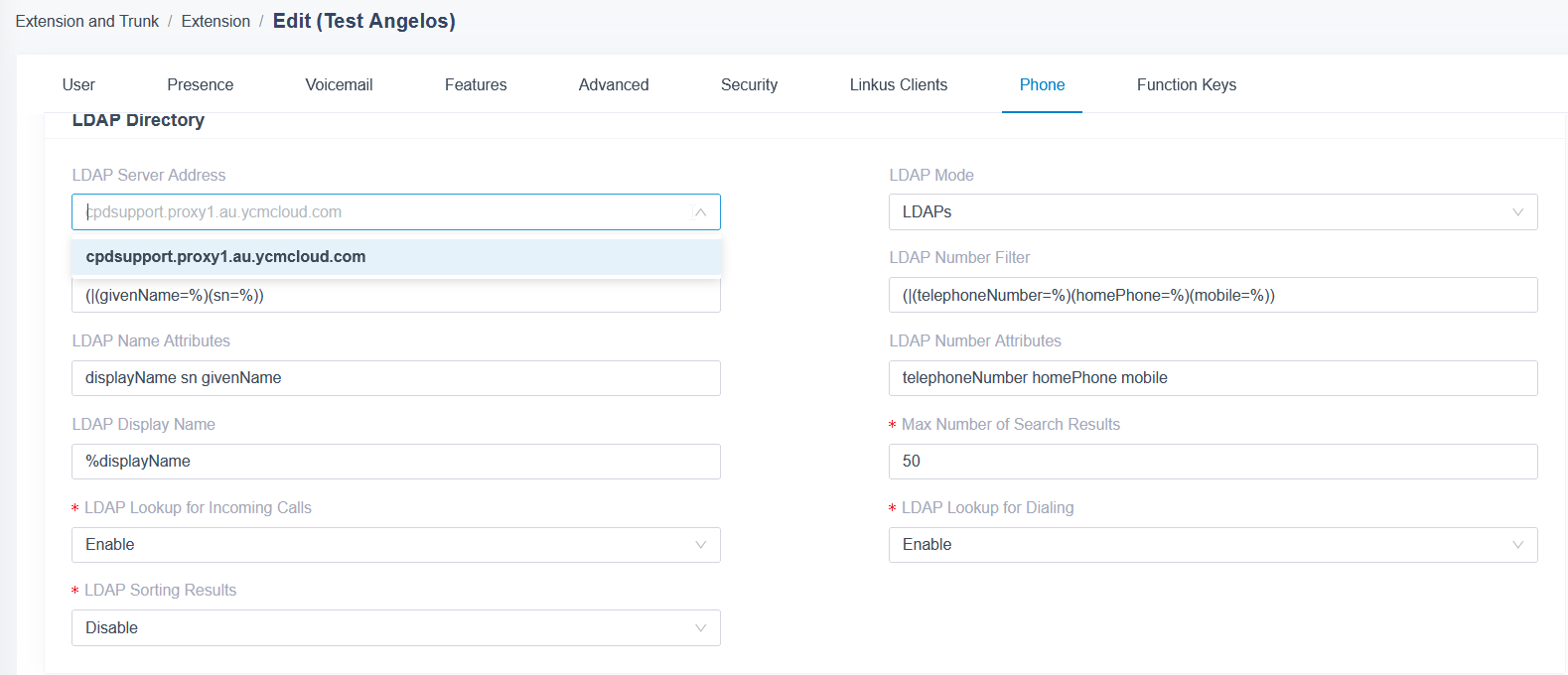

In Extension and trunk /Extension /phone

Select the LDAP server address as the one you just created (it will be in the drop down )

Save and apply

Plug your phone in _ IF YOUR PHONE IS ALREADY CONNECTED TO THE YEASTAR YOU MAY HAVE TO FACTORY RESET THE HANDSET TO DOWNLOAD THE LDAP CONFIG -I found reprovision did not work )

To test

Goto handset and click on the Contacts button or scroll to Contact thru menu

Then LDAP directory – you should now see your entries

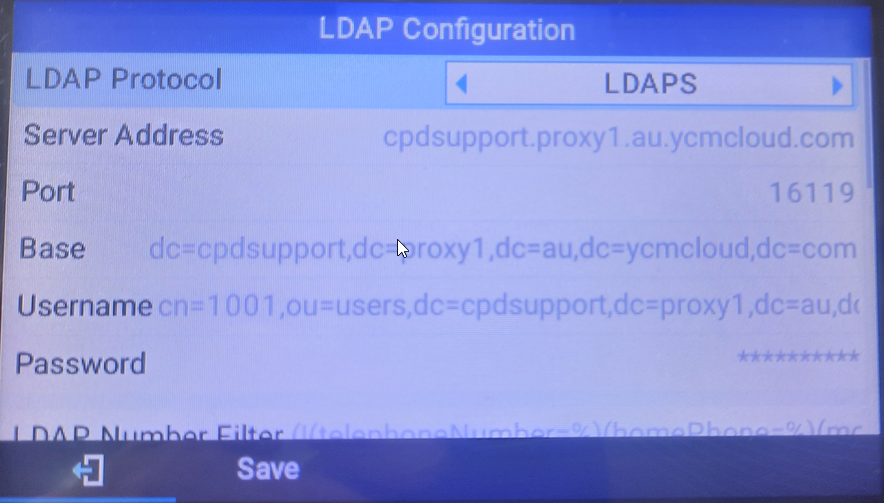

If not – in same menu goto Config and see if the server address etc is in the phone (This should be downloaded when the phone pulls down the Config file from the Yeastar)

If empty

Try factory resetting the phone again
