Adding a Grandstream Device to a Yeastar instance via GDMS

Log in to Yeastar


  1. If you simply use the provisioning link in the Yeastar in the Grandstream phone , it will work , but as the factory reset is not password protected in the Grandstream phone , any factory reset (accidental or otherwise ) will remove the provisioning link and the phone will stop working- below is a simple way around this

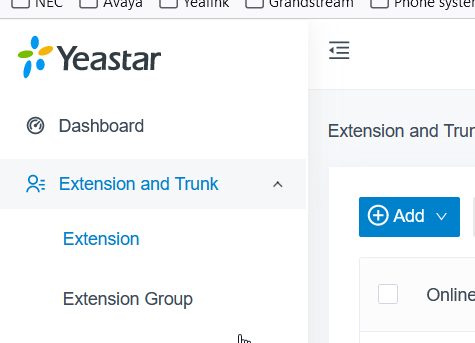

Create a Extension

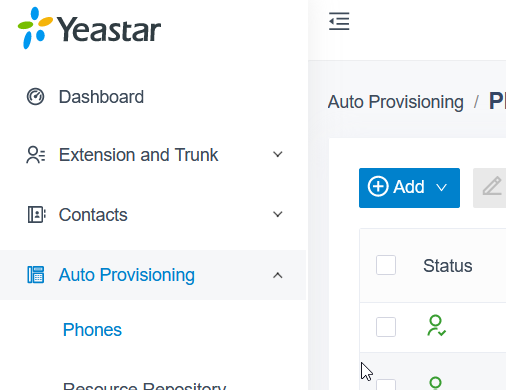

Got Auto provisioning/Phones  and add

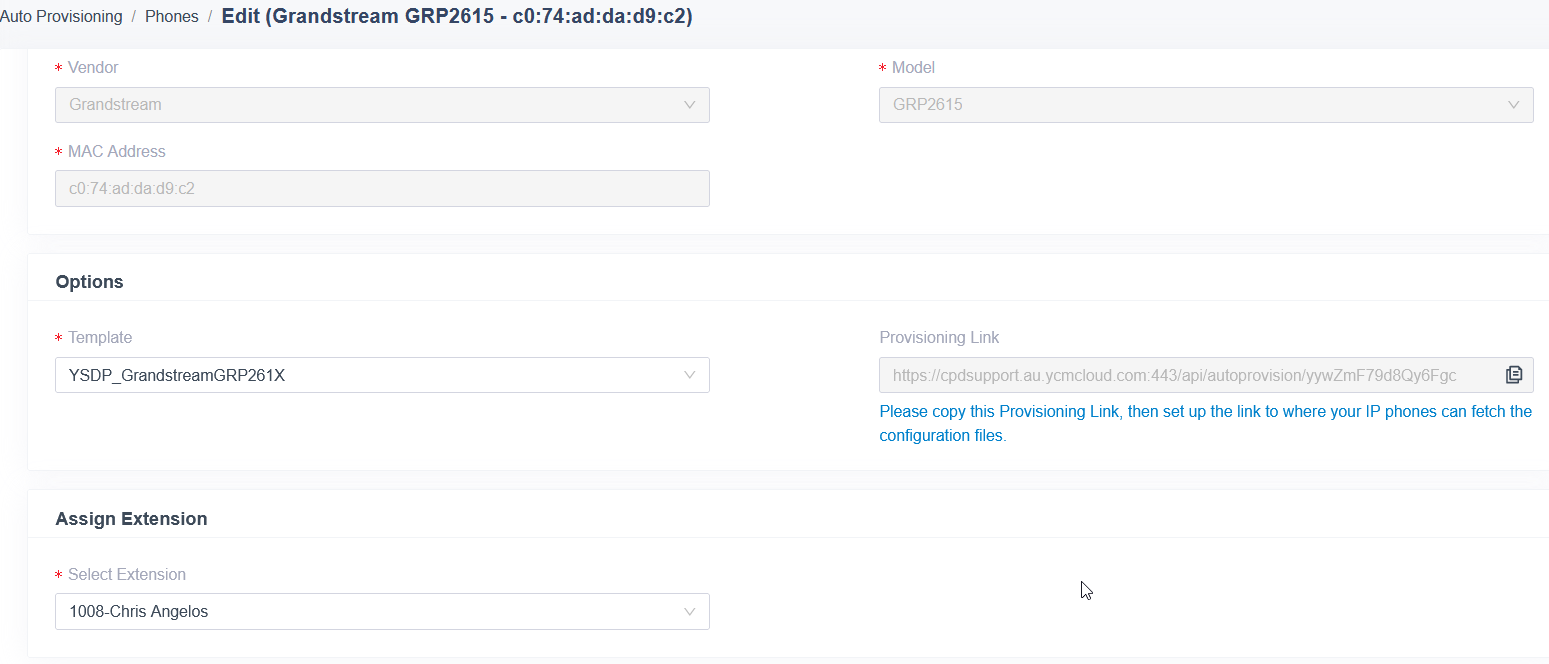

Add the details of the phone and assign to the extension you just created


A screenshot of a computerDescription automatically generated



Log in to GDMS

https://www.gdms.cloud


if you don’t have an account set one up

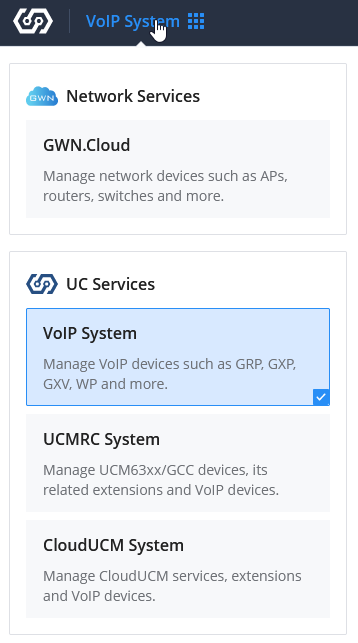

Select Voip System (top left handside of screen)

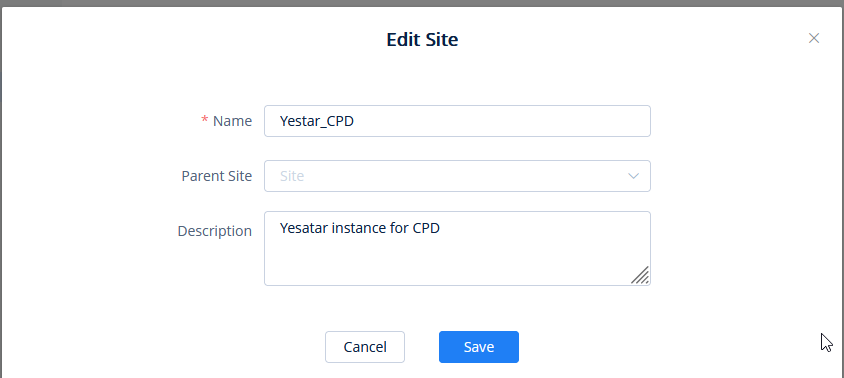

Create a site

A screenshot of a computerDescription automatically generated

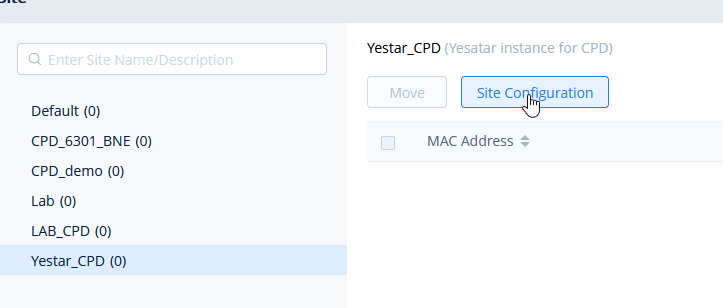

Now goto Site configuration


A screenshot of a computerDescription automatically generated

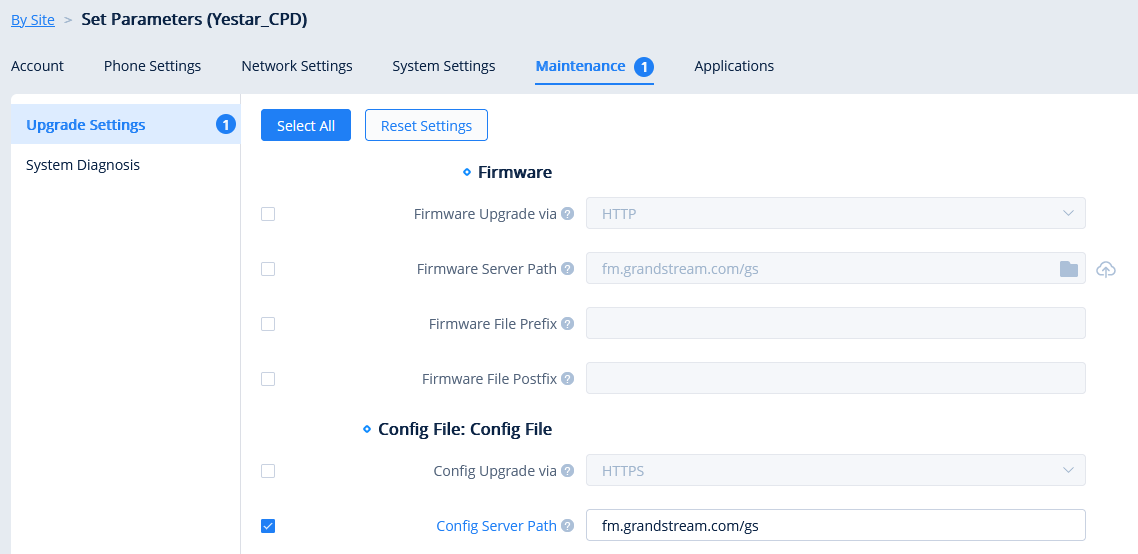

Maintenance

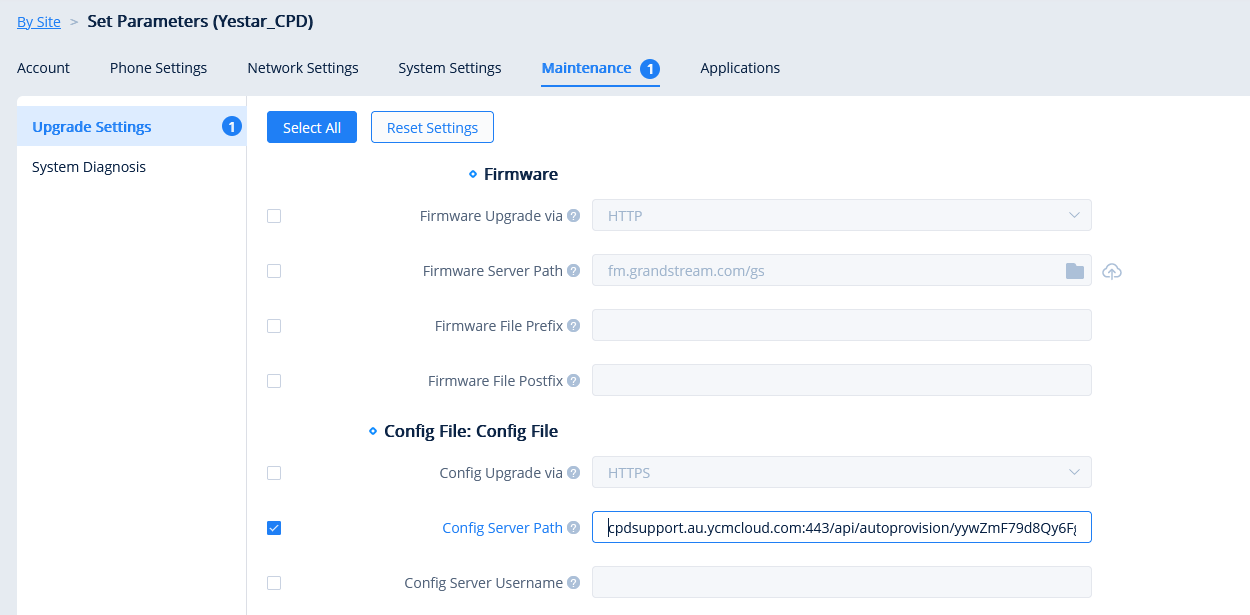

Tick Config server Path

A screenshot of a computerDescription automatically generated


In Yeastar


Auto provisioning /Phones

Pick any phone it doesn’t matter as the provisioning link is the same

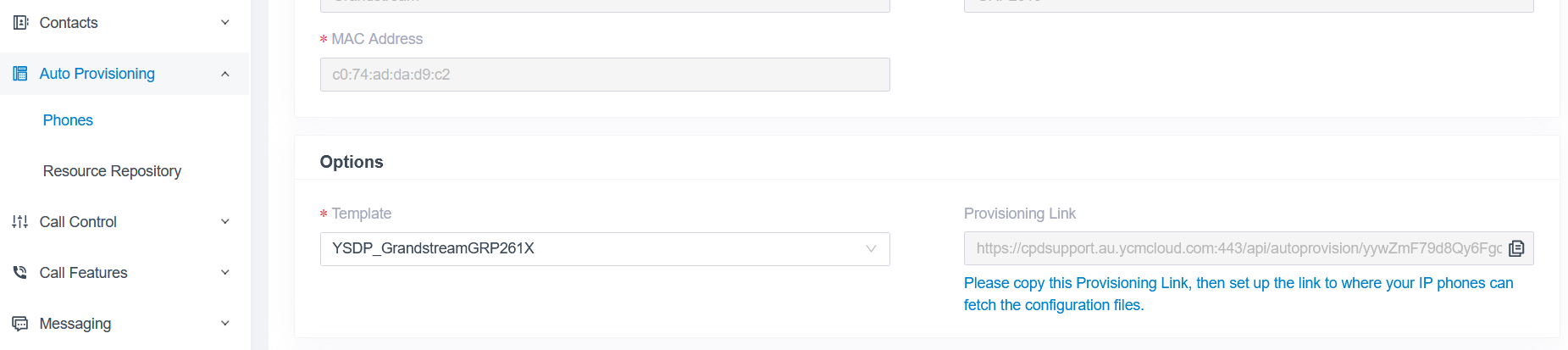

Copy the provisioning link


A close up of a screenDescription automatically generated


And paste into GDMS

Config server path that you have just ticked above


YOU MUST REMOVE THE https:// FROM THE URL

So https://cpdsupport.au.ycmcloud.com:443/api/autoprovision/yywZmF79d8Qy6Fgc


Must be entered as

cpdsupport.au.ycmcloud.com:443/api/autoprovision/yywZmF79d8Qy6Fgc


A screenshot of a computerDescription automatically generated


And save

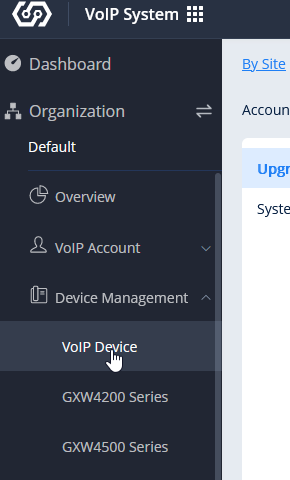

Goto Device management /VoIP device

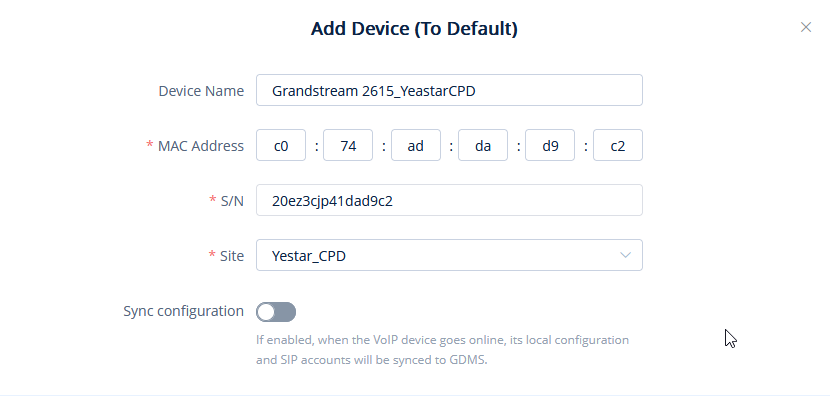

Add a device and select the site ( the MAC and S/N numbers on sticker on bottom of phone)


A screenshot of a computerDescription automatically generated


Now factory reset the phone

Go to system and scroll till you find Factory reset
