Yeastar-LDAP -Create Phone book for Yealink phones

NOTE : the contacts permissions will only work for Linkus, the ldap will always show all the company contacts in the PBX

https://help.yeastar.com/en/p-series-cloud-edition/administrator-guide/set-up-pbx-as-an-ldap-server.html

https://help.yeastar.com/en/p-series-cloud-edition/administrator-guide/contacts-overview.html

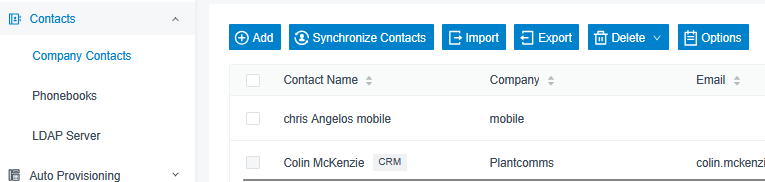

Create your contacts in customer contacts

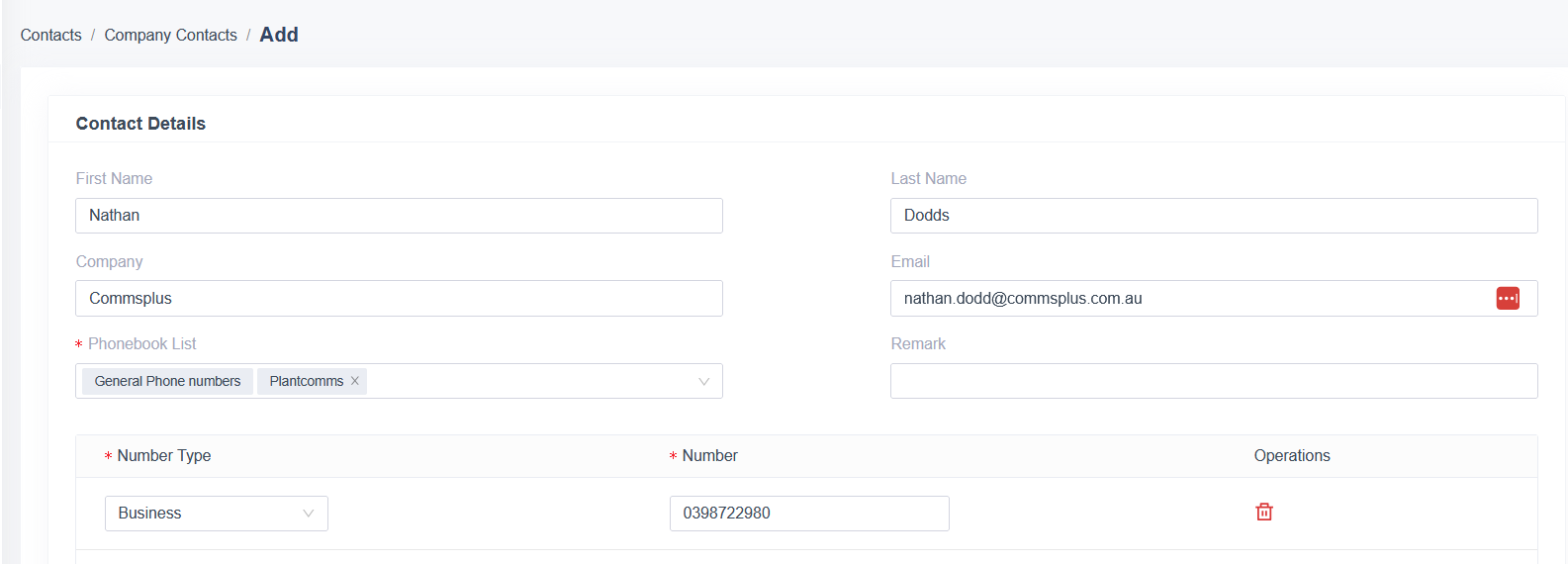

Create Contacts

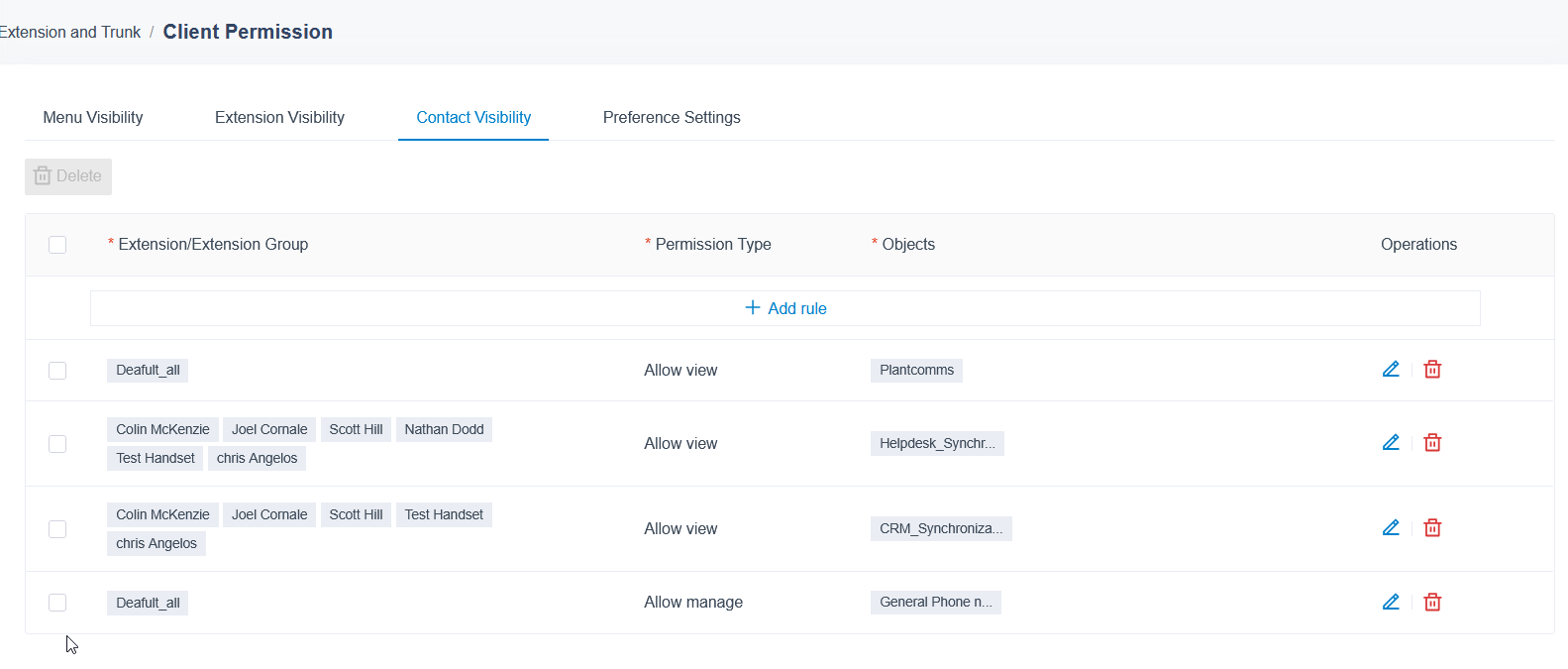

Allow users to view phone books , if using Linkus clinets

go to Contacts > LDAP Server.

On the top of the page, turn on LDAP Server.

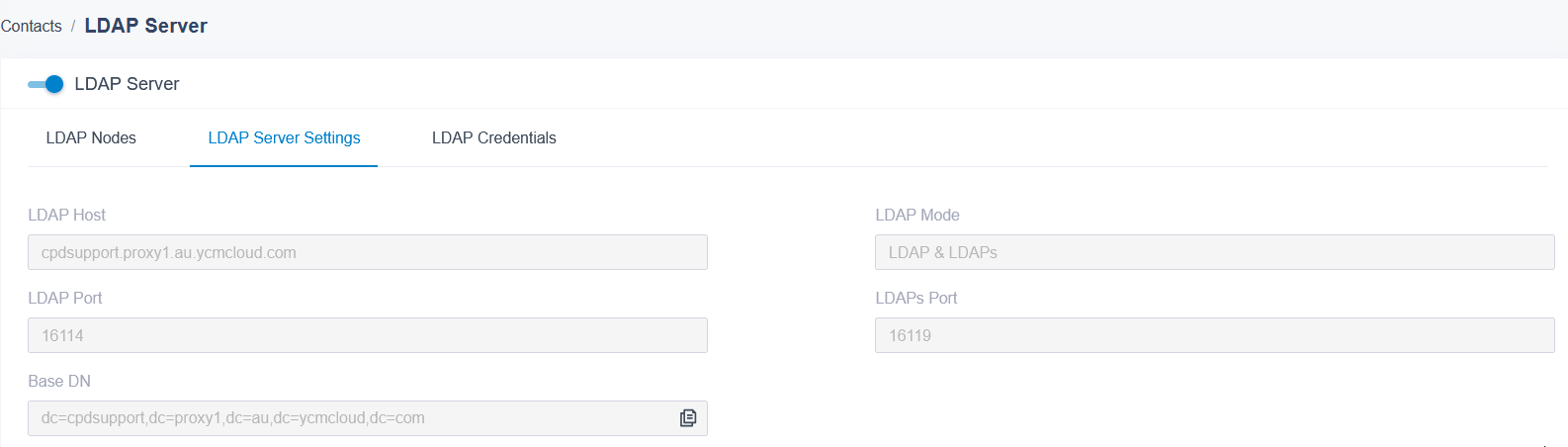

Click the LDAP Server Settings tab to check the LDAP Server settings .

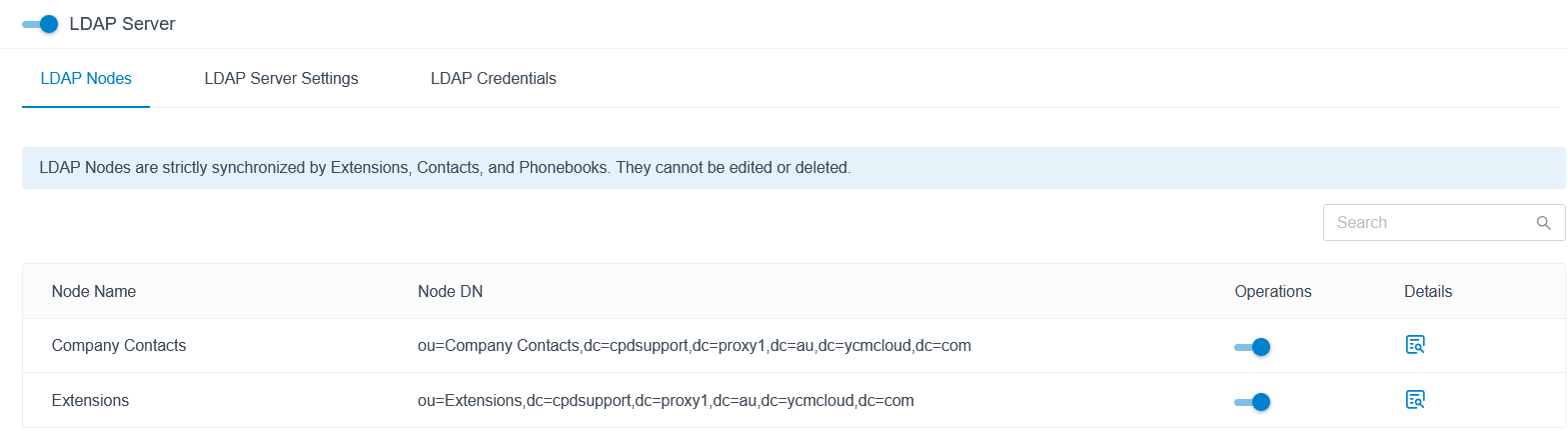

Click the LDAP Nodes tab, enable Company Contacts and extensions

If a node is disabled, you cannot query the information under this node.

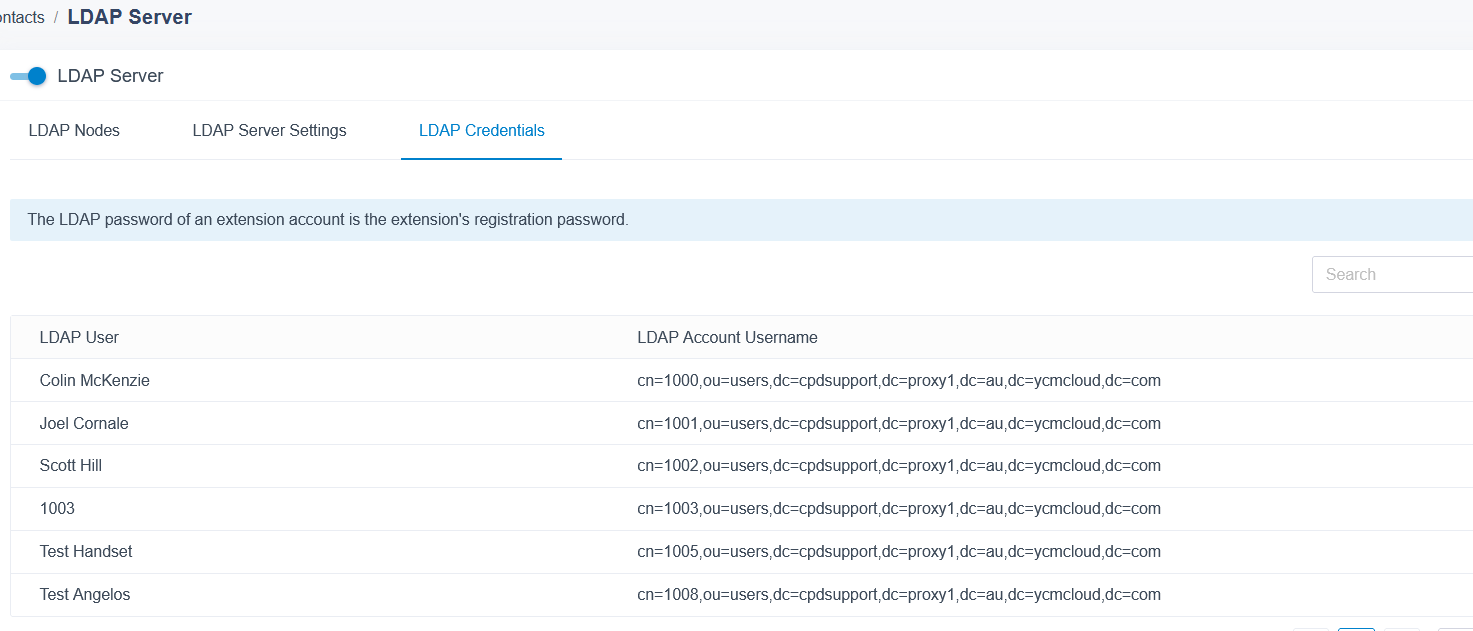

You should also see your Credentials for each user etc (these will automatically be added to your phones )

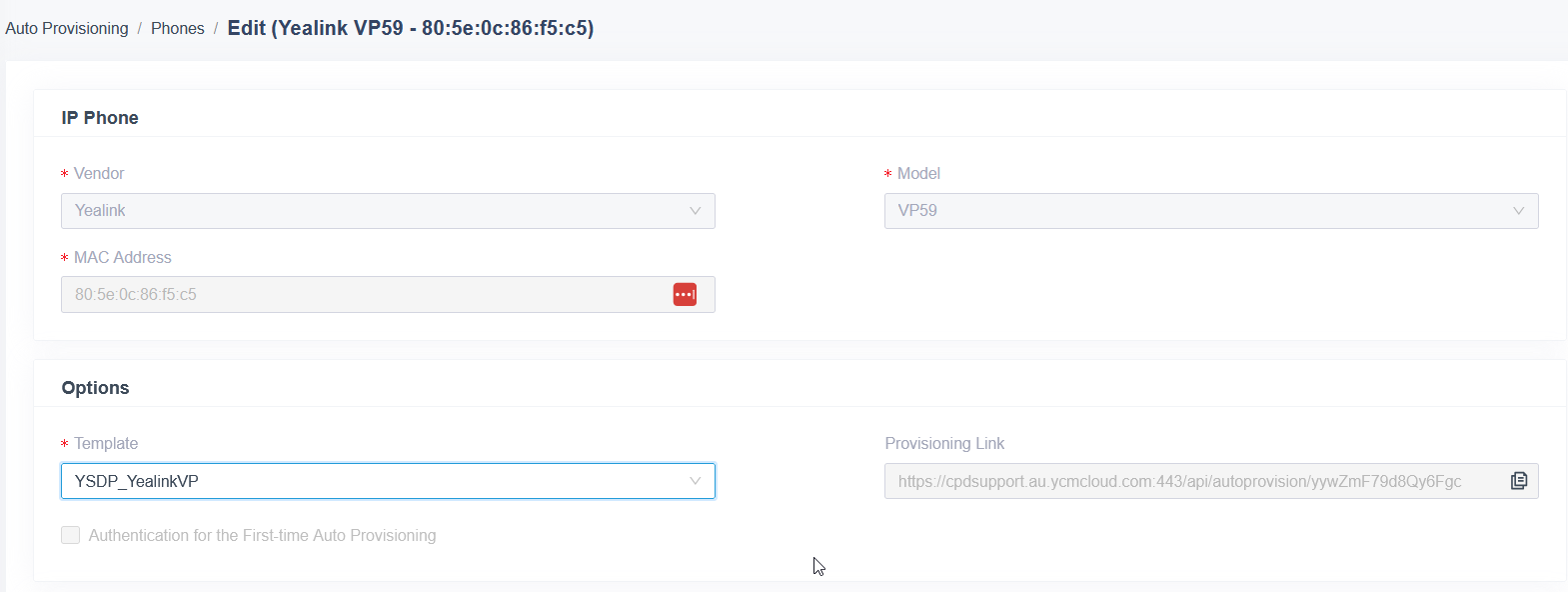

Add your phones under Auto provisioning as per normal

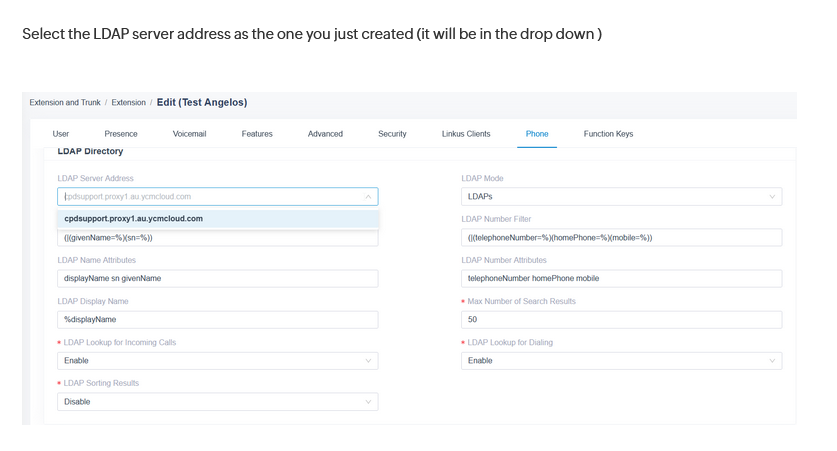

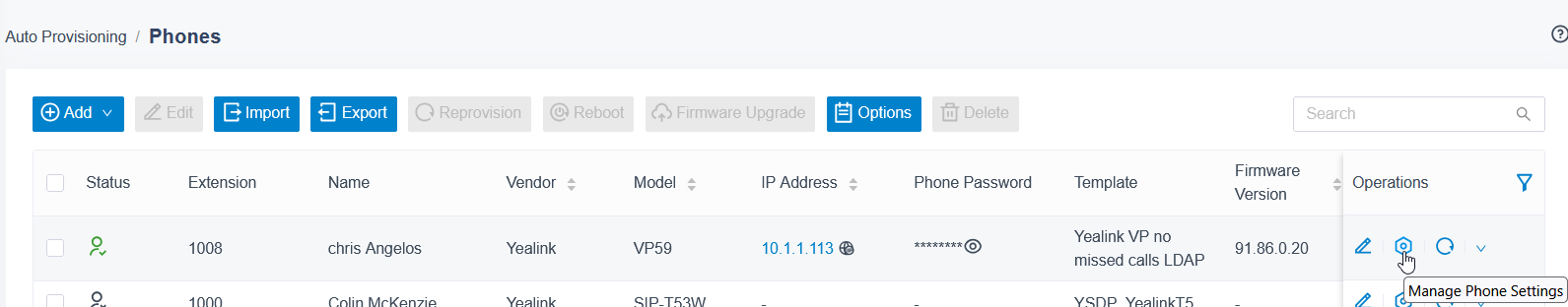

Select manage phone settings or Goto Extension and trunk /Extension /phone

Create a function key – if desired ( simpler to find contacts )

Plug your phone in _ IF YOUR PHONE IS ALREADY CONNECTED TO THE YEASTAR YOU MAY HAVE TO FACTORY RESET THE HANDSET TO DOWNLOAD THE LDAP CONFIG -I found reprovision did not work )
