Auto Provision Avaya Phone in Yeastar

Yeastar - Auto Provisioning - Phones

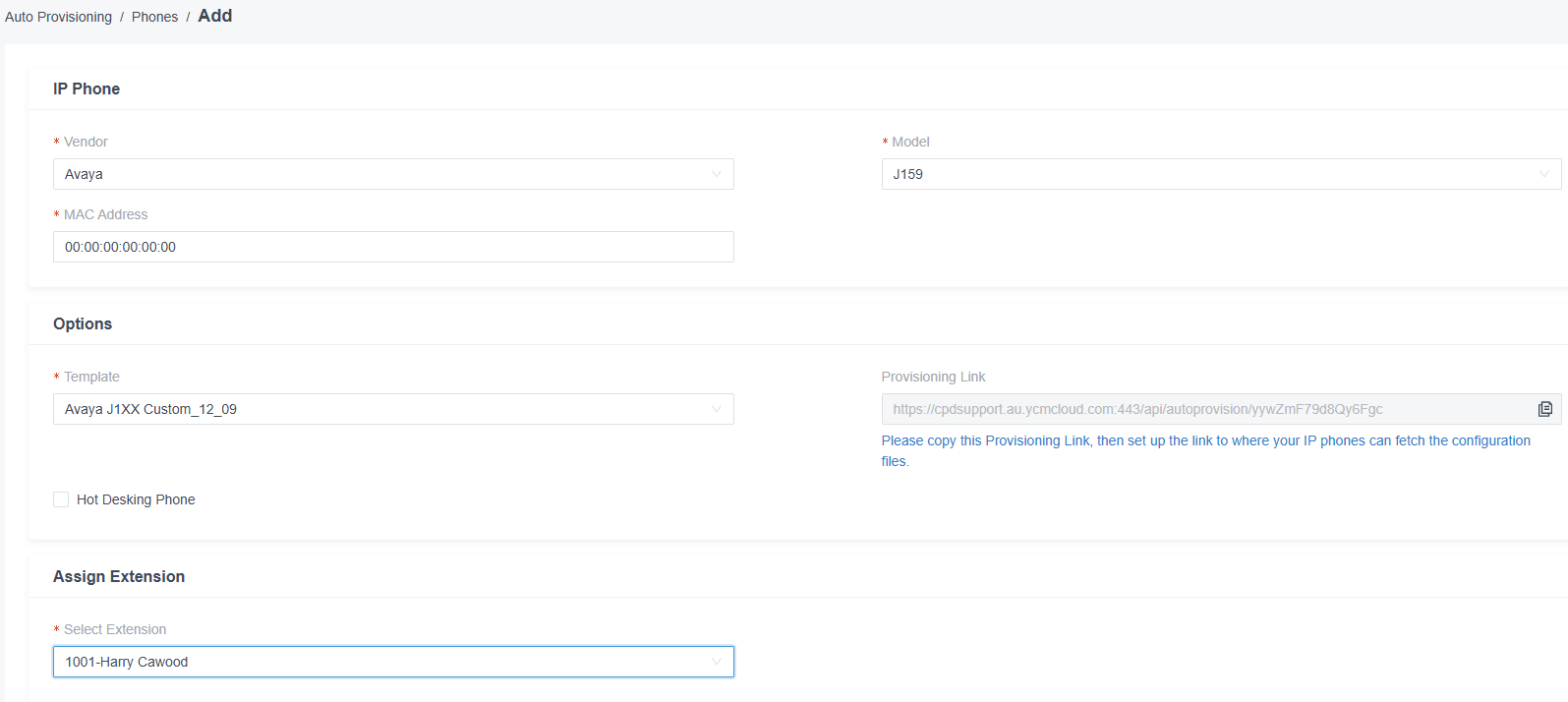

Add the phone

Configure Avaya J Series

Power on the Avaya J Series
Note: If the phone has already been used, you will need to access the Admin (default password 27238) and reset the phone to default)

Select No to "Do you want to allow Auto Provisioning)
Wait until the phone has acquired an IP address from the local DHCP server
The phone screen will then ask you to "Enter Your Provisioning Details"
Select Config
In the Address enter the full provisioning link (in full)as it shows in the Yeastar
Note: If the Avaya J Series has a USB port (example J159) you can plug a USB keyboard in to use
Note: the forward slash can be found by selecting More (on the phone)
When finished, select Save
The phone will reboot and connect to the Yeastar

Login Avaya J Series
Confirm the Registration Name and Registration Password of the Extension in Yeastar
Note: Registration Name should be set as the extension number in Yeastar (do not use letters)
Use the Registration Name as the Username on the Avaya J Series
Use the Registration Password as the Password on the Avaya J Series
Select Done (to login)
