Grandstream HT802 to Yeastar




Setup Yeastar User


In Yeastar admin portal, add user for the ATA   and configure as below:

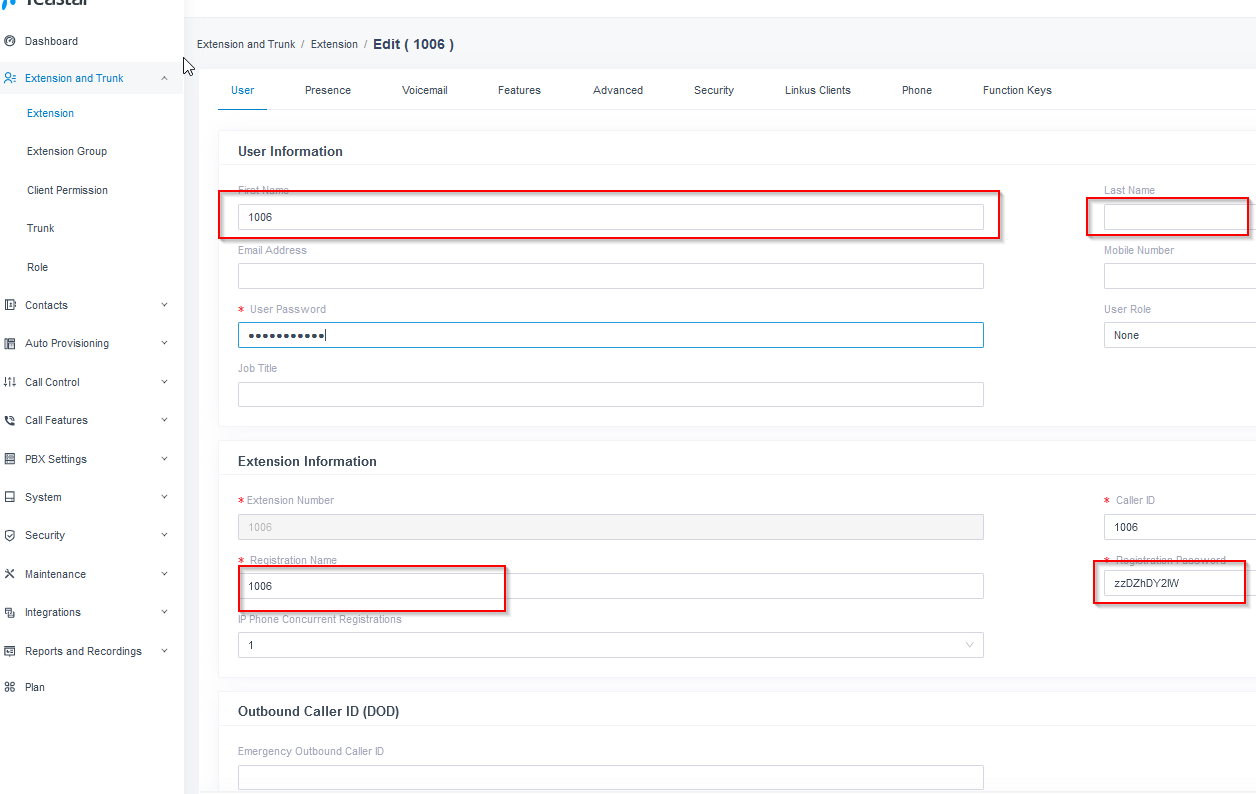

  1. Assign Extension Number and Name, take note of Registration Name and Password, use auto generated or set a new password.


Graphical user interface, text, application, emailDescription automatically generated

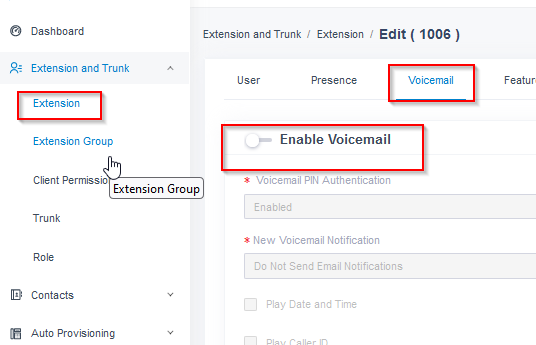

Disable Voicemail


  1. Click Save and Apply




  1. Log into Grandstream  HT 802 (DHCP enabled by default ) can be found via LAN scan


User name: admin

Password: admin


A login box with a number and a box on itDescription automatically generated

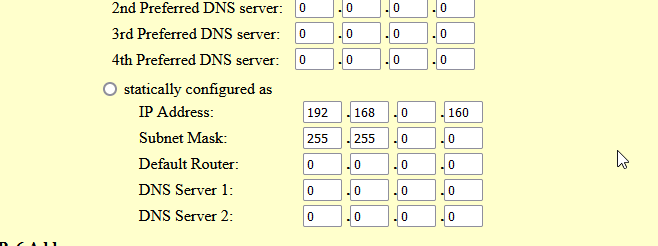

      You can assign an address to the unit  in  Basic settings IPV4 settings or leave as DHCP(Static recommended)
      If using static IP ,  DNS servers MUST be entered as we are using FQDN and require name resolution

            A screenshot of a computerDescription automatically generated

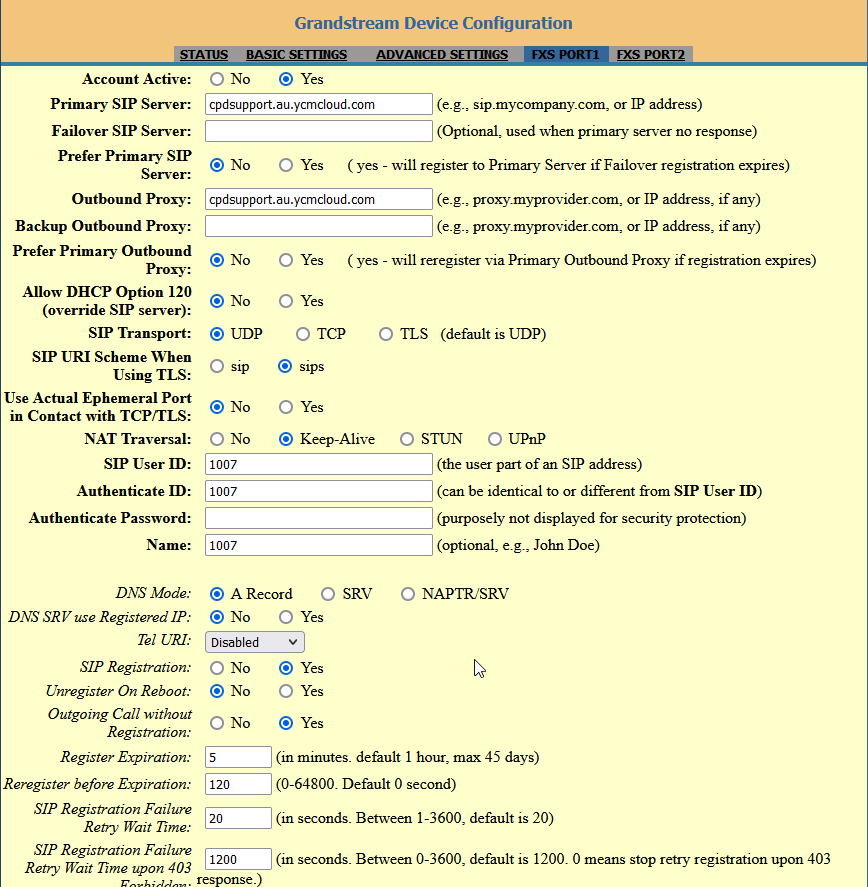

       Go to Accounts 1



      Make Account Active: Yes


      SIP server address/Outbound Proxy is YOUR URL for the Yeastar  instance.


      User name is the extension number and the password is the password


      Set register Expiration to 5

      Subscribe registration to 120


      NAT Transversal :Keep Alive

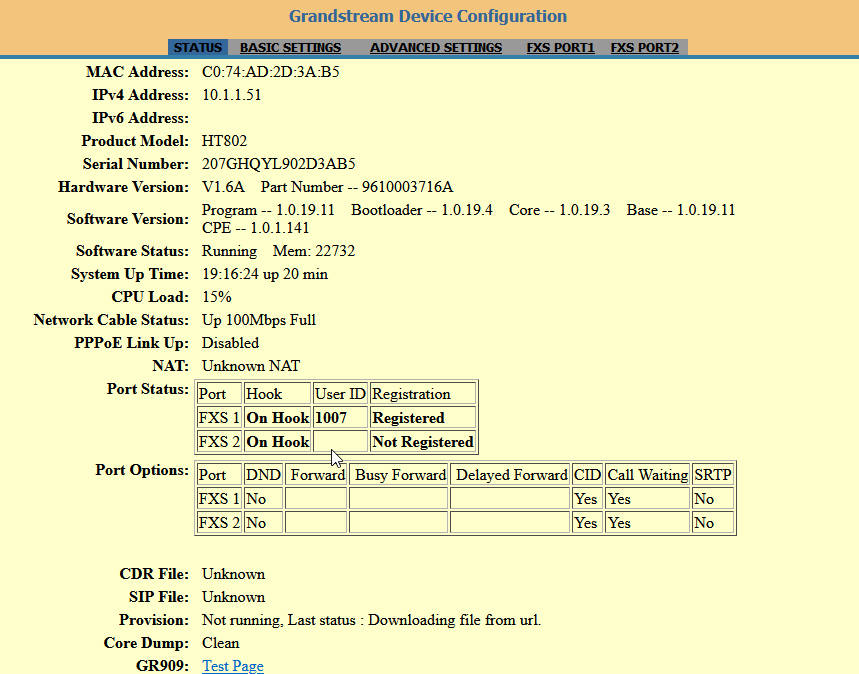

      Goto Status and confirm it is registered and active


      A screenshot of a computerDescription automatically generated





      Make test calls












Helpful fax settings



Scroll down and configure the following options:

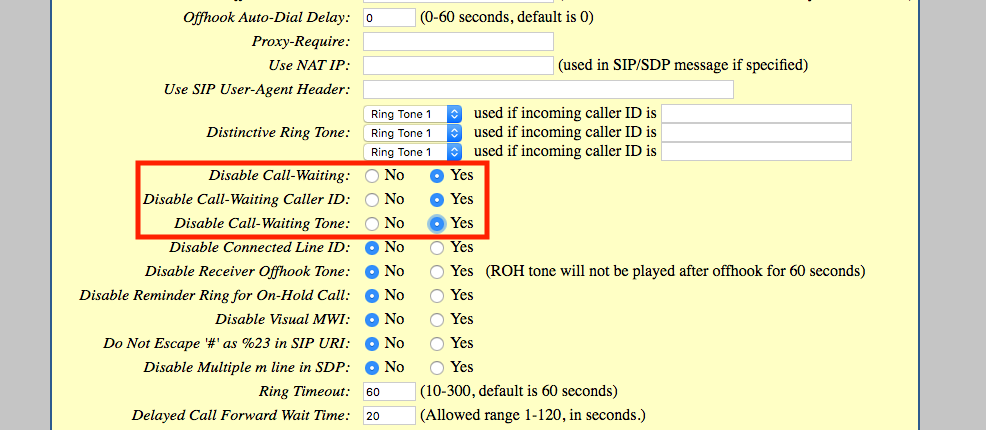

  1. Disable-Call-Waiting: Yes
  2. Disable-Call-Waiting-Caller-ID: Yes
  3. Disable-Call-Waiting-Tone: Yes

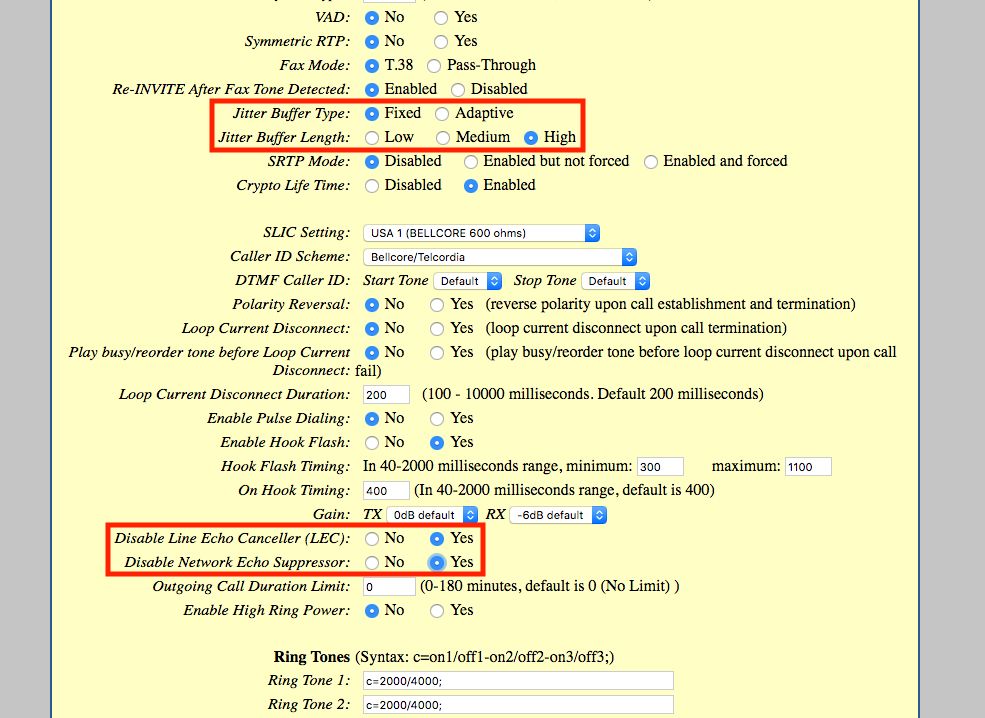

  1. Jitter Buffer Type: Fixed
  2. Jitter Buffer Length: High
  3. Disable Line Echo Canceller (LEC): Yes
  4. Disable Network Echo Suppressor: Yes
