SL2100 & SV9100 Mode Switch


NEC has 8 modes of operation, the 8 modes effect:

Inbound, call routing ( non DDI )

Inbound, trunk group to translation table ( DDI )

Outbound ( trunk group routing )

Class of service

Toll Restriction Classes


By default they are named: ( 12-07-01 )

1 ( blank )

2 <Night>

3 <Mid Night>

4 <Rest>

5 <Day 2>

6 <Night 2>

7 <Mid Night 2>

8 <Rest 2>


How to switch

Service Code

From a handset that is in the correct Class of Service

Press speaker , 718 , x , Press speaker

Where x is mode 1 tru 8

Feature access Key

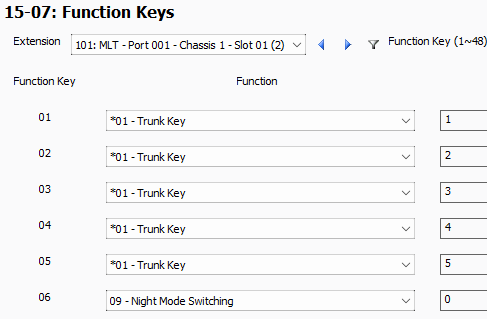

Press Mode Key , key 6 bellow: ( additional data 0= toggle )

Tip:

Enable 12-08-02 ( this will light up the night switch toggle key )

Automatic Mode Switch


12-01-02 = Enabled

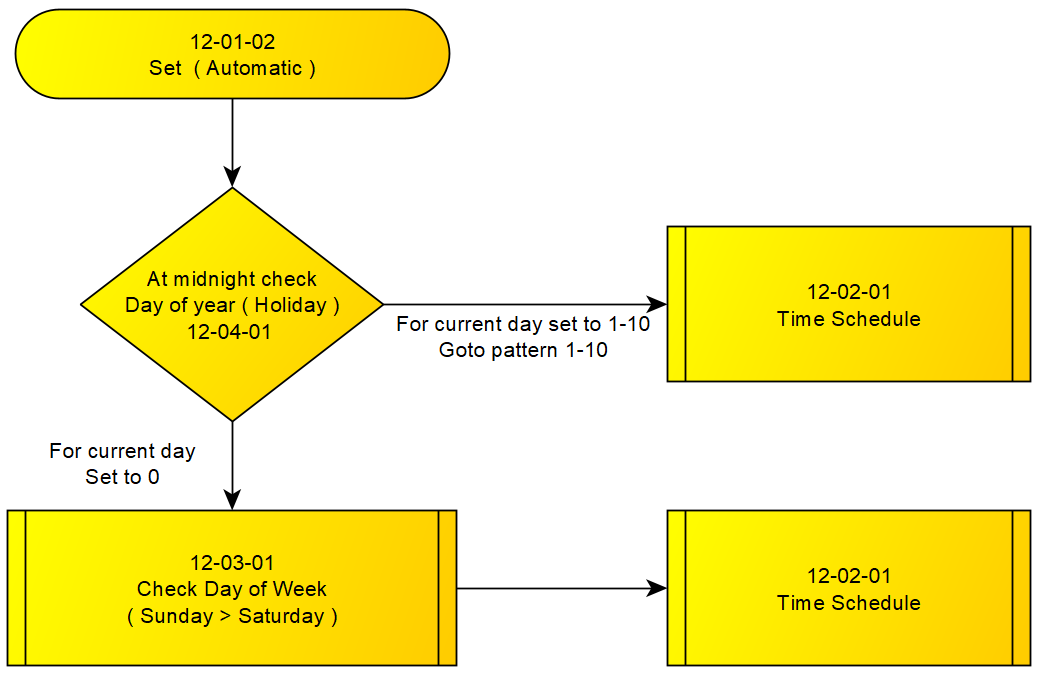

12-02-01 Flow

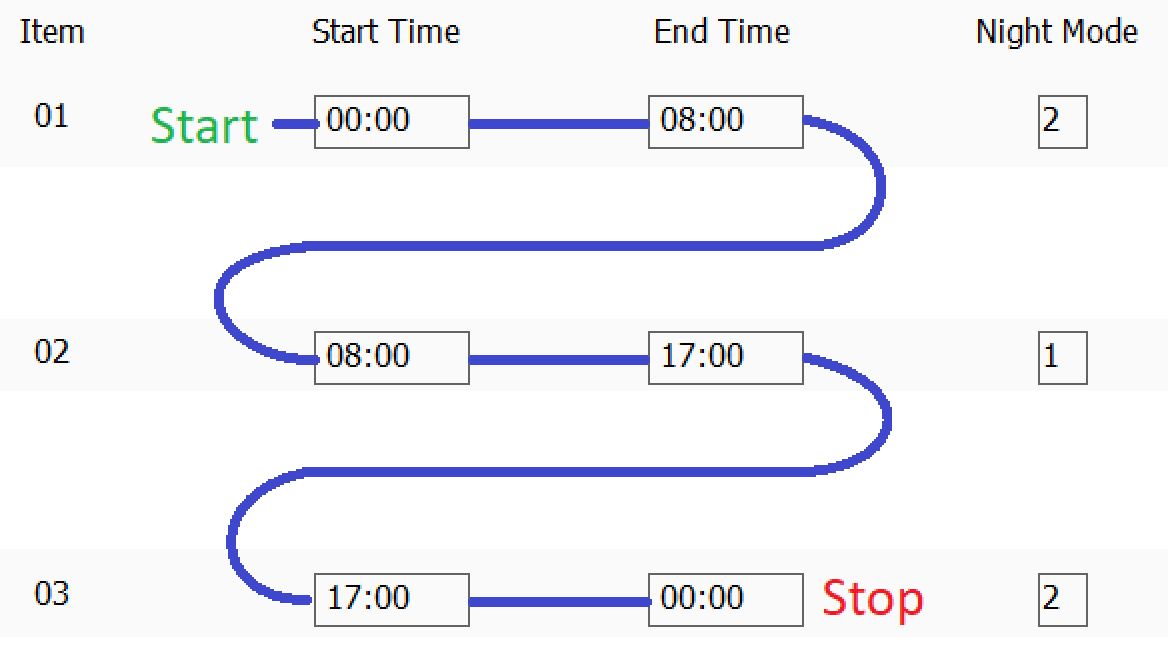

A blue line with white textDescription automatically generated



Automatic Mode Switch – with Manual over-ride key

Set the Automatic Mode Switching up as normal

The system will require a #07 , additional data = 1, key assigned ( Fix Operation Mode ) additional data = 1 because all extensions & trunks are in group 1 ( 12-05 & 12-06 )



When this key is lit the system will stay in the mode that was last set by the user ( either by pressing a night mode key .. or via access code )

You cannot change mode while the FIX key is lit.


NEC Engineering have confirmed this FIX key is a key function only , No service code or Webpro access to this feature


Automatic Mode Switch – Auto Night ONLY

In this example the system will automatically go into mode 2 at 5:00pm each night ( for those who forget to night switch at the end of their day )


A screenshot of a computerDescription automatically generated


A screenshot of a clockDescription automatically generated



Having different times for different days
