Back Ground Music

External source can only either be MoH or BGM , NOT BOTH.

Work around:

Set your External source as BGM , then program the trunks to use BGM as MOH.


SL2100, select your Combo ( 082 ) card slot number where you have your Music ( Pins 1&8 on the RJ61 connector in the RL/Audio jack )

SV9100 , select your AUX port on the CPU


Program your trunks to use BGM as its MOH source

A screenshot of a computerDescription automatically generated

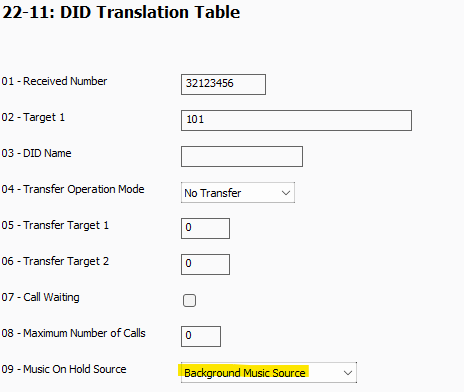

If you are using Direct In Dial you also need to program this in all relevant tables:

Now the user can dial service code 725 to enable / disable handset BGM

Or

Program a Key as Feature 04 ( BGM )
