NEC SV9100 , SL2100 Set MoH to use uploaded message
Music On Hold – upload audio file
You can upload one Music on hold file
Set MoH source selection to VMDB
Set Tone selection ( suggest using 10 )

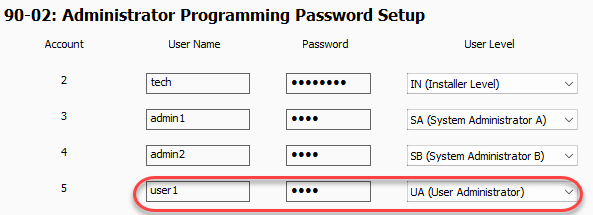

Set web access credentials
Set in PRG 90-02 for login level to allow the upload of the Music on hold recording

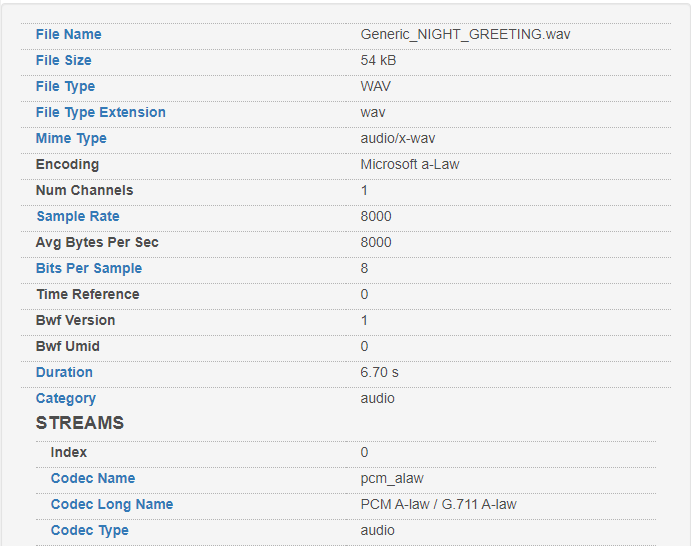

File Format:

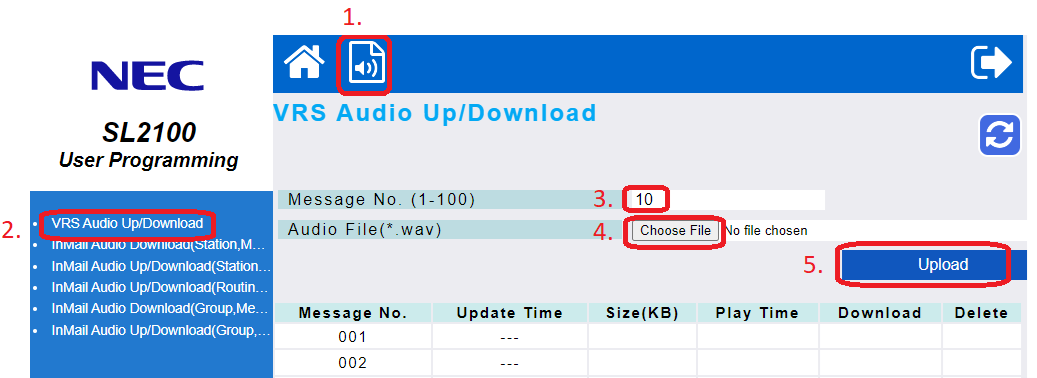

SL2100
Web browse to the system IP address.
Login using UA level access ( default: user1 / 1111 )
Select VRS Icon
Enter message number
Choose File
Upload Music on Hold file

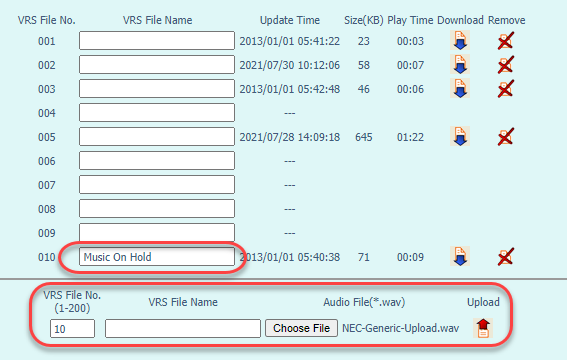

SV9100
Web browse to the system IP address.
Login using UA level access ( default: user1 / 1111 )
Click on VRS Audio Up/Down load
Enter VRS File number
Enter a description ( VRS File Name )
Select file ( Choose File icon )
Select Upload
