NEC - Multiple external Music on hold sources SL2100
NEC Multiple external Music on hold sources SL2100

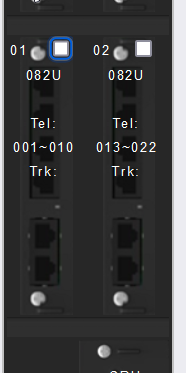

You require 2 082U cards
Use Pins 2,7 on both cards for input

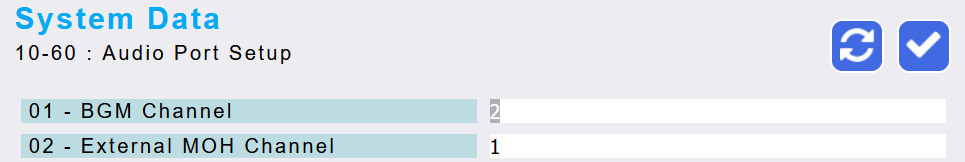

The BGM port is the 2nd 082U card
The Music on hold 1st 082U card

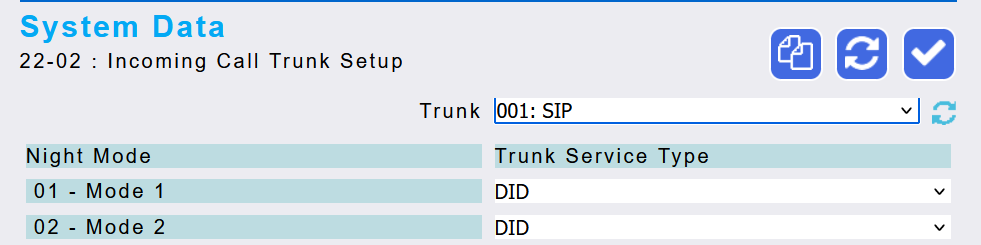

Set Lines to DID 22-02

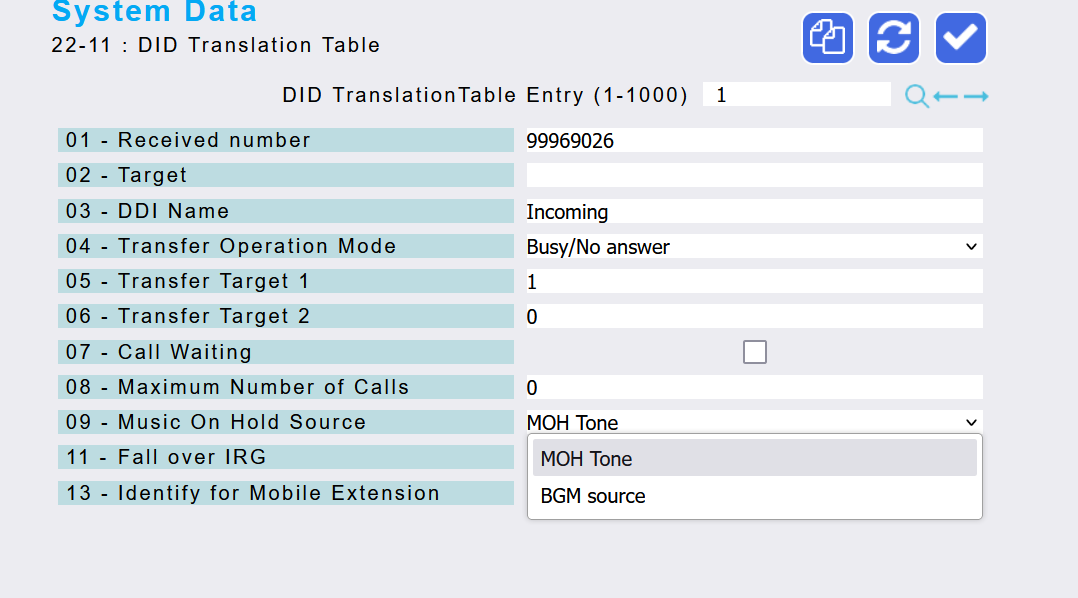

Set the DID translation to either Music on Hold tone or BGM

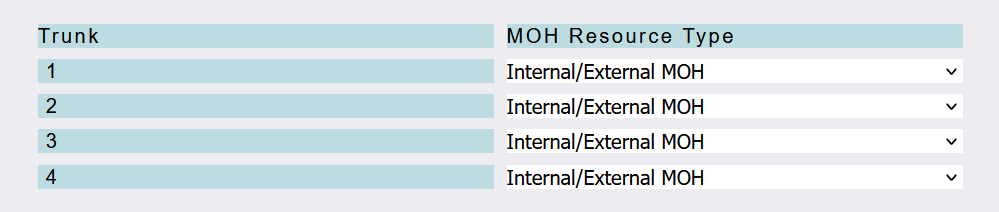

Leave 14-08 as default
