NEC-SL2100 Finding System Information

NEC-SL2100 Finding System Information


CommsPlus Distribution                IconDescription automatically generated

SL2100

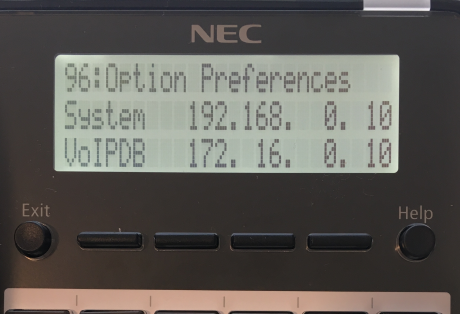

Finding the System IP address:

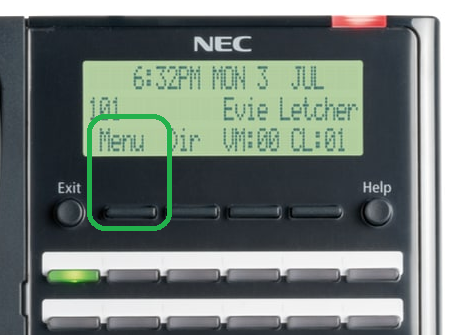

On a Multi Lie phone, using the soft touch keys press Menu, 96 , Select

Be careful if performing this function on an IP extension as the IP phone has a Menu button beside the keypad.

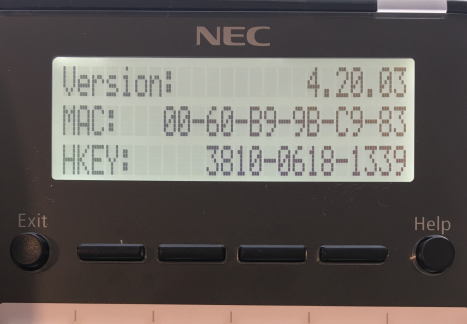

SL2100 Finding the System HWKey - Handset

On a Multi Line handset, using the soft touch keys press Menu, 93 , Select

Be careful if performing this function on an IP extension as the IP phone has a Menu button beside the keypad.


 A picture containing text, indoor, monitorDescription automatically generated

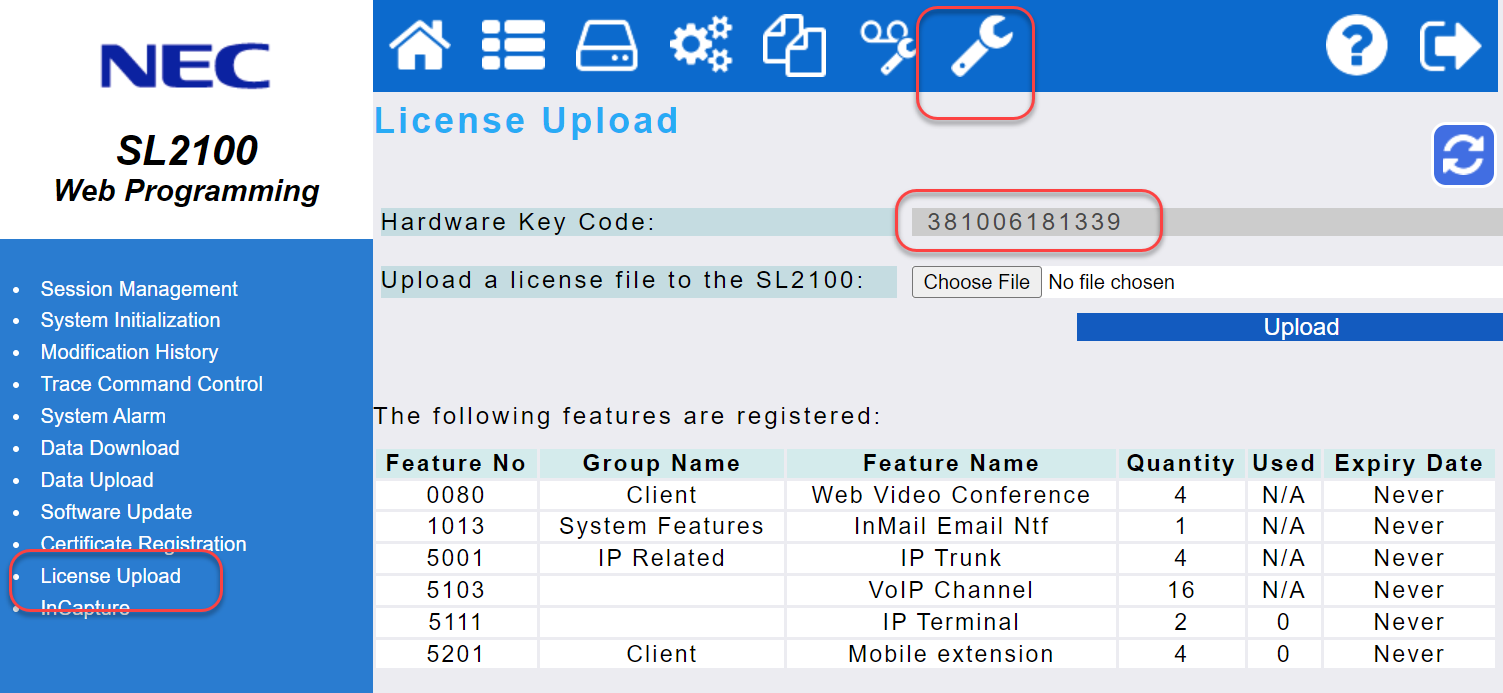

SL2100 Finding the System HWKey – Web interface

Web browse to the SL2100 IP address;

Click on the ”Maintenance” icon ( spanner )

Click on Upload License

Graphical user interface, text, applicationDescription automatically generated

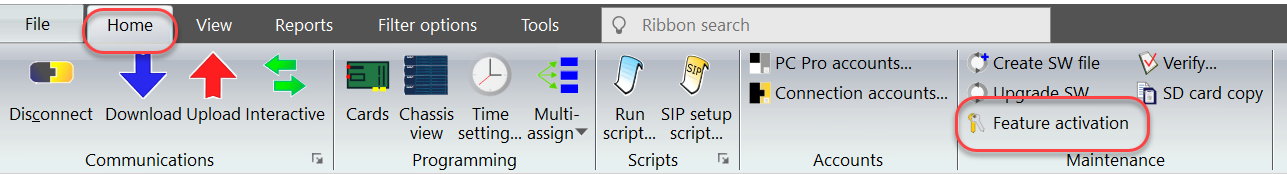

SL2100 Finding the System HWKey – PC Pro

Connect to the NEC SL2100 system via PC Pro, On the home tab select Feature activation


Graphical user interface, applicationDescription automatically generated


SV9100

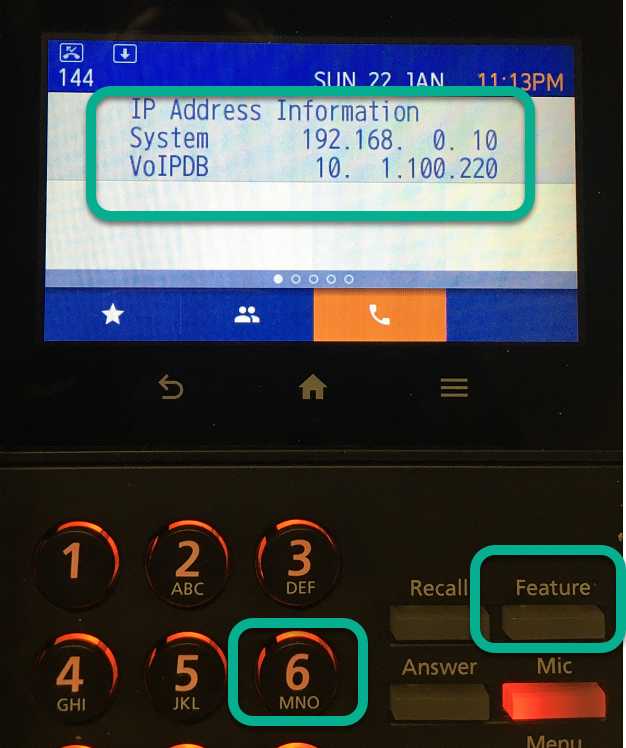

Finding the System IP address:

On a Multi Line handset,

Press Feature 6


SV9100 Finding the System HWKey- Handset

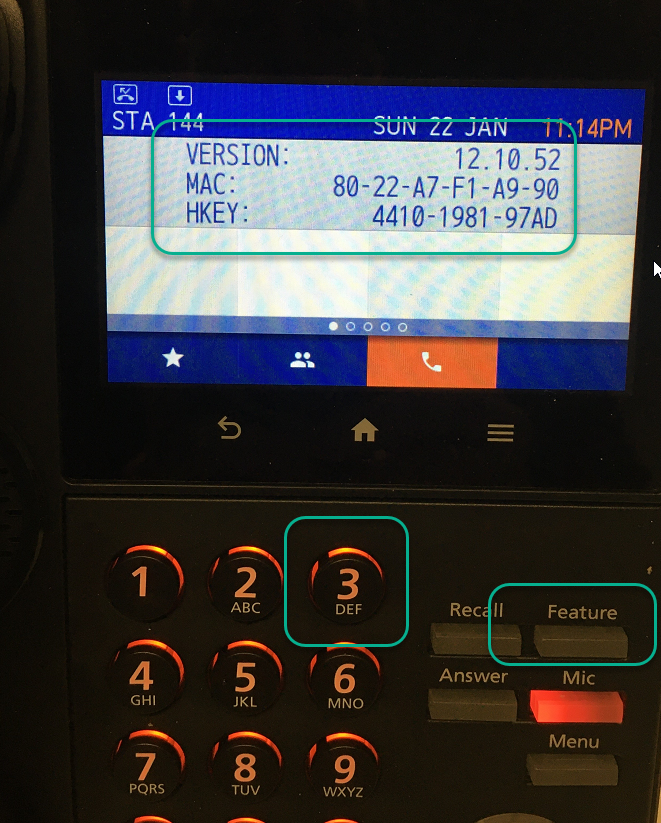

On a Multi Line handset, Press Feature 3

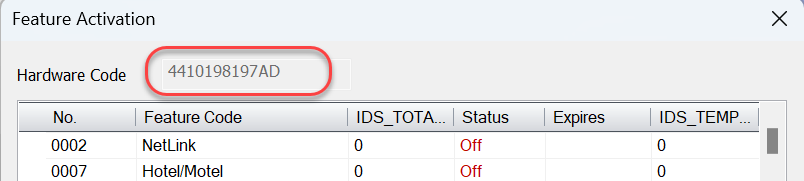

Finding the System HWKey – Web interface

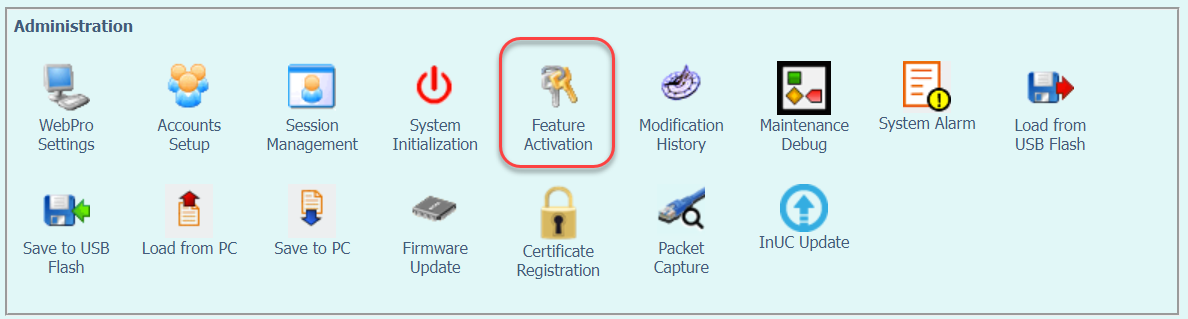

Web Browse to the NEC IP address, Login and select “Feature Activation”

A picture containing timelineDescription automatically generated

TextDescription automatically generated

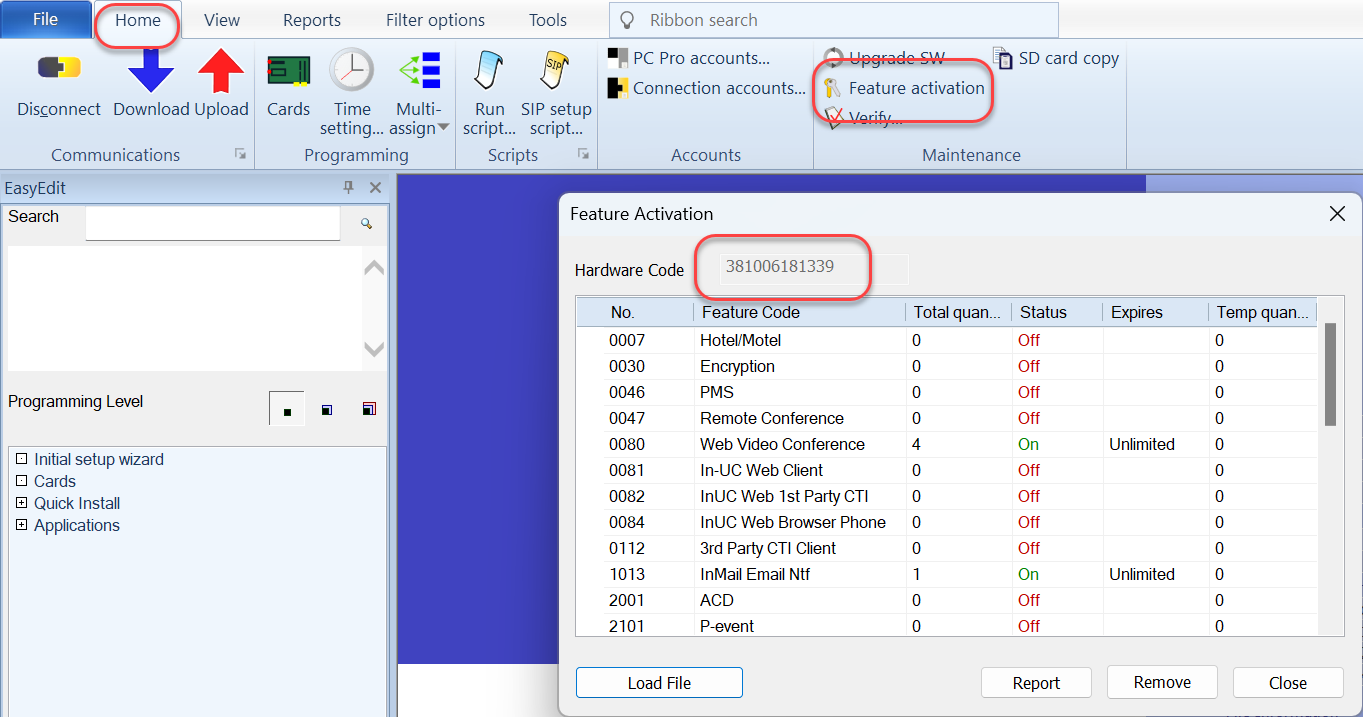

Finding the System HWKey – PC Pro


Connect to the NEC SV9100 system via PC Pro, On the home tab select Feature activation

Graphical user interface, applicationDescription automatically generated

Graphical user interface, application, tableDescription automatically generated
