How to add a Remote IP handset (NEC MLT phone) to a SV9100 / SL2100

Security Warning:

Re-directing UDP ports to a SIP server is dangerous for toll fraud, extreme caution must be used when doing so, refer to SIB 329. In particular:

1. Set 10-46-01 to manual

2. Removing extension numbers that are allocated to “non-equipped” system ports. As ANY one can register new phones to these unequipped ends.    This an be done in 11-02 . remember to keep your inmail extension intact or you will lose inmail

3. DO NOT USE DEFAULT PORT NUMBER OF 5080 & 5081 ( 10-46 area ) ....  set it to 2 sequential ports up high eg 15380 & 15381


SV9100:

SL2100:

Note: for the SV2100 VOIPDB is only required if you need to exceed 8 VoIP channels

System Programming:

PRG 10-12-09    Valid IP address on the customers network

RRG 10-12-10    Subnet mask that matches the customers network

PRG 84-26-01    Valid IP address on the customers network ( by convention, one IP above 10-12-09 )

PRG 10-46-01    Register Mode set to Manual ( this turns all handset into Hot Desk /secure mode  )

Internet Router Configuration

Redirect UDP ports on a 1:1 mapping

UDP port range 5080 to 5081 to the IP address assigned in 10-12-09

UDP port range 10020 to 10531 to the IP address assigned in 84-26-01

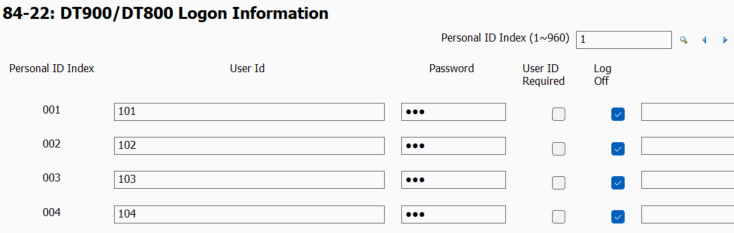

Assign Username / password to an index ID

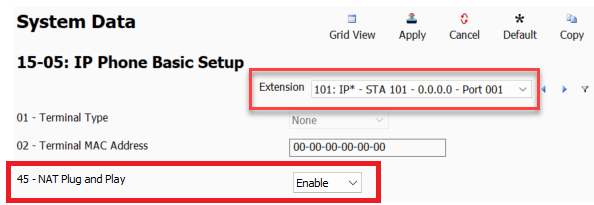

Assign each login to a system extension port in PRG 15-05-27

This feature is only available using PC Pro, HTTP access will only show extensions that have physical hardware attached ( Analogue blade , Digital blade or ports with a MAC address assigned )

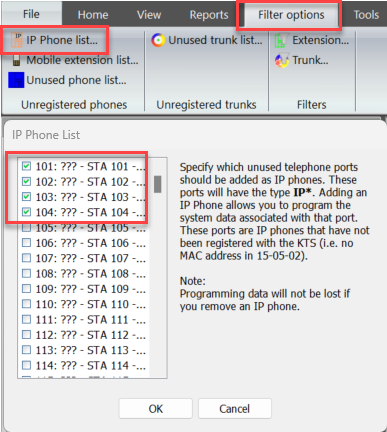

In order to see “Unregistered” extension ports you must allow them to be viewed:

Filter options > IP Phone list > Select unused extension ports

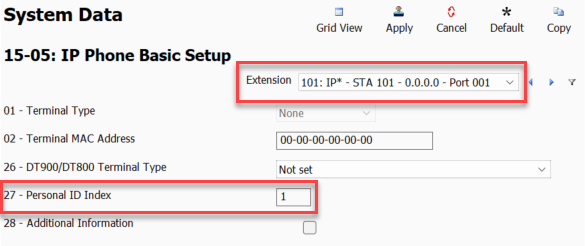

Assign an Index to an extension port

Handset configuration:

Access web interface to IP handset

( to find IP address hold down the Help/Home button , 2-System Information, 1-Network settings )

Login using ADMIN / 6633222

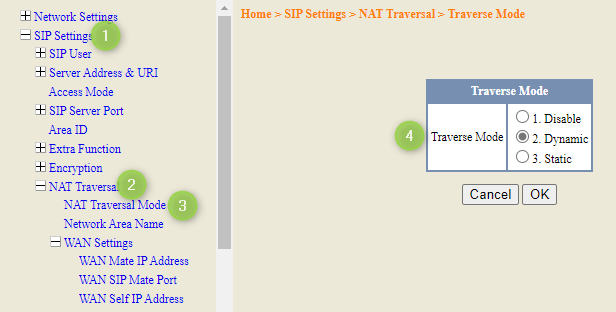

Set the handset to “Remote”

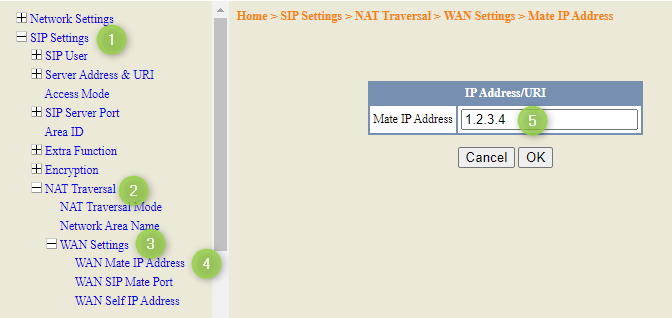

Assign the phone system IP address

Note:  1.2.3.4 is the public IP address of the Internet connection ( assigned in 10-12-07 )

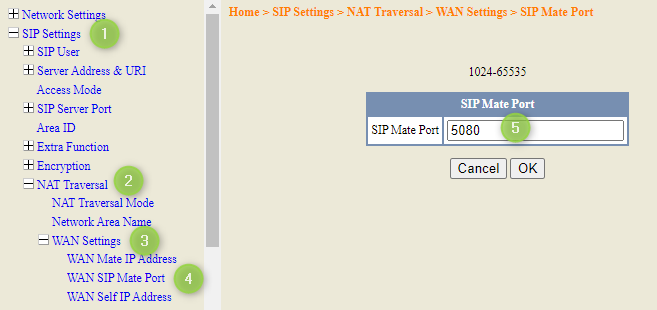

Assign the UDP port number
