How to add an IP handset ( NEC MLT phone ) to a SV9100 / SL2100

( Hot Desk )

Hardware / License  required:

SV9100:

	Quantity	Description
SV9100 CPU	1	System
GPZ-IPLE	1	VoIP Media card to convert RTP packets
BE114054-CP20	Per IP phone	SV9100 IP PHONE-01 LIC

SL2100:

	Quantity	Description
SL2100 System	1	System
IP7WW-VOIPDB-C1	?	VoIP Media card to convert RTP packets
BE116746	Per IP phone	Exceptions: IP7WW8IPLD-C1 handsets (not required)

Note: for the SV2100 VOIPDB is only required if you need to exceed 8 VoIP channels

System Programming:

PRG 10-12-09    Valid IP address on the customers network

RRG 10-12-10    Subnet mask that matches the customers network

PRG 84-26-01    Valid IP address on the customers network ( by convention, one IP above 10-12-09 )

PRG 10-46-01    Register Mode set to Manual ( this turns all handset into Hot Desk mode )

Set up all handsets with a user name and password

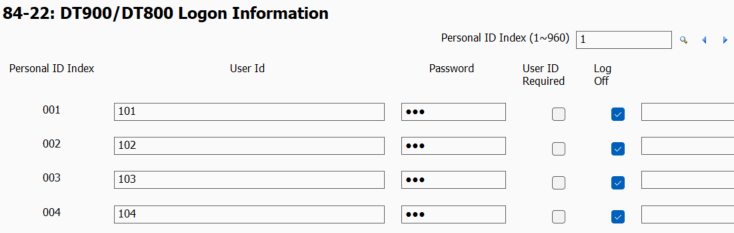

PRG 84-22

Assign Username / password to extension port

This feature is only available using PC Pro, HTTP access will only show extensions that have physical hardware attached ( Analogue blade , Digital blade or ports with a MAC address assigned )

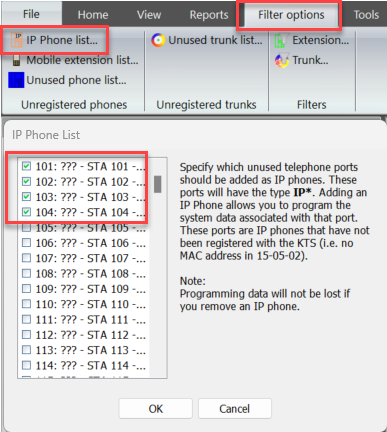

In order to see “Unregistered” extension ports you must allow them to be viewed:

Filter options > IP Phone list > Select unused extension ports

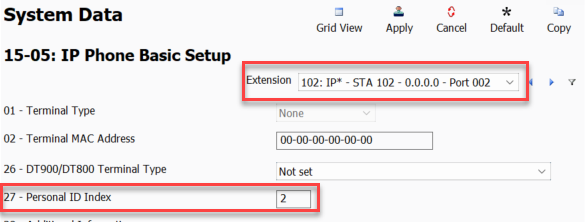

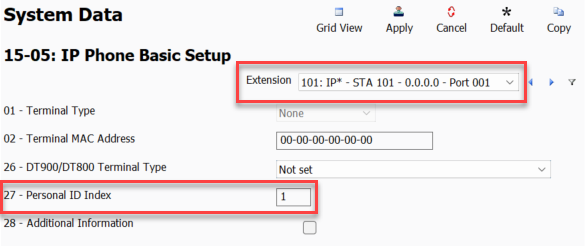

Assign each login to a system extension port in PRG 15-05-27



Handset configuration:

Connect the IP handset to the customers network

The handset must be on the same layer2 network as the system or be on a “Routable” subnet, not on a remote “NAT”ed network ( see remote terminal document )

You have 3 options to configure the NEC IP MLT terminals

DHCP options ( not covered in this document )

Access web interface to IP handset

( to find IP address hold down the Help/Home button , 2-System Information, 1-Network settings )

Login using ADMIN / 6633222

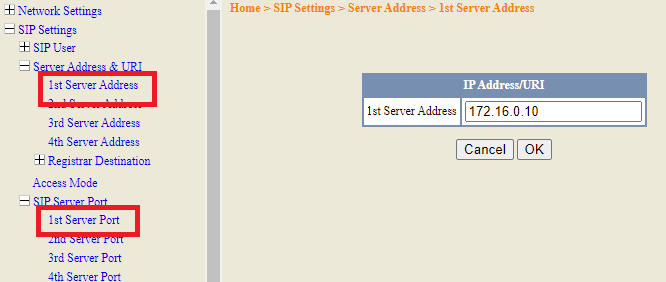

two settings are mandatory;

IP address assigned in PRG 10-12-09 ( 1st SIP Server )

5080 ( 1st Server Port ) , unless changed on the NEC system



Access IP handset programming

Press Menu , 0 ( Menu KEY, not Menu on the screen )

ADMIN / 6633222

Tip :  Menu  - Maintenance  Settings – Data Clear – Factory  (handset 3-3-1 )

Will default an IP handset for you.

To log in to your handset;

At the following prompt on your handset:

Enter your extension number

Press SET

Enter your password

Press OK

To log off your handset;

Press ↓

Press Prog

Press ↓

Press LOG OFF

Press Yes

Press Exit

When 10-46-01 is set to Manual, ALL HANDSETS are "HotDesk" and require credentials upon bootup

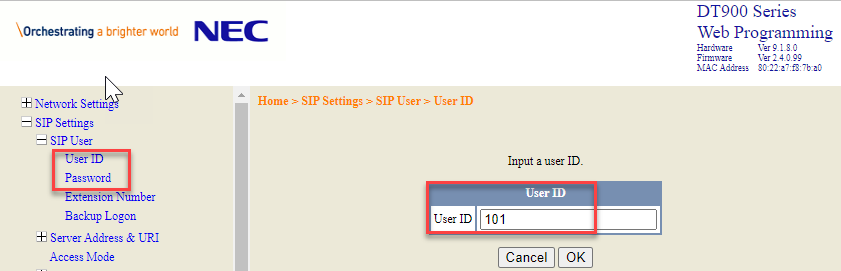

Set default credentials for handsets that don’t require login/logout feature, set in handset configuration:
