NEC SV9100 SL2100 Adding an MLT IP handset - basic method
How to add an IP handset ( NEC MLT phone ) to a SV9100 / SL2100
Hardware / License required:
SV9100:
SL2100:
Note: for the SV2100 VOIPDB is only required if you need to exceed 8 VoIP channels
System Programming:
PRG 10-12-09 Valid IP address on the customers network
RRG 10-12-10 Subnet mask that matches the customers network
PRG 84-26-01 Valid IP address on the customers network ( by convention, one IP above 10-12-09 )
Handset configuration:
Connect the IP handset to the customers network
The handset must be on the same layer2 network as the system or be on a “Routable” subnet, not on a remote “NAT”ed network ( see remote terminal document )
You have 3 options to configure the NEC IP MLT terminals
DHCP options ( not covered in this document )
Access web interface to IP handset
( To find IP address hold down the Help/Home button , 2-System Information, 1-Network settings )
Login using ADMIN / 6633222

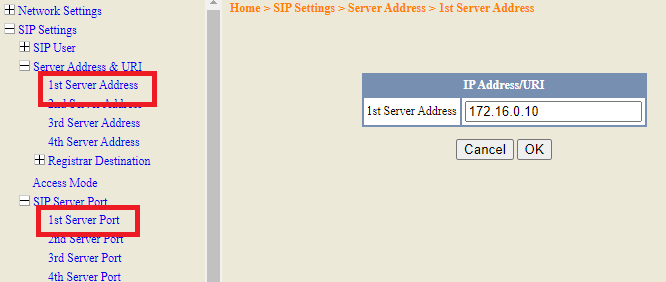

Two settings are mandatory;
IP address assigned in PRG 10-12-09 ( 1st SIP Server )
5080 ( 1st Server Port ) , unless changed on the NEC system
Access IP handset programming
Press Menu , 0 ( Menu KEY, not Menu on the screen )
ADMIN / 6633222
Tip : Menu - Maintenance Settings – Data Clear – Factory (handset 3-3-1 )
Will default an IP handset for you.
