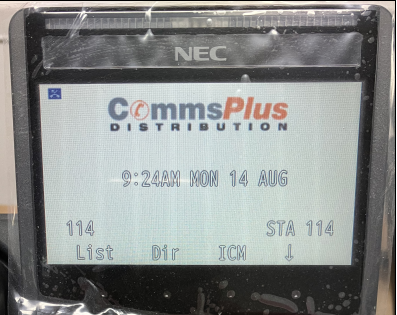

Add custom image to DT900 handset


This is a handset feature, not a system wide feature. This means that each handset needs to be done individually,

You need a TFTP server on site ( Pumpkin tested )

Image:

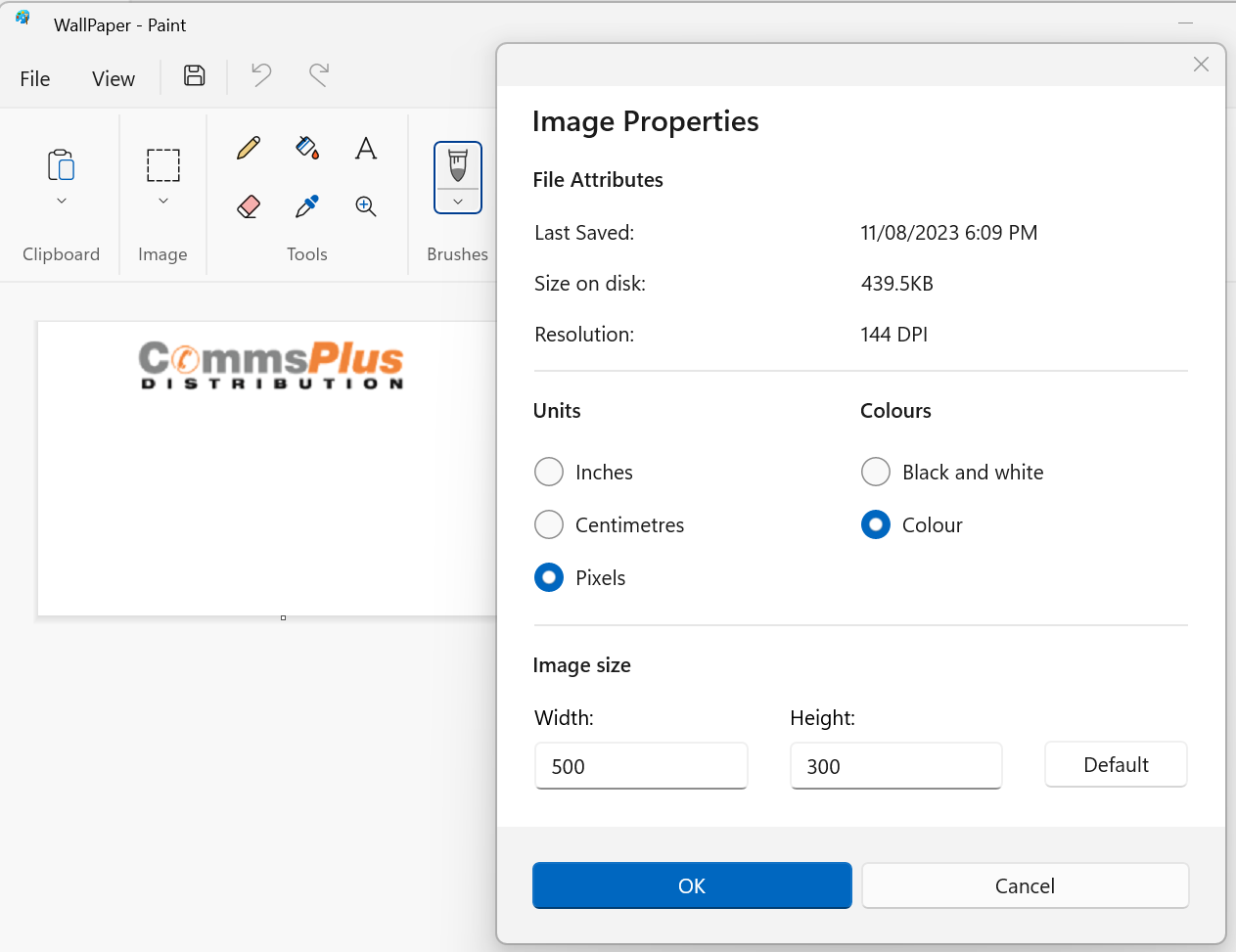

Prepare your image , must be called WallPaper.BMP

A screenshot of a computerDescription automatically generated

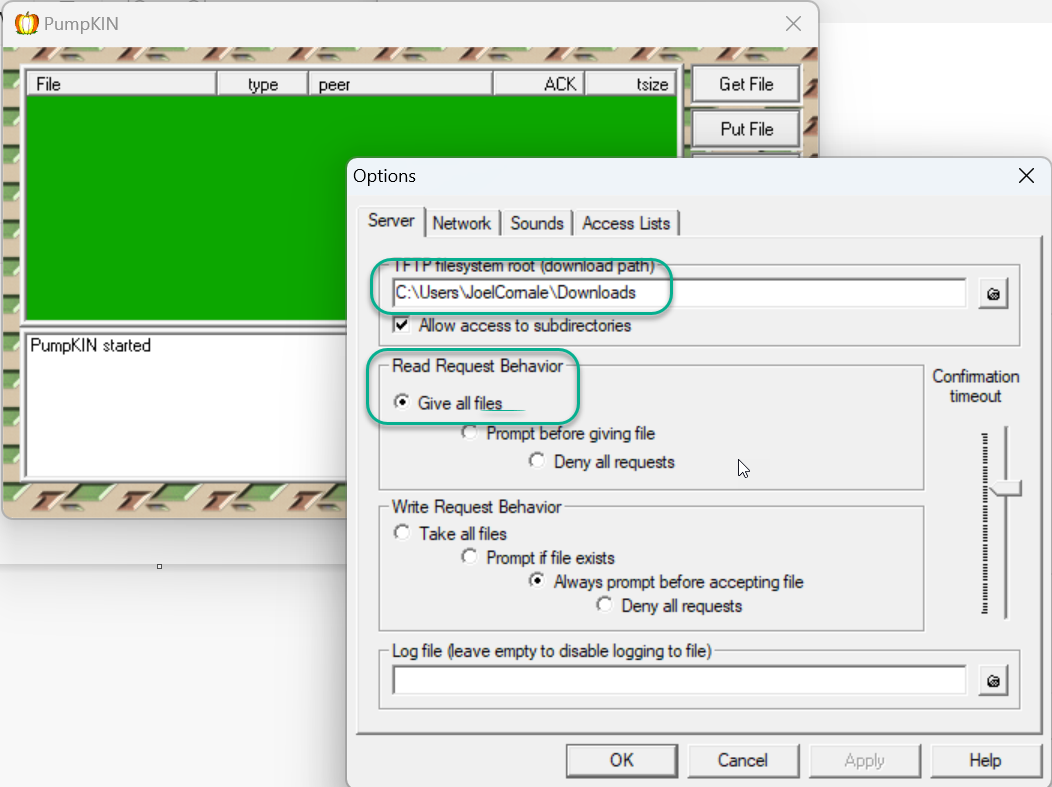

TFTP server config:

Place >BMP file in the TFTP root directory, allow all requests

On DT900 handset

With handpiece down:

Press:

  1. Menu
  2. 4 ( settings )
  3. 2 ( Download )
  4. 2 ( Download Address )
  5. Enter IP address of TFTP server
  6. OK
  7. 3 ( Protocol )
  8. 2 ( TFTP )
  9. OK
  10. 1 ( File )
  11. 4 ( Wallpaper )
  12. EXEC
  13. Back , Back , Back …. to MENU
  14. 1 ( Settings )
  15. 1 ( User Settings )
  16. 3 ( Display )
  17. 7 ( Advanced )
  18. 1 ( Wallpaper )
  19. 2 ( Download )
