Yeastar - Manual Register Polycom Handset - Trio 8800
Manual Register Polycom Handset - Trio 8800
The following guide was built using Polycom handset and used to provision a Trio 8800
Handset Access - Login
1. Login onto device via IP Address
2. Default PW = 456
Line Configuration
Once logged in
1. At the top navigation bar, go to Settings -> Lines.
2. Select a Line 1 and complete the following settings.
In the Identification section, enter the basic information of the extension.
• Display Name and Address: Enter the extension number.
• Label: Enter the name associated with the account, which will be displayed on the phone screen.

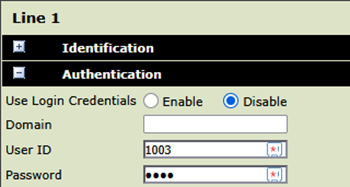

In the Authentication section, enter the registration information of the extension. (captured from extension with Yeastar)
• User ID: Enter the registration name of the extension.
• Password: Enter the registration password of the extension.

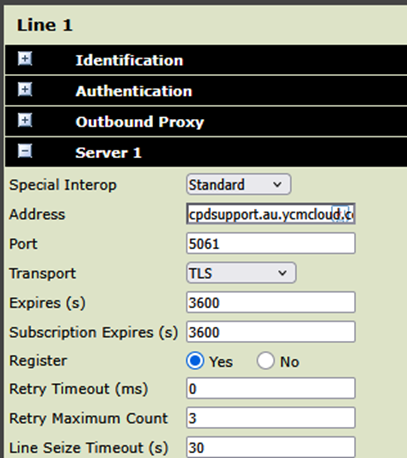

In the Server 1 section, enter the PBX information.
• Special Interop: Select Standard.
• Address: Enter the IP address / domain name of the PBX. My example = cpdsupport.au.ycmcloud.com
• Port: Enter the SIP registration port of the PBX. (5061 if using TLS) RECOMMENDED
• Transport: Select the transport protocol of the extension.
Ensure TLS is activated on PBX and Extension in Yeastar

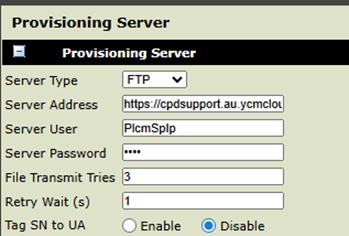

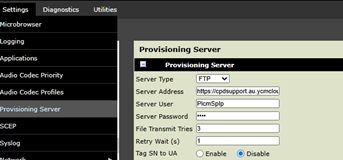

At the top navigation bar, go to Settings -> Provisioning Server
• Server Address: Enter full URL of provisioning server (Obtained from Yeastar) Within this example: https://cpdsupport.au.ycmcloud.com:443/api/autoprovision/yywZnF79d8Qy6Fgsd

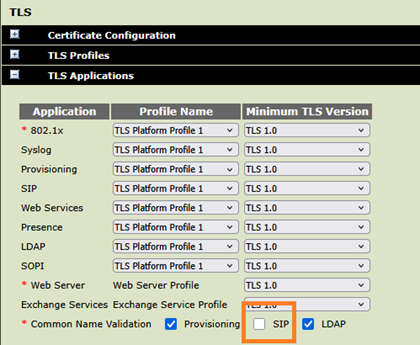

At the top navigation bar, go to Settings -> Network -> TLS -> TLS Applications and Within area “Common Name Validation” Uncheck SIP
At the bottom of the webpage, click Save.

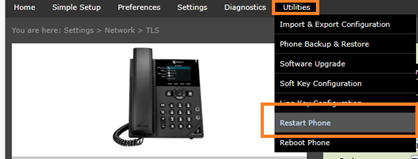

Go to navigation bar Utilities -> Restart phone
Device will reboot, you can see
displayed at the extension account
on the phone screen if provision has occurred successfully.
