How to Register a Yealink Handset on Yeastar Cloud PBX Using Yealink RPS

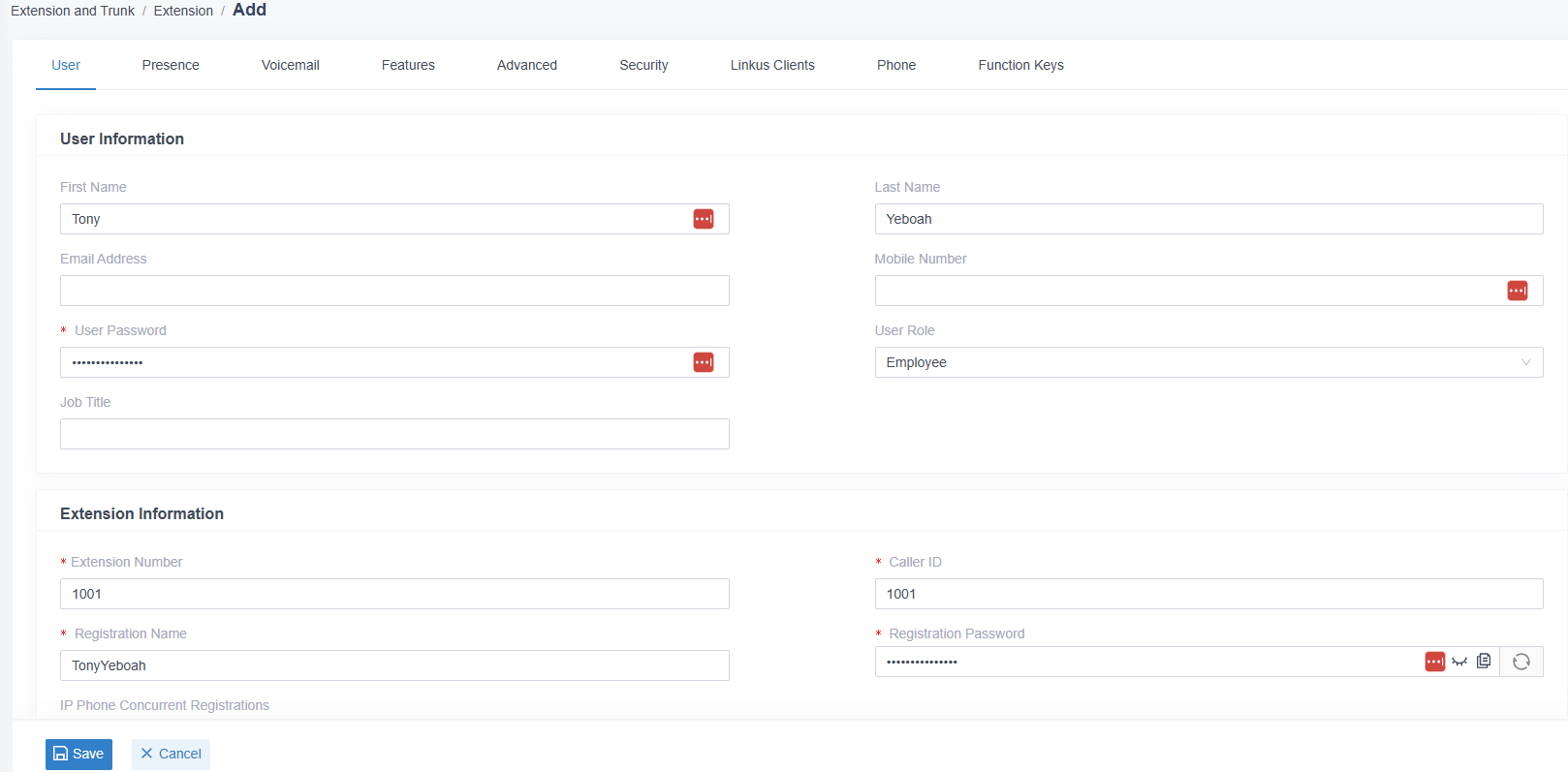

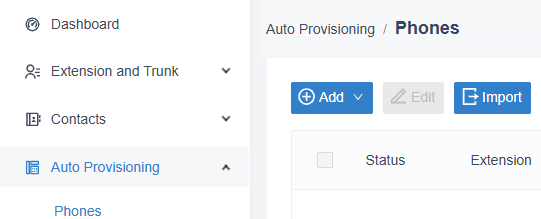

Select Extension and Trunk – Extension – Add

Select Save

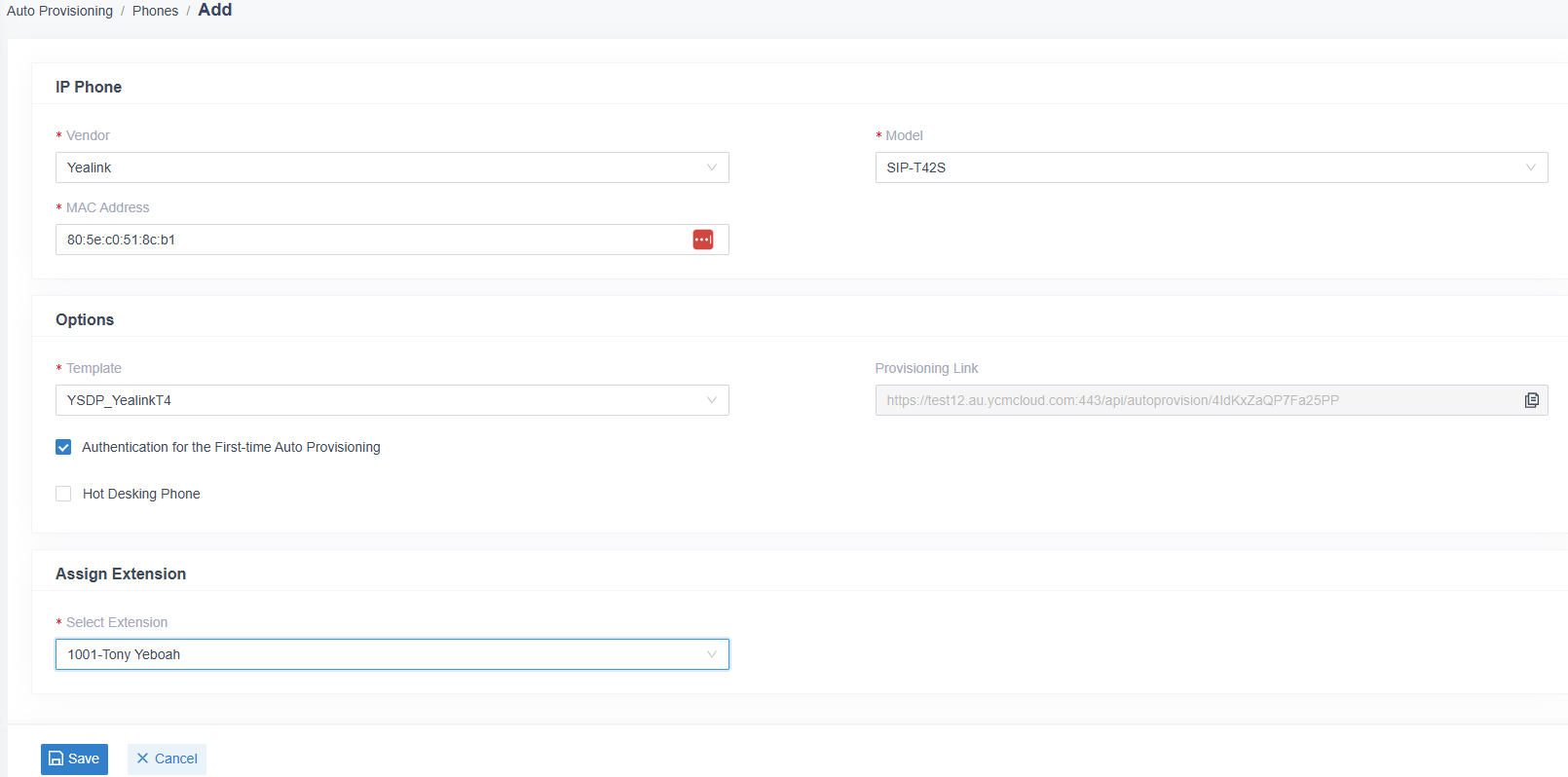

Select Yealink as the Vendor

Select your handset model

Enter the MAC address of the phone (label on back of phone)

Select the template

Select the Extension

Copy the Provisioning Link and save it somewhere

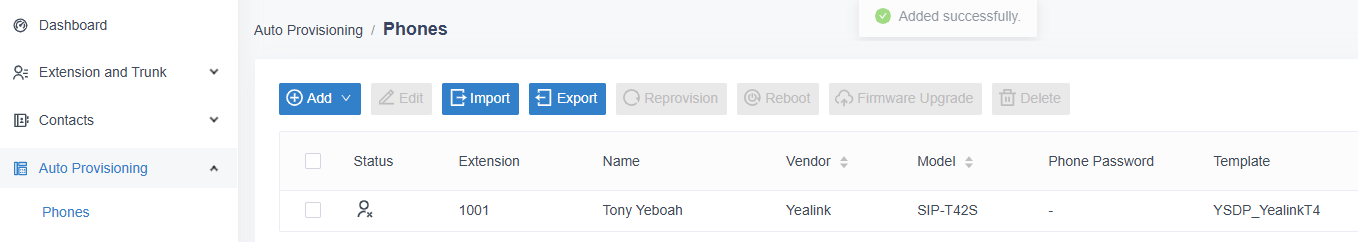

Select Save

Access the Yealink RPS

https://au.ymcs.yealink.com/manager/login

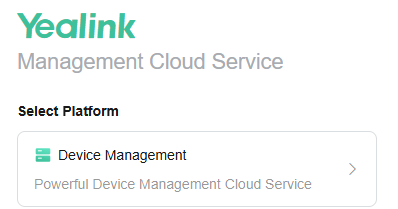

Login and select Device Management

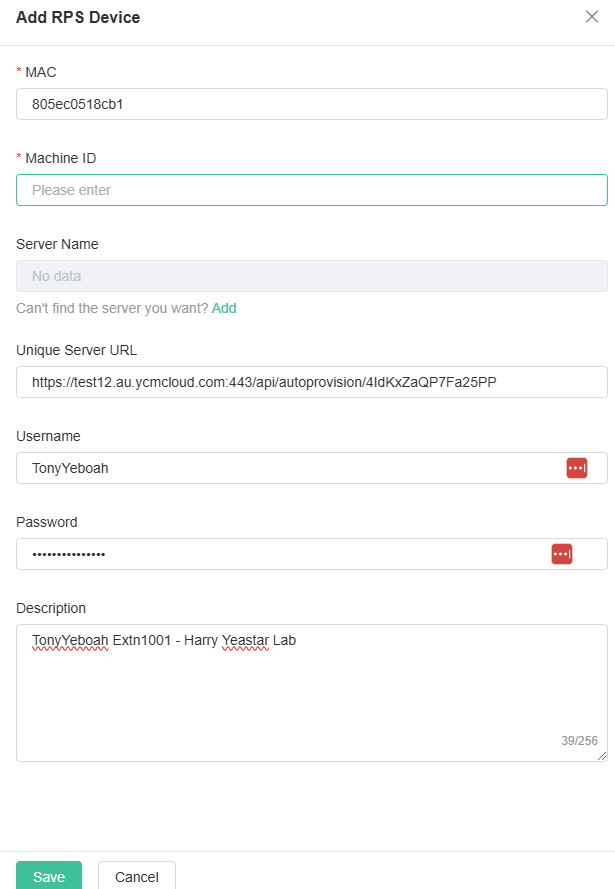

Enter the details required

MAC (label on phone)

Machine ID (label on phone)

Unique Server URL (copied when creating the Auto Provisioning in Yeastar)

Username of the Extension created in Yeastar

Password of the Extension created in Yeastar

Select Save

If brand new, allow the handset to obtain an IP address on the network and contact the Yealink RPS server to match the Device and login as the User/Extension

If the handset is already configured for another pbx, select Menu – Settings – Advanced Settings

Enter the password: admin

Select OK

Scroll down to Reset Config and select Enter

Select Reset to Factory Settings and select Enter

Select OK to the prompt Reset to Factory Settings?

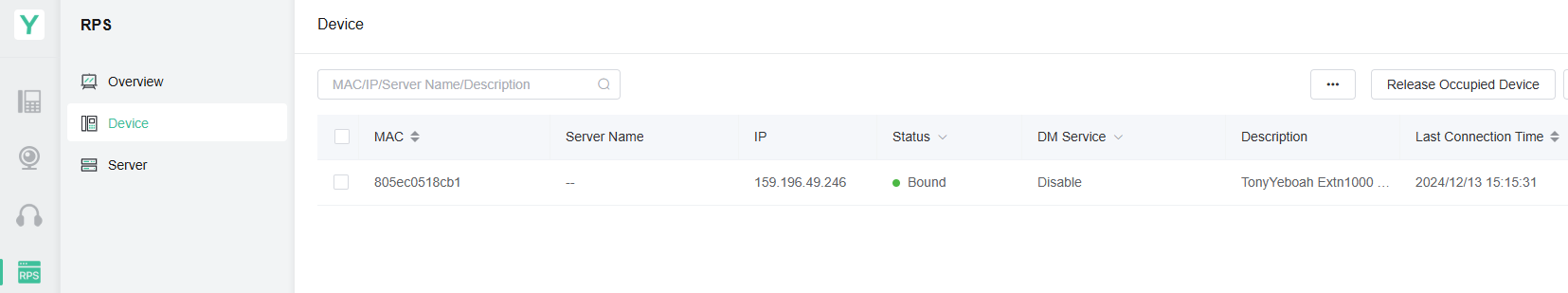

Refresh the RPS and the Status should show as Bound

Select the Dashboard in the Yeastar Cloud PBX

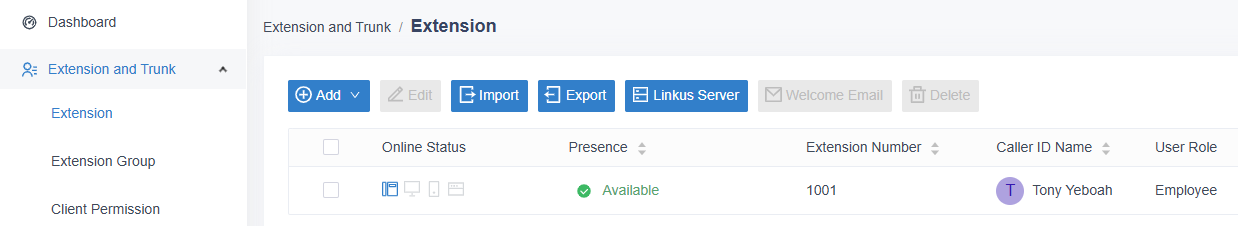

It will show the extension is registered

Confirm the phone symbol is displaying an Online Status

If the handset has not registered

1. Confirm that you selected apply in the Yeastar Cloud PBX (top right)
2. Select Maintenance – Troubleshooting – Ethernet Capture Tool – Start

Then restart the handset, to allow it to register again, once the phone is on and showing No Service on the screen Stop the capture, download and use wireshark to view the SIP traffic
