Yeastar Disaster Recovery Setup

When the system is ordered (disaster recovery will be added as an additional license

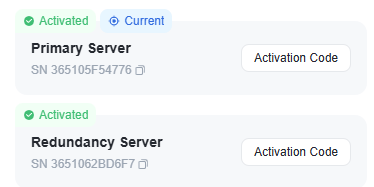

Once ordered you will be provided with two Activation Codes (example below)

Deploy the Primary Server then deploy the Redundancy Server (using the correct Activation Code for each)

Once done, upgrade both servers to the latest firmware (this needs to match)

Note, when you accessed the Redundancy Server the below message will show

Follow the guides below to setup the SD-WAN and Disaster Recovery

Set up SD-WAN Network on Working Server

https://help.yeastar.com/en/p-series-software-edition/administrator-guide/set-up-sd-wan-remote-network-on-working-server.html

Join SD-WAN Network on Redundancy Server

https://help.yeastar.com/en/p-series-software-edition/administrator-guide/join-sd-wan-remote-network-on-redundancy-server.html

Set up Disaster Recovery (Yeastar SD-WAN)

https://help.yeastar.com/en/p-series-software-edition/administrator-guide/set-up-disaster-recovery-yeastar-sd-wan.html

Example Screen shots below

SD-WAN PBX Networking

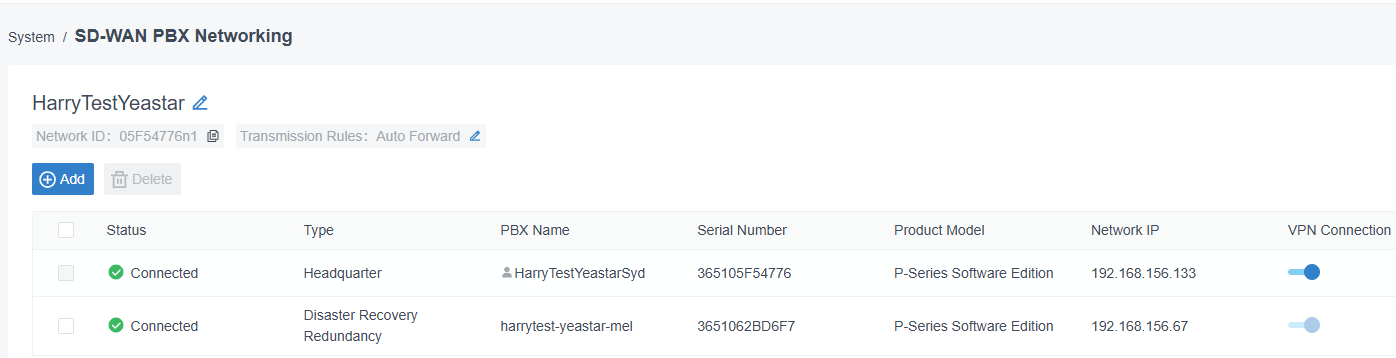

Primary Server

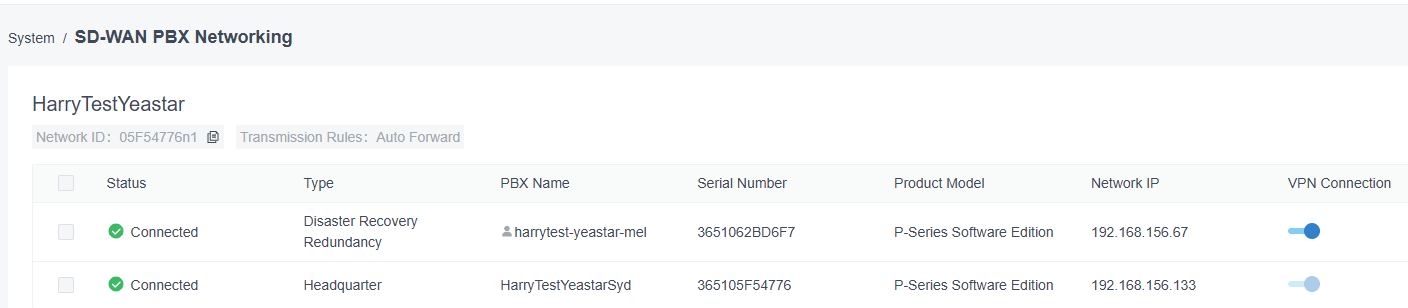

Redundancy Server

Disaster Recovery

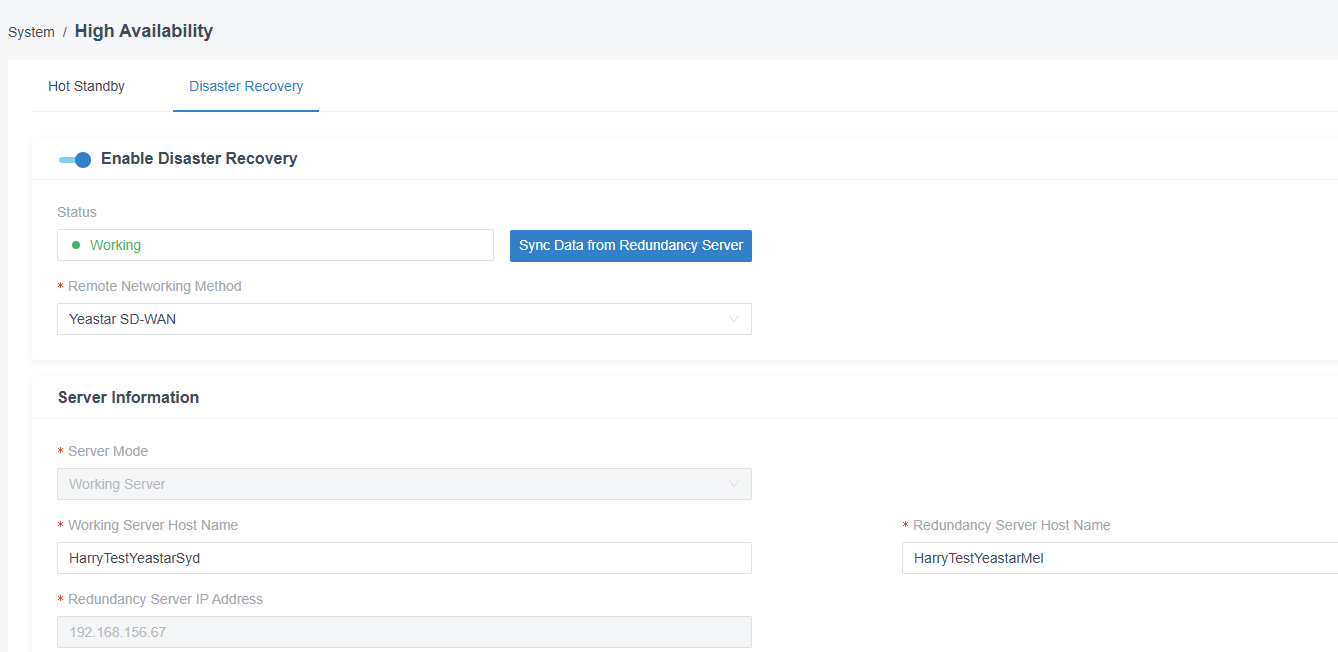

Primary Server

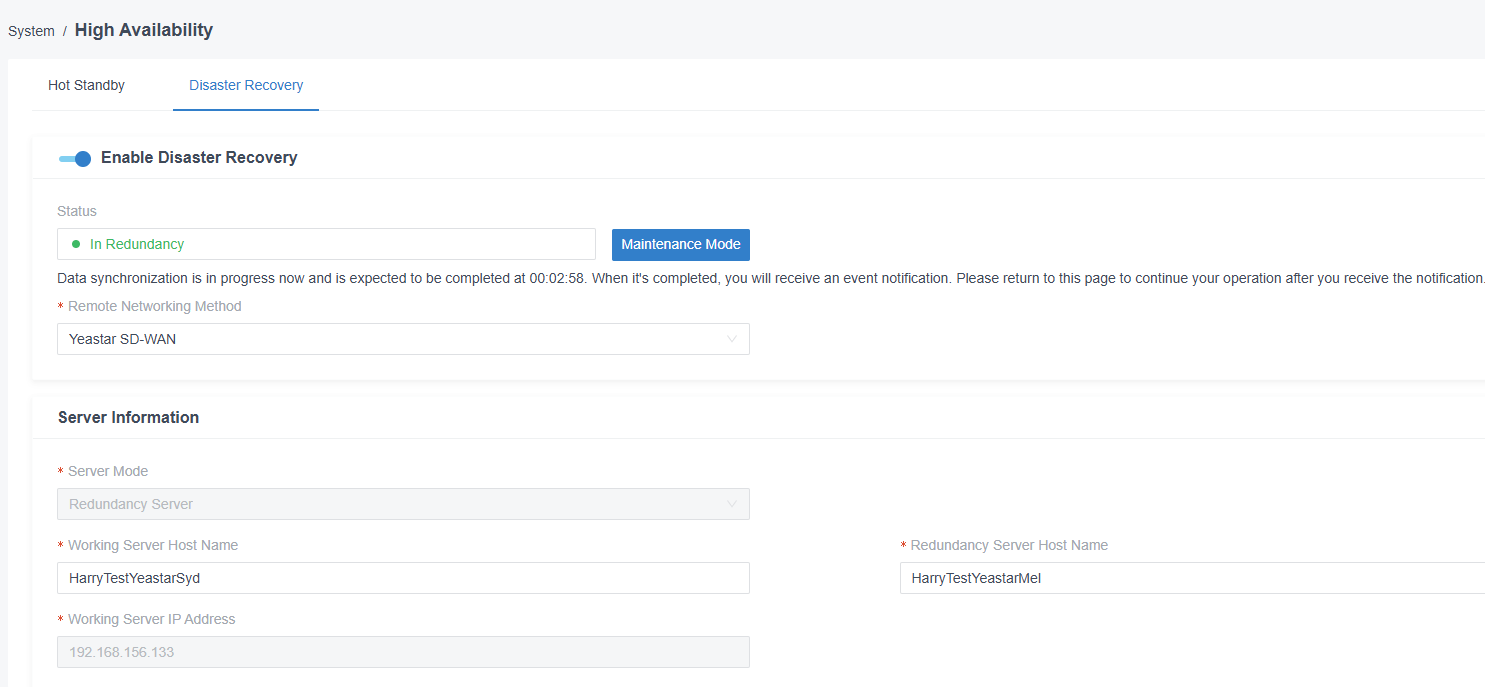

Redundancy Server

Save and Reboot

Check the Redundancy Server Disaster Recovery

Confirm it shows In Redundancy

If not and shows Abnormal – reboot the Primary

Server Redundancy (Yeastar SD-WAN) on SIP Devices and Linkus UC Clients

Read the below regarding devices using the redundancy server

https://help.yeastar.com/en/p-series-software-edition/administrator-guide/server-redundancy-yeastar-sd-wan-on-sip-devices-and-linkus-uc-clients.html

To Test the Disaster Recovery

Power off the Primary Server and wait 2 minutes

The SIP Phones, SIP trunks and Linkus Client Apps should register to the Redundancy Server

Make test calls to confirm all working

When you login to the FQDN you will see the message below

Redundancy Server has now taken over the PBX system. Please note that some feature configuration changes will only apply to this server and will not be synchronized back to the Working Server. Check the user guide to learn more details.

Restoring to Primary Server

When finished testing, Power on the Primary Server

Access the Primary Server via the Public IP (not the FQDN)

Select System – High Availability – Disaster Recovery

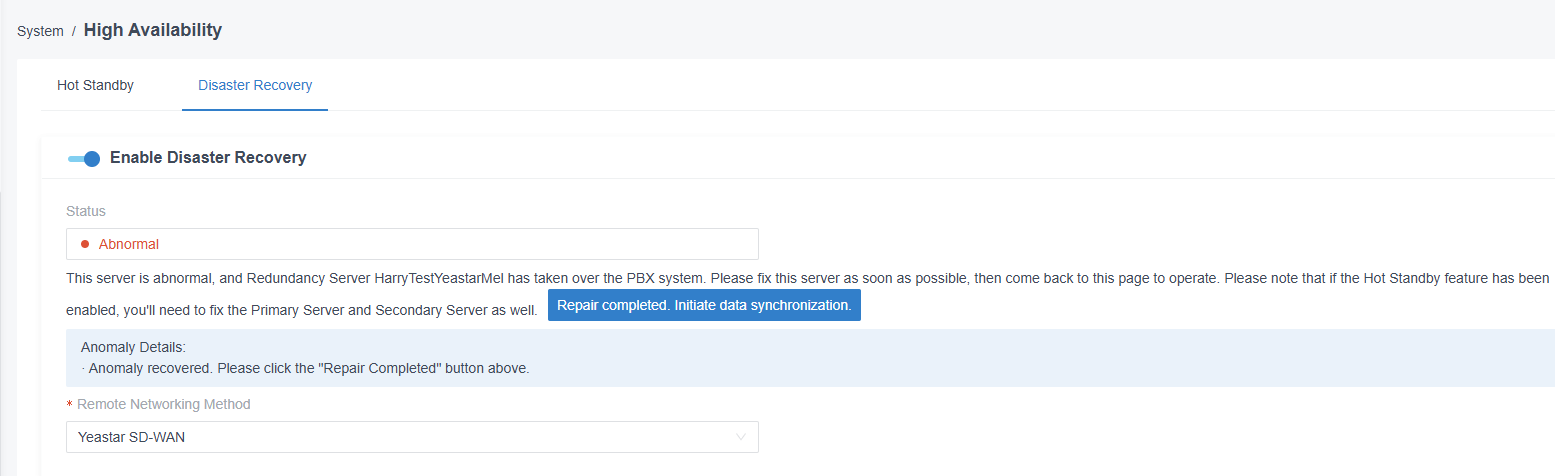

If an option, select Repair Completed. Initiate Data Synchronization

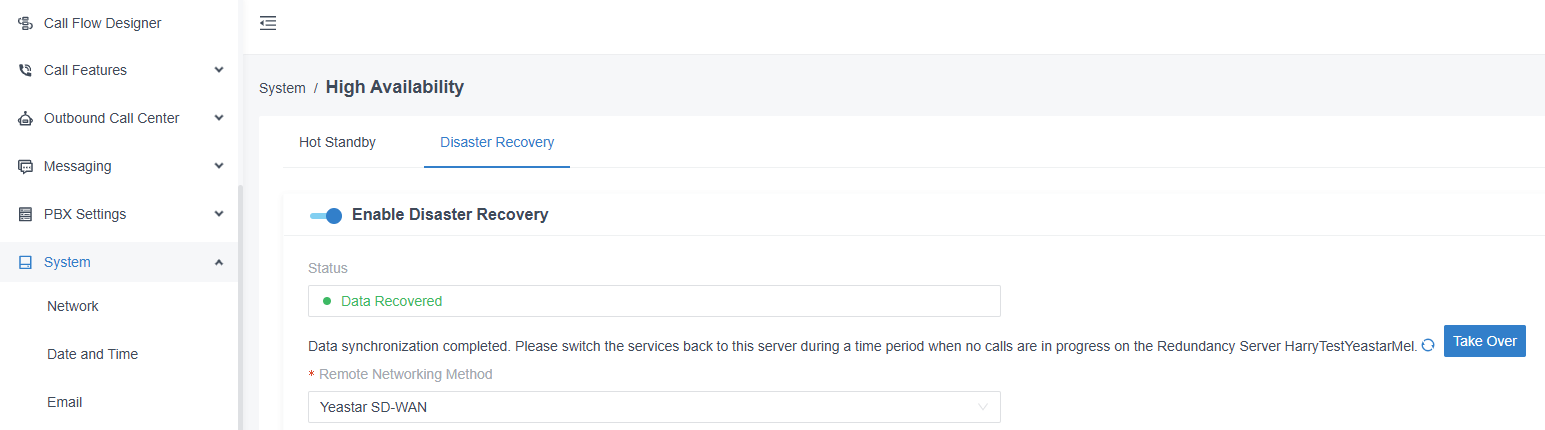

When ready, select Take Over

Select OK

Check the phones are registered (if not they will need to be rebooted)

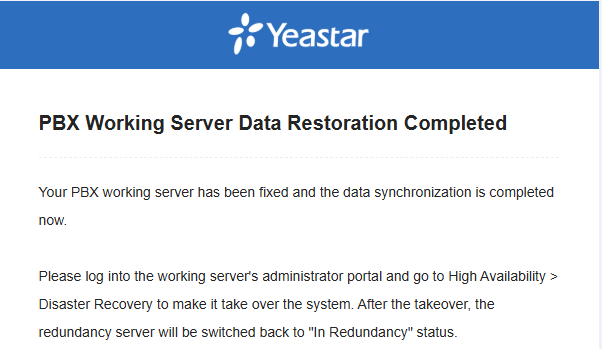

Example of email notification
