TPGTrunk guide for SV9100 / SL2100 – Registration method

Pre-requisite:

SIP ALG disabled on the customers router

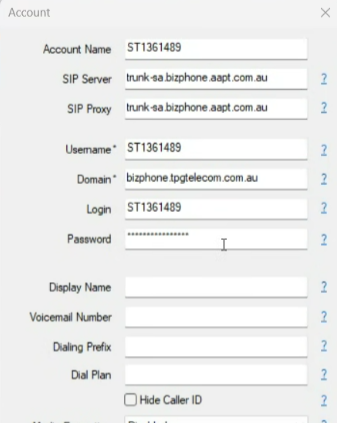

Check SIP trunk credentials using a soft phone app, this will save a lot of time.

Hardware / License required:

SV9100:

Note: for the SV2100 VOIPDB is only required if you need to exceed 8 VoIP channels

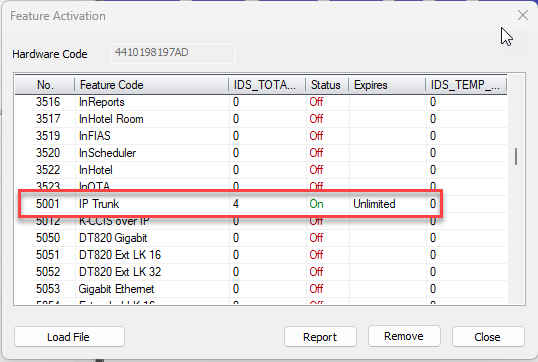

BE116745 appears as a 5001 Lic on the system

System Programming:

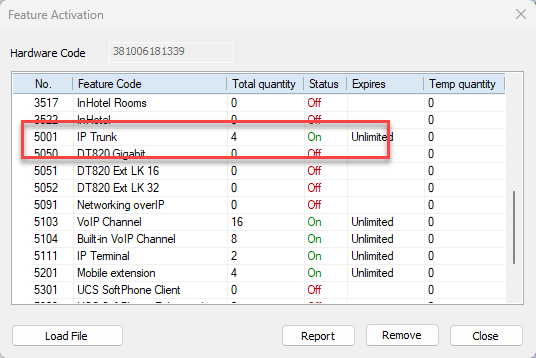

Check for enough VoIP resources ( 1 per trunk for Non IP terminal systems, 2 per trunk for IP terminal systems.

PRG 10-12-09    Valid IP address on the customers network

RRG 10-12-10    Subnet mask that matches the customers network

PRG 84-26-01    Valid IP address on the customers network ( by convention, one IP above 10-12-09 )

PRG 10-68-01    SIP trunk Type / Start port & number of ports

Be careful this doesn’t conflict with any COT / ISDN trunk cards

10-67-01 Turn DNS mode on

10-67-02 enter a valid DNS server

10-28-01 Domain name eg  tpgtelecom.com.au

10-28-02 Host name eg  bizphone

( 01&02 together build a FQDN )  bizphone.tpgtelecom.com.au

10-28-05 Domain Assignment Domain Name

10-28-03 TPG support both TCP and UDP as the transport protocol

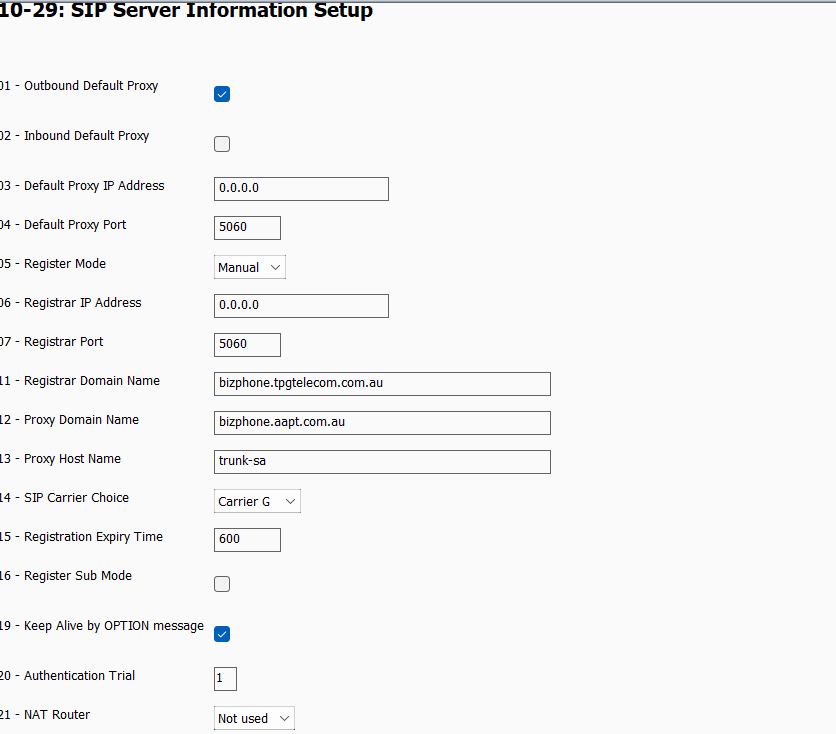

10-29-01 Outbound default proxy Enable

10-29-05 Register Mode Manual

10-29-11 Registrar Domain Name   eg   bizphone.tpgtelecom.com.au

10-29-12 Proxy Domain Name eg  bizphone.aapt.com.au

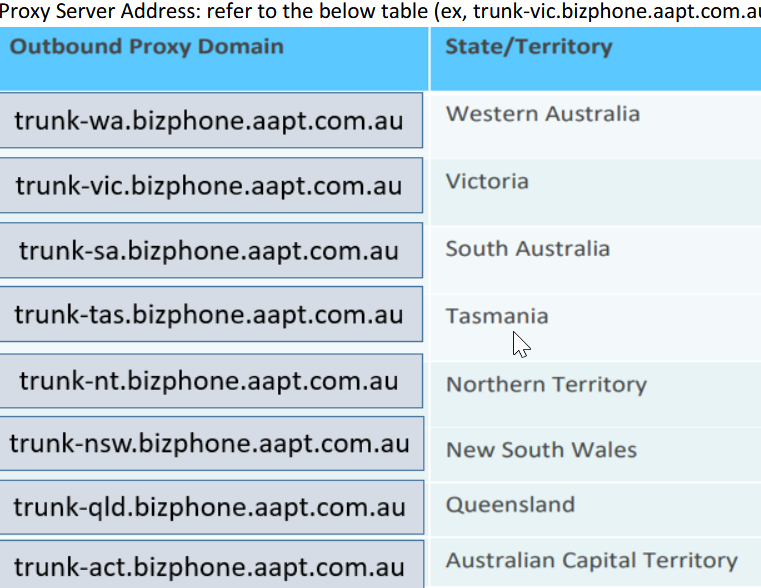

10-29-13 Proxy Host Name eg  trunk-sa (state based host name ,see below )

( 12&13 together build a FQDN )  trunk-sa. bizphone.aapt.com.au

10-29-14 SIP Carrier Choice Use “Carrier G”

10-29-16 Sub Register Mode Disable

10-36 enter Credentials

21-17 put Clip ID against the trunks

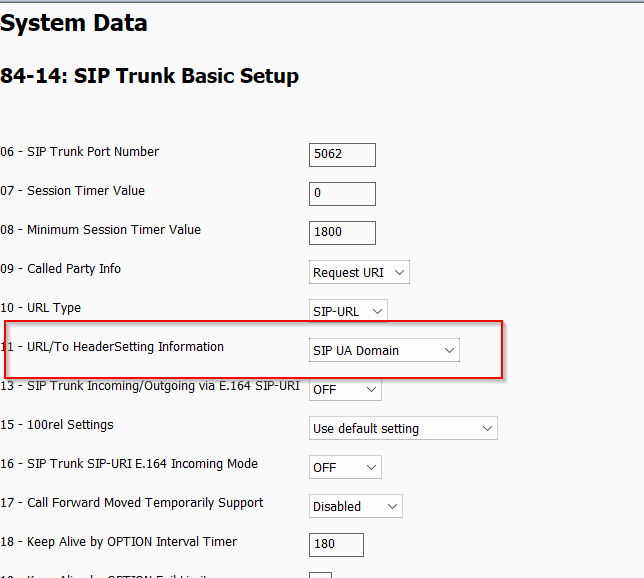

84-14-11 SIP UA Domain

84-13

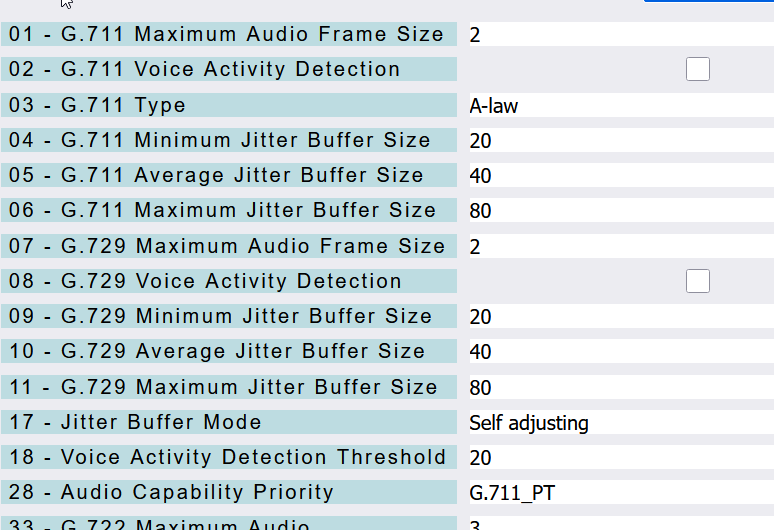

Confirm frame sizes
