Telstra Enterprise SIP Trunks

Pre-requisite:

SIP ALG disabled on the customers router

Hardware / License required:

SV9100:

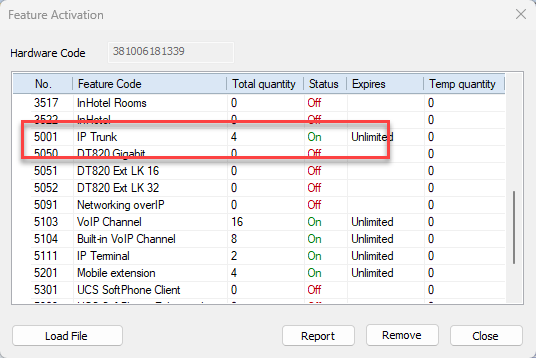

BE114065-CP20 appears as a 5001 lic on the system:

SL2100:

Note: for the SV2100 VOIPDB is only required if you need to exceed 8 VoIP channels

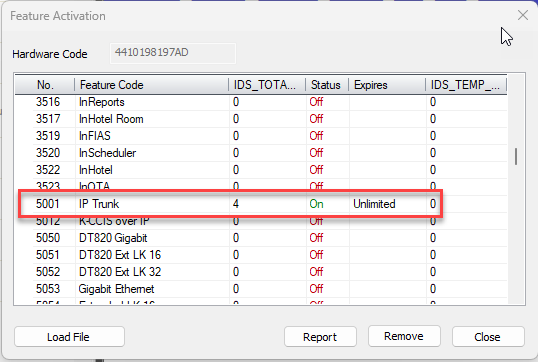

BE116745 appears as a 5001 Lic on the system

System Programming:

Check in your License List for enough VoIP resources. 1 per trunk for Non IP terminal systems, 2 per trunk for IP terminal systems.

NOTE:

For SV9100’s with more than 8 VoIP resources required, make sure you check :

If the Licenses do not equal you License shown in the Licence area you need to subtract 8 & enter the result in 10-54 as well as the License code 5103

PRG 10-12-09    Valid IP address on the customers network

RRG 10-12-10    Subnet mask that matches the customers network

PRG 84-26-01    Valid IP address on the customers network ( by convention, one IP above 10-12-09 )

PRG 10-68-01    SIP trunk Type / Start port & number of ports

Be careful this doesn’t conflict with any COT / ISDN trunk cards

10-67-01 Turn DNS mode on

10-67-02 enter a valid DNS server

Domain Information

This will be referenced as SIP Domain/Realm eg “@customer.com.au“ on your RAS order. Drop the @ & split the FQDN across 10-28-01 & 10-28-02.

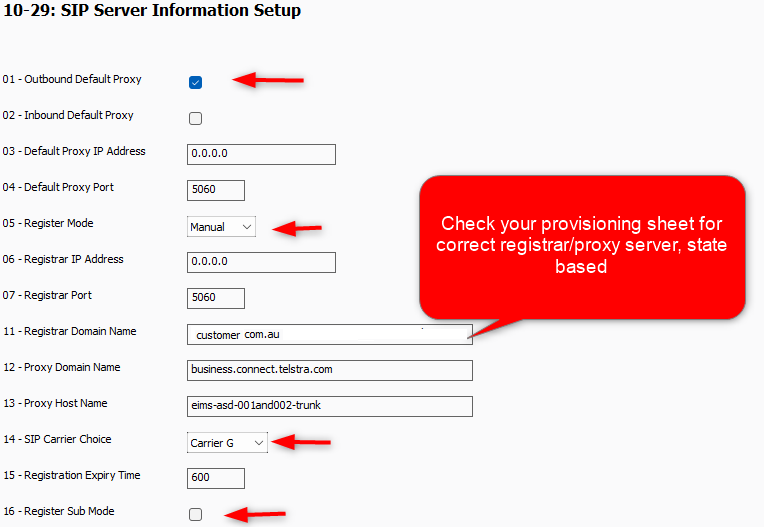

Register/Proxy server settings

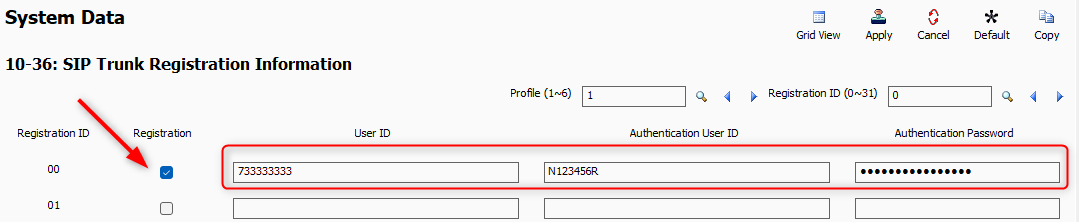

SIP Credentials

Enter the SIP credentials from your RAS order

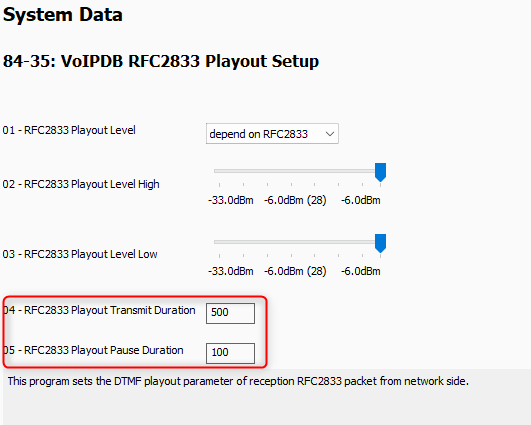

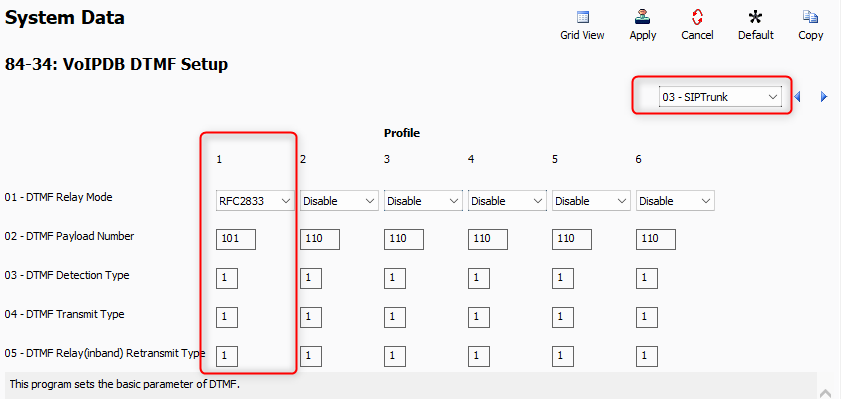

DTMF Settings:

SIP script

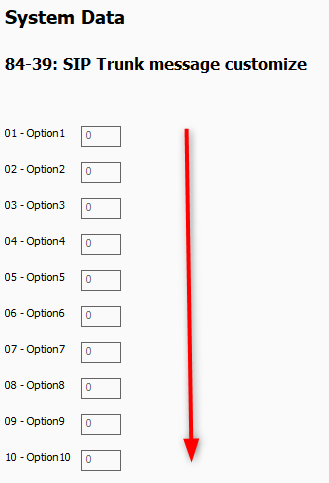

NO SIP script is required for this service type, ensure 84-39-xx are all “0’s”
