How to add Vonex  to NEC SL/2100/SV9100 Remote

Pre-requisite:

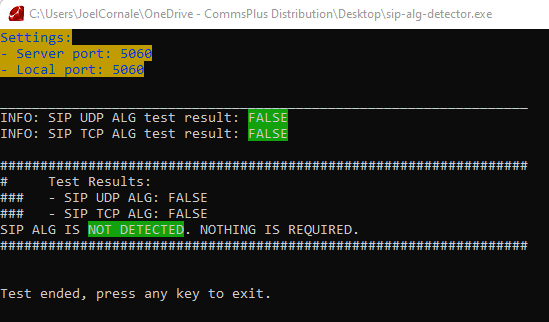

SIP ALG disabled on the customers router

Check SIP trunk credentials using a soft phone app, this will save a lot of time.

 Hardware / License required:

SV9100:

	Quantity	Description
SV9100 CPU	1	System
GPZ-IPLE	1	VoIP Media card to convert RTP packets
BE114065-CP20	Per SIP trunk	SV9100 IP trunk License

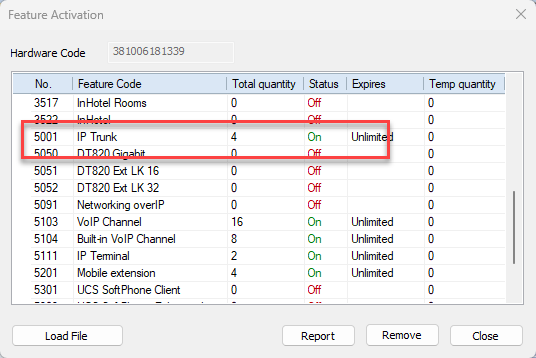

BE114065-CP20 appears as a 5001 lic on the system

:

SL2100:

	Quantity	Description
SL2100 System	1	System
IP7WW-VOIPDB-C1	?	VoIP Media card to convert RTP packets
BE116745	SIP Trunk	SIP trunk license

Note: for the SV2100 VOIPDB is only required if you need to exceed 8 VoIP channels

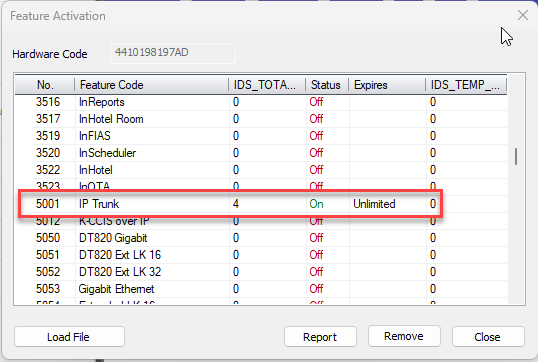

BE116745 appears as a 5001 Lic on the system

Vonex SIP server changes , so check you paperwork

In this case have been given sip01.sipgateway.com.au

System Programming:

Check for enough VoIP resources ( 1 per trunk for Non IP terminal systems, 2 per trunk for IP terminal systems.)

PRG 10-12-09    Valid IP address on the customers network

RRG 10-12-10    Subnet mask that matches the customers network

RRG 10-12-07    Customers Public IP address ( required for SL2100 or SV 9100 will be done in 10-29-24)

PRG 84-26-01    Valid IP address on the customers network ( by convention, one IP above 10-12-09 )

PRG 10-68-01    SIP trunk Type / Start port & number of ports

Be careful this doesn’t conflict with any COT / ISDN trunk cards

10-67-01 Turn DNS mode on

10-67-02 enter a valid DNS server

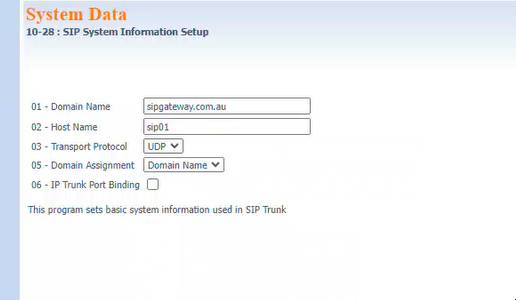

10-28-01 -sipgateway.com.au

10-28-02-sip01

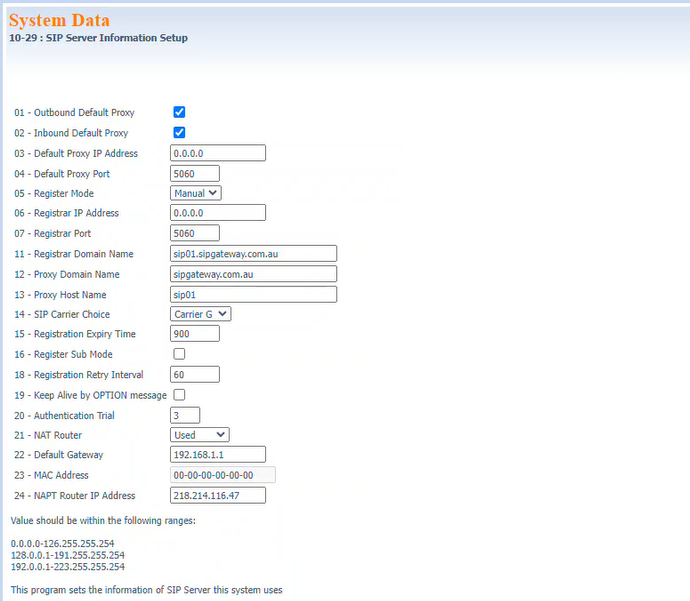

10-29-01 Outbound default proxy Enable

10-29-02 Inbound Default Proxy enable

10-29-05 Register Mode Manual

10-29-11 -enter SIP server  address (on the sheet supplied Vonex -THIS CHANGES SO DO NOT JUST COPY WHAT I HAVE ,CHECK THE SHEET Vonex SUPPLIED)

10-29-12 -sipgateway.com.au

10-29-13 -sip01

10-29-14 SIP Carrier Choice Use “G”

10-29-15 Registration expiry time 900

10-29-20 Authentication trail 3

10-29-19 Check keep alive option

10-29-16 Sub Register Mode Disable

10-29-21- NAT router to used

10-29-24 – NAT router IP address ( YOUR PUBLIC IP ADDRESS)

10-12-07 – enter your public IP address of the site (SL2100 only)

REBOOT THE SYSTEM for the NAT address to take effect (10-12-07)

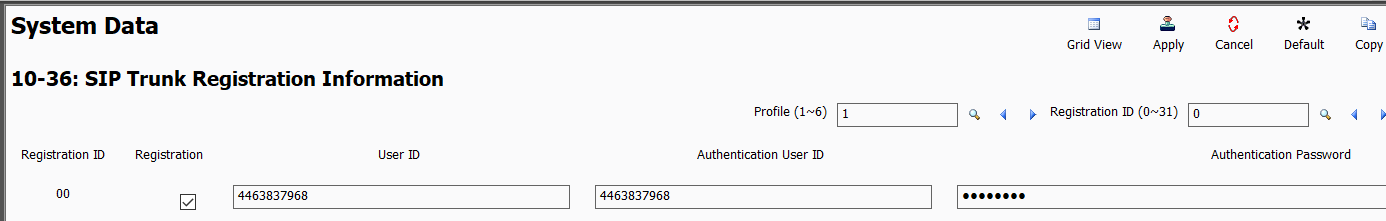

10.36.

Enter credentials

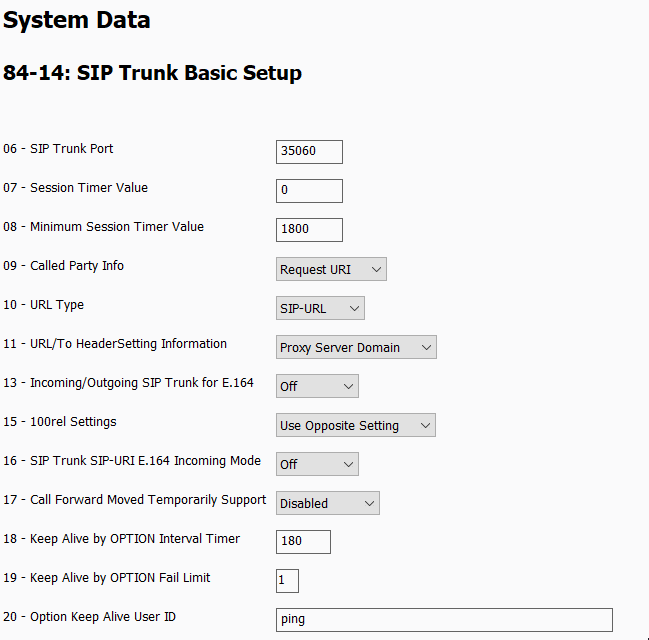

84-14

Sip improve compatibility script

SET    84-39    (0,0,04)    "5"

SET    84-39    (0,0,02)    "1"

SET    84-39    (0,0,05)    "1"

SET    84-39    (0,0,07)    "1"

SET    84-39    (0,0,08)    "1"

SET    84-39    (0,0,09)    "1"

SET    84-39    (0,0,11)    "1"

SET    84-39    (0,0,13)    "1"

SET    84-39    (0,0,22)    "1"

SET    84-39    (0,0,27)    "1"
