How to add Aussie broadband SIP trunks to NEC SL/2100/SV9100 Remote

Pre-requisite:

SIP ALG disabled on the customers router

Check SIP trunk credentials using a soft phone app, this will save a lot of time.

Hardware / License required:

SV9100:

	Quantity	Description
SV9100 CPU	1	System
GPZ-IPLE	1	VoIP Media card to convert RTP packets
BE114065-CP20	Per SIP trunk	SV9100 IP trunk License

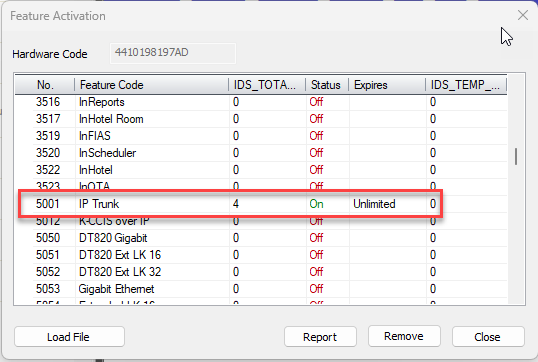

BE114065-CP20 appears as a 5001 lic on the system:

SL2100:

	Quantity	Description
SL2100 System	1	System
IP7WW-VOIPDB-C1	?	VoIP Media card to convert RTP packets
BE116745	Per IP phone	IP Phone License

Note: for the SV2100 VOIPDB is only required if you need to exceed 8 VoIP channels

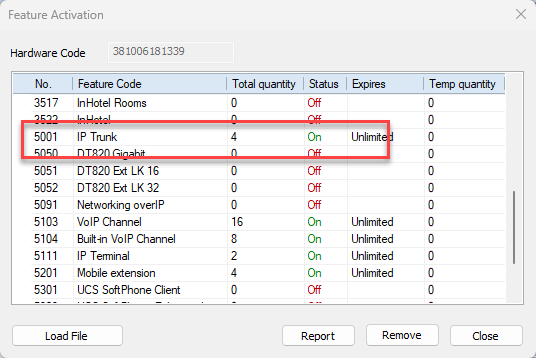

BE116745 appears as a 5001 Lic on the system

System Programming:

Check for enough VoIP resources ( 1 per trunk for Non IP terminal systems, 2 per trunk for IP terminal systems.

PRG 10-12-09    Valid IP address on the customers network

RRG 10-12-10    Subnet mask that matches the customers network

PRG 84-26-01    Valid IP address on the customers network ( by convention, one IP above 10-12-09 )

PRG 10-68-01    SIP trunk Type / Start port & number of ports

Be careful this doesn’t conflict with any COT / ISDN trunk cards

10-67-01 Turn DNS mode on

10-67-02 enter a valid DNS server

10-28-01 Domain name nms1.voice.wide.net.au

10-28-02 Host name AussieBB

( 01&02 together build a FQDN )  AussieBB.nms1.voice.wide.net.au

10-28-05 Domain Assignment Domain Name

10-29-01 Outbound default proxy Enable

10-29-05 Register Mode Manual

10-29-11 Registrar Domain Name   AussieBB.nms1.voice.wide.net.au

10-29-12 Proxy Domain Name nms1.voice.wide.net.au

10-29-13 Proxy Host Name AussieBB

( 12&13 together build a FQDN )  AussieBB.nms1.voice.wide.net.au

10-29-14 SIP Carrier Choice Use “G”

10-29-16 Sub Register Mode Disable
