NETSIP-  SIP Trunks

Pre-requisite:

SIP ALG disabled on the customers router

Method:

NETSIP servers use one of many IP addresses, you register to one, however calls may come from another , causing the call to get blocked by your on site router. UDP port 5060 needs to be port forwarded to your NEC, A router must support an allow list from the following 3 x C Classes

103.26.173.0/24

103.26.174.0/24

103.26.175.0/24

DO NOT PORT FORWARD FROM ANY PUBLIC IP ADDRESS,  use allow lists!!

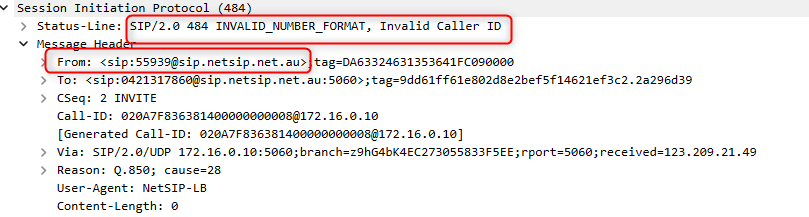

NETSIP use an account number to REGISTER , however INVITES must contain a valid 10 digit CLIP. By default all carrier selections ( 10-29-14 , A-Z ) use the Account “User ID” in 10-36-xx series to REGISTER it also uses the same “User ID” in the “From:” field in the INVITE , we must change the “From:” field in the INVITE to a valid 10 digit CLIP in order to make a successful out bound call

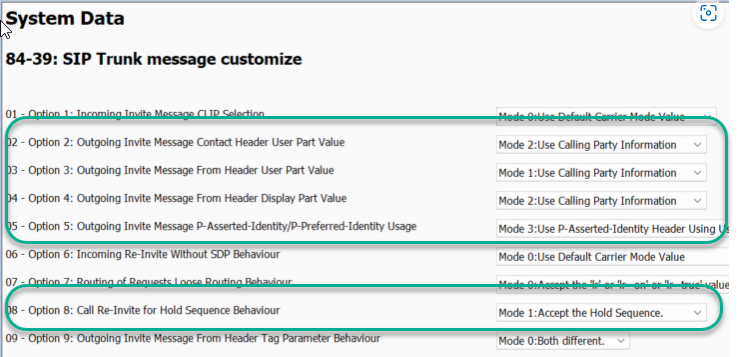

This 84-39 series can only be modified via PC-Pro in the way of scripts. ( SL2100 you can manually change them in PCPro with our using scripts )

In order to modify these values you must:

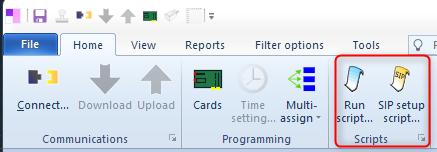

2. Run the Script

( you must use “SIP Script” if you are using profiles 2 tru 6. 99% of installs you will only use profile 1, If you are using profile 1 then you can select either Run script or Run SIP Script)

Script attached at the end of this article.

4.  Upload the database

Hardware / License required:

SV9100:

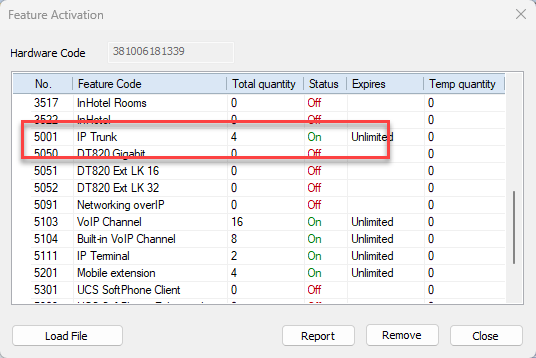

BE114065-CP20 appears as a 5001 lic on the system:

SL2100:

Note: for the SV2100 VOIPDB is only required if you need to exceed 8 VoIP channels

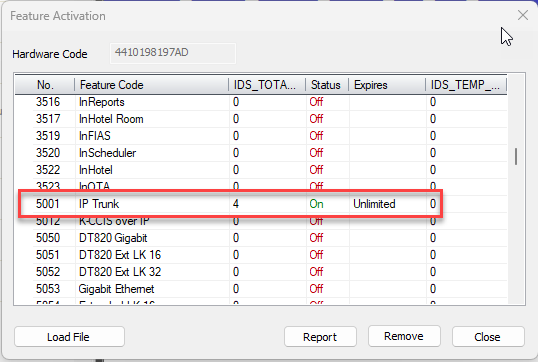

BE116745 appears as a 5001 Lic on the system

System Programming:

Check in your License List for enough VoIP resources. 1 per trunk for Non IP terminal systems, 2 per trunk for IP terminal systems.

NOTE:

For SV9100’s with more than 8 VoIP resources required, make sure you check :

If the Licenses do not equal you License shown in the Licence area you need to subtract 8 & enter the result in 10-54 as well as the License code 5103

PRG 10-12-09    Valid IP address on the customers network

RRG 10-12-10    Subnet mask that matches the customers network

PRG 84-26-01    Valid IP address on the customers network ( by convention, one IP above 10-12-09 )

PRG 10-68-01    SIP trunk Type / Start port & number of ports

Be careful this doesn’t conflict with any COT / ISDN trunk cards

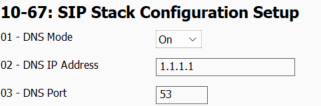

10-67-01 Turn DNS mode on

10-67-02 enter a valid DNS server

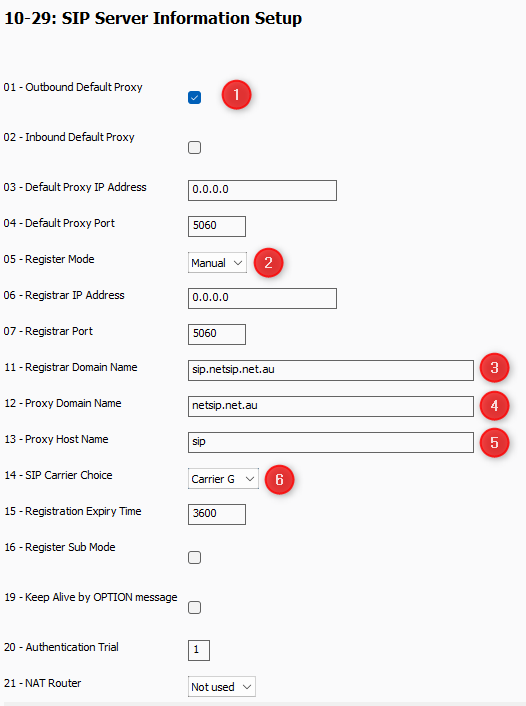

PBX Configuration Guide on Netsip Service:
