NEC SV9100 Upload VRS audio file
Use web bowser to login in as UA login level:
( credentials can be checked here )

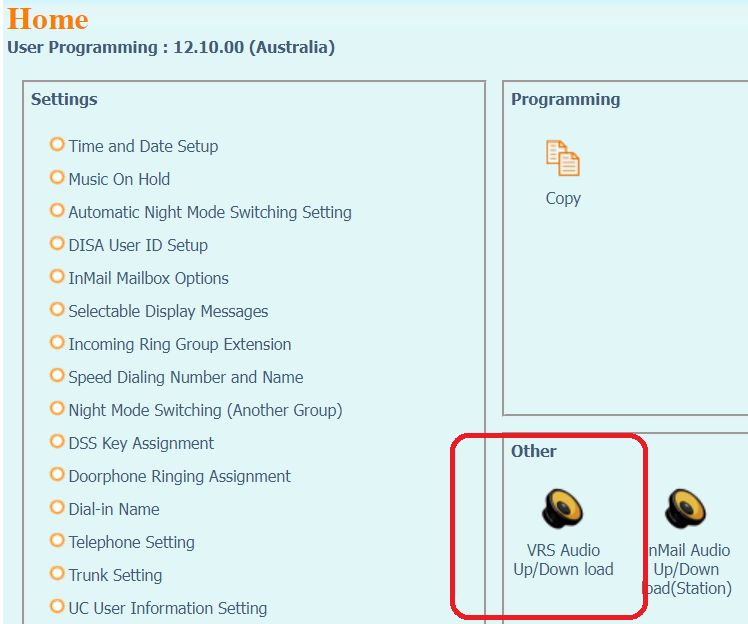

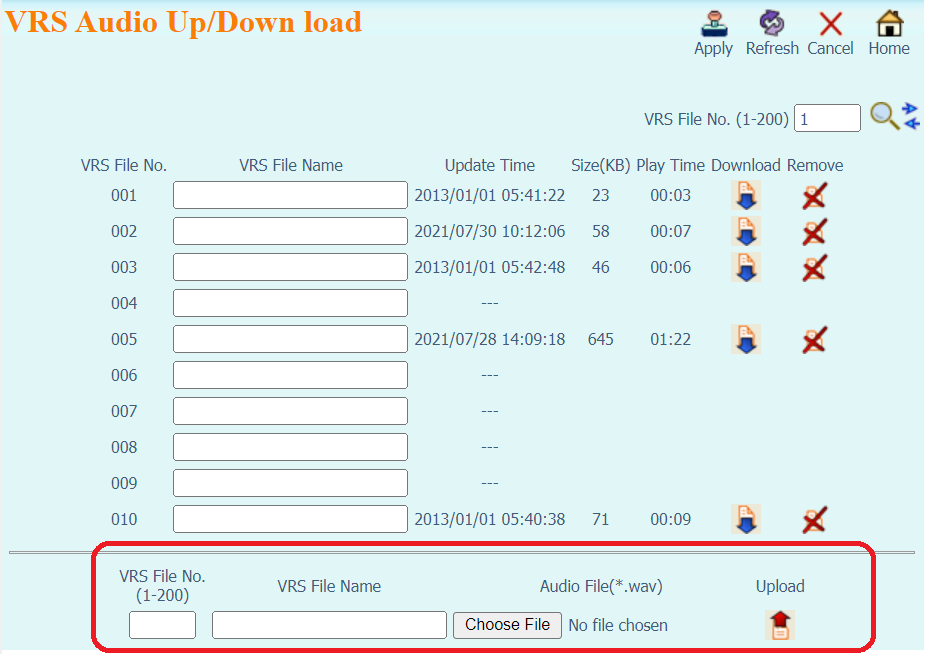

Select VRS Audio Up / Down load
- Maximum file size = 2MB
- This can be calculated to 4 minutes & 15 Seconds

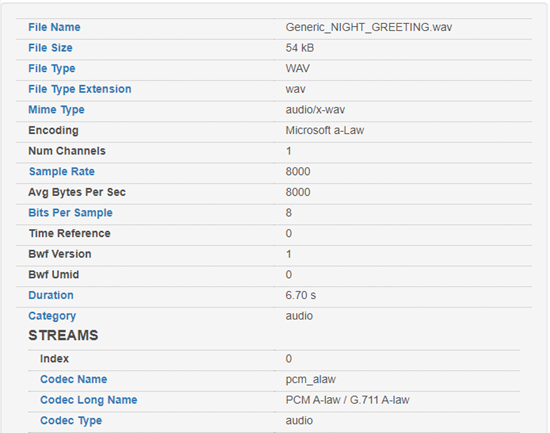

- Check your files metadata info
- (metadata2go.com)
