NEC SV9100 SL2100 Voicemail to email



Voicemail to email

NOTE:

SL2100 requires no Licenses

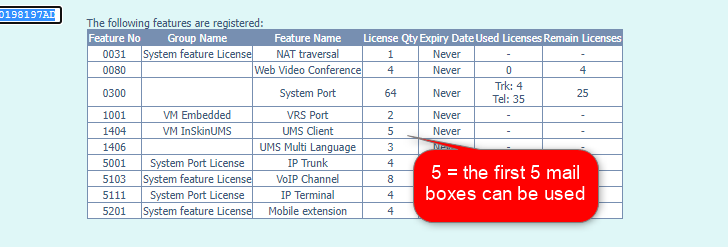

SV9100 requires a “User” license per mail box , eg quantity of 10 means the first 10 mail boxes can be used

Set DNS in 10-12-13

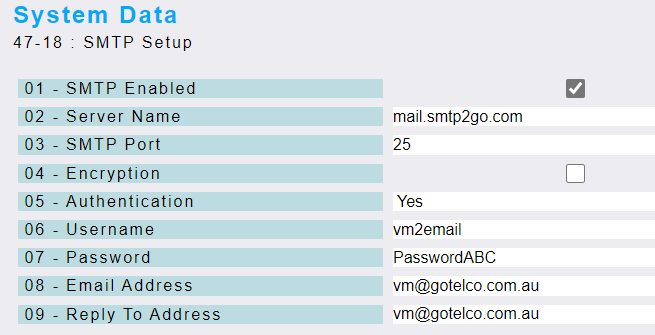

Set SMTP details in 47-18 ( system wide details )

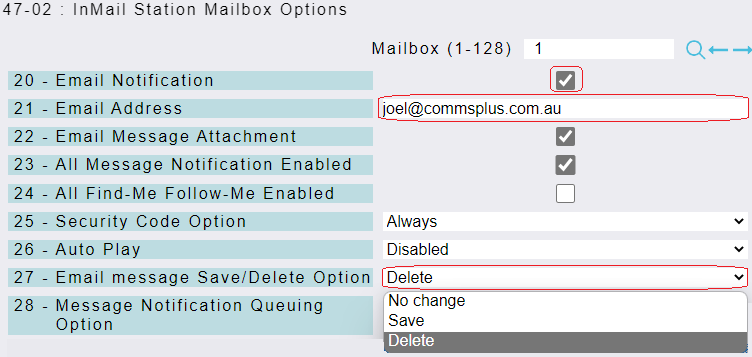

Set individual details in the 47-02 series

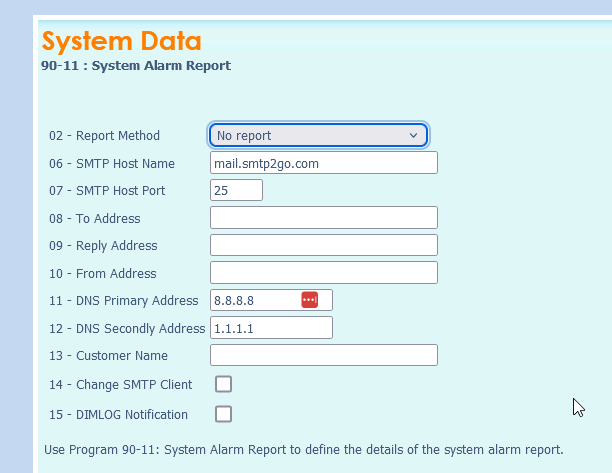

in 90-11 set SMTP host name and DNS server address to resolve server address

The Voicemail will not delete until a successful email has been transmitted

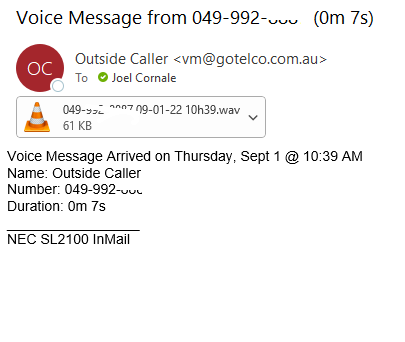

The email message format is as follows:
