Dial options to dial out of Voicemail

NOTE:

Customer requirements:

Call to be answered by Voicemail , however client wants the option for the caller to dial out to a mobile, or leave a message.


Programming:


Create 2 Virtual extensions:                                                      PRG 11-04 , extensions 202 & 210

Call forward 202 to the Voicemail Pilot ( 3999 )                        PRG 24-09

Call forward 210 to mobile number, include the leading 0        PRG 24-09

Call forwards can be changed by the client by using the call forward remote Service code:

Speaker, 790, 1, 210, 0, Mobile number, Speaker

Terminate trunk calls to Virtual Extension 202

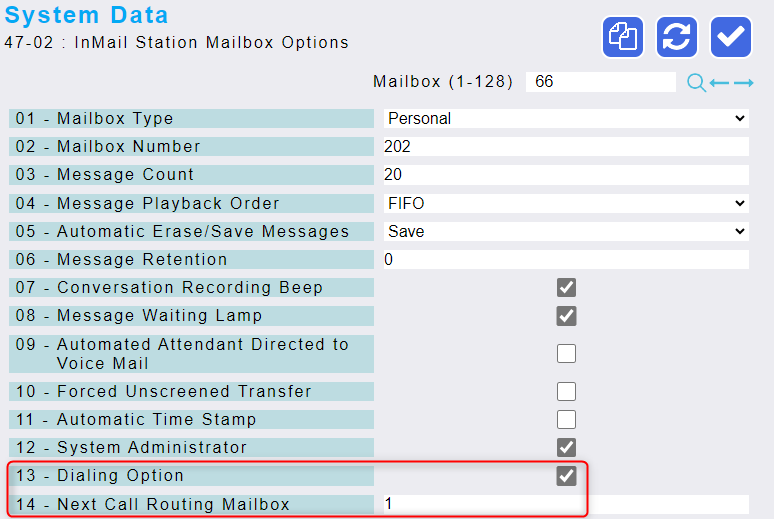

Go to the voice mailbox 202 & allow “Dialing Option”, then specify the “Next Call Routing Mailbox”

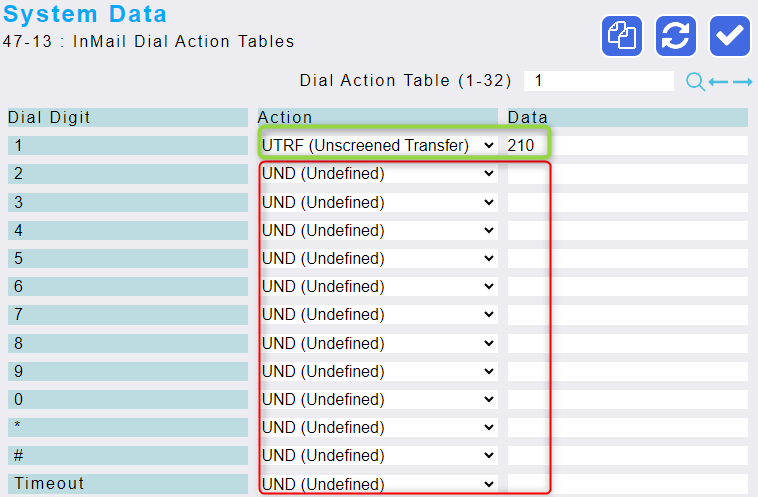

It is important when enabling “Dial Action Tables” to secure the system so ONLY the advertised digit can be dialed , all other options must be set to Hangup or Undefined .

In my example I have set a destination of ”Unscreened Transfer to 210” if “1” has been received during the playing of the greeting in Mail Box 202.

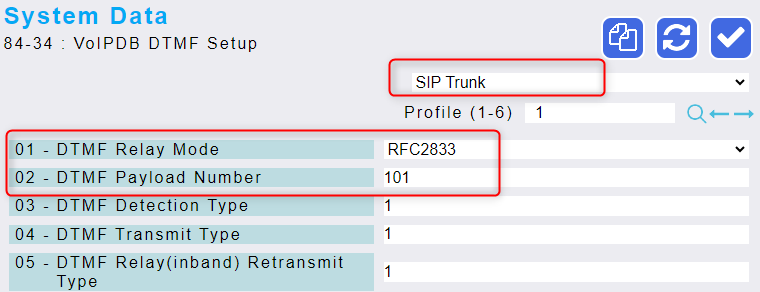

If the system ignores the DTMF digits you send through .... check:
