NEC SV9100 SL2100 Comfort greeting played to caller

NEC SV9100 SL2100 Comfort greeting played to caller


CommsPlus Distribution                                                         Icon Description automatically generated

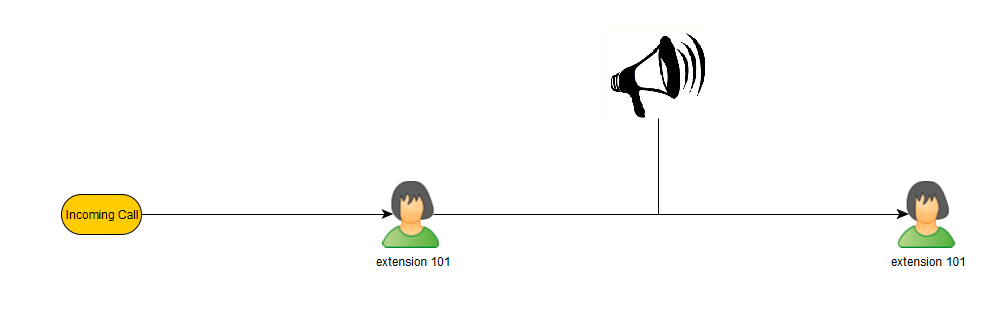

This call flow is how to program a NEC to terminate incoming calls to a Ring group , that ring group has “IRG waiting message feature”

Caller will automatically be put on hold immediately after the greeting has been played

No Dial options are available to the caller. ( comfort greeting only )

Phones that are in the ring group have a less intensive ring tone while & after the greeting is/has been played.



Programming:

Direct calls to incoming ring group ( DDI or DIL )

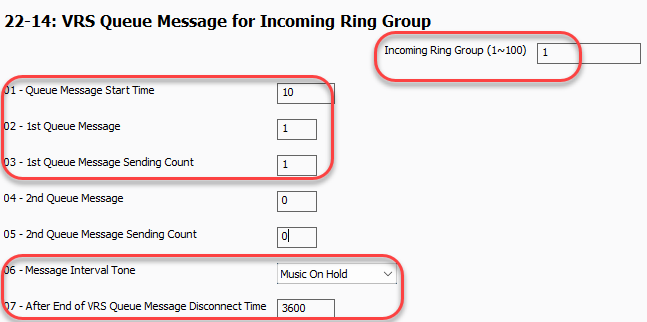

PRG 22-14-01    Set the start time to play the greeting

PRG 22-14-02    Set the VRS Greeting you wish to play

PRG 22-14-03    Set the number of times you wish to play the greeting

PRG 22-14-(04-07)    Optional
