NEC-Outgoing CLIP - SIP

NEC-Outgoing CLIP -SIP

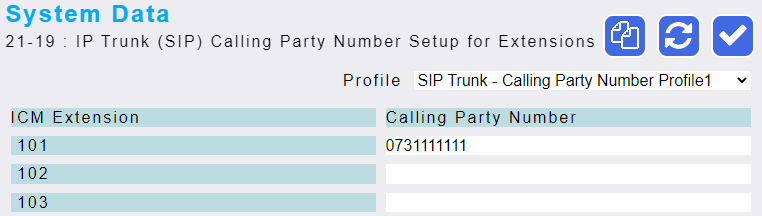

Extension 101 will present  0731111111  - this will over write 21-17

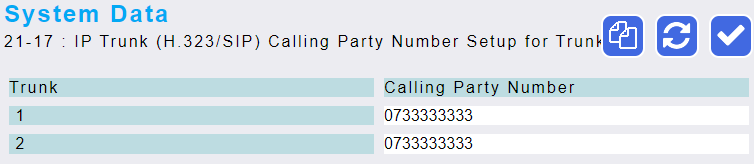

All others will present 0733333333  - This will be default for all users who don’t have anything entered 21-19

Using a VE Key to overwrite default Clip outbound

1. create a Virtual extension 11-04

2. show CLI info 15-18

3. For the user who wants to use this feature give them a virtual Key 15-07

for the user who wants to use this feature set 15-02-21 to outgoing

set the CLIP id you want to use on the VE key

you can now push the VE key dial 0 and make a call using this CLIP

test
