NEC SV9100 SL2100 Adding a 3rd Party IP handset
How to add a IP handset ( 3rd party SIP phone ) to a SV9100 / SL2100
Hardware / License required:
SV9100:

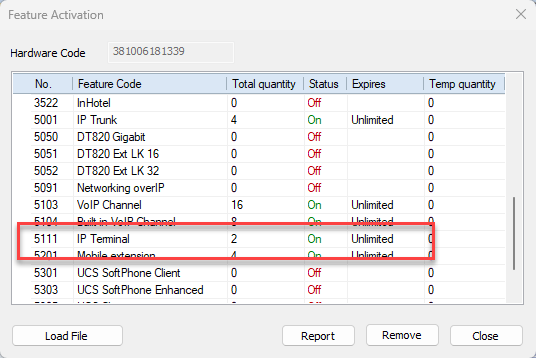

BE1114054-PC20 appears as a 5111 lic on the system:
SL2100:
Note: for the SV2100 VOIPDB is only required if you need to exceed 8 VoIP channels

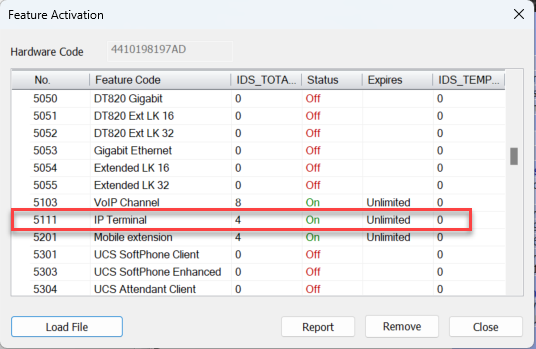

BE116746 appears as a 5111 Lic on the system
System Programming:
PRG 10-12-09 Valid IP address on the customers network
RRG 10-12-10 Subnet mask that matches the customers network
PRG 84-26-01 Valid IP address on the customers network ( by convention, one IP above 10-12-09 )
PRG 84-20-01 Check port number default = 5070
PRG 10-33-02 Enable Authentication Mode
Assign password to extension port
This feature is only available using PC Pro, HTTP access will only show extensions that has physical hardware attached ( Analogue blade , Digital blade or ports with a MAC address assigned )
In order to see “Unregistered” extension ports you must allow them to be viewed:
Open PCPro connect to the system and download the database then select:

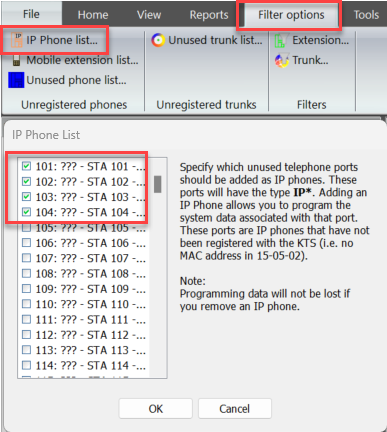

Filter options > IP Phone list > Select unused extension ports

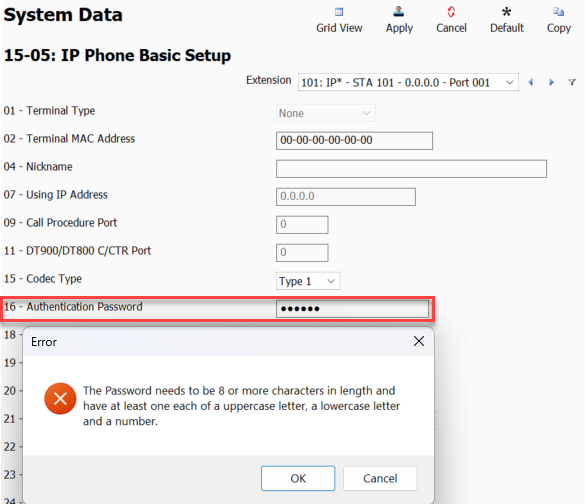

Assign a password in PRG 15-05-16, per extension

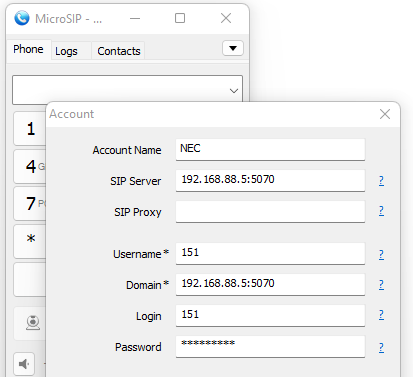

Program example ( Microsip )
Please note: Some programs use “:” to specify the port number after the SIP server address, others have a separate text field to enter the port number.
