How to add an IP handset ( 3rd party SIP phone ) to a SV9100 / SL2100

Hardware / License  required:

SV9100:

	Quantity	Description
SV9100 CPU	1	System
GPZ-IPLE	1	VoIP Media card to convert RTP packets
BE114054-CP20	Per IP phone	SV9100 IP PHONE-01 LIC

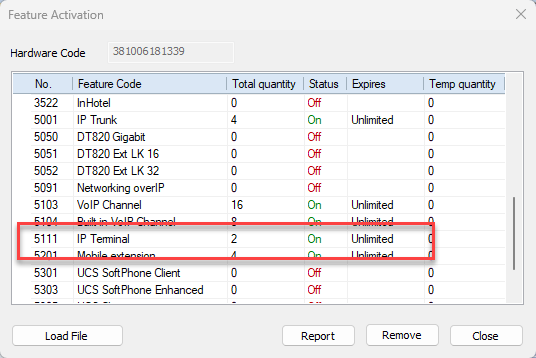

BE1114054-PC20 appears as a 5111 lic on the system:

SL2100:

	Quantity	Description
SL2100 System	1	System
IP7WW-VOIPDB-C1	?	VoIP Media card to convert RTP packets
BE116746	Per IP phone	IP Phone License

Note: for the SV2100 VOIPDB is only required if you need to exceed 8 VoIP channels

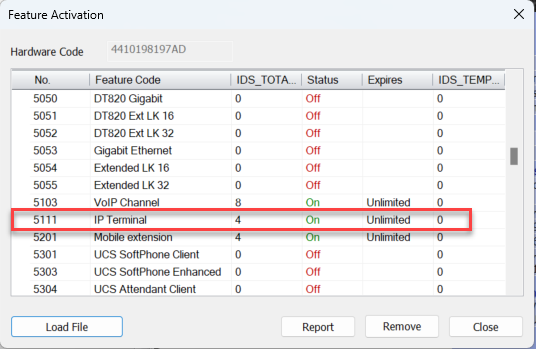

BE116746 appears as a 5111 Lic on the system

System Programming:

PRG 10-12-09    Valid IP address on the customers network

RRG 10-12-10    Subnet mask that matches the customers network

PRG 84-26-01    Valid IP address on the customers network ( by convention, one IP above 10-12-09 )

PRG 84-20-01    Check port number default = 5070

PRG 10-33-02    Enable Authentication Mode

Assign password to extension port

This feature is only available using PC Pro, HTTP access will only show extensions that has physical hardware attached ( Analogue blade , Digital blade or ports with a MAC address assigned )

In order to see “Unregistered” extension ports you must allow them to be viewed:

Open PCPro connect to the system and download the database then select:

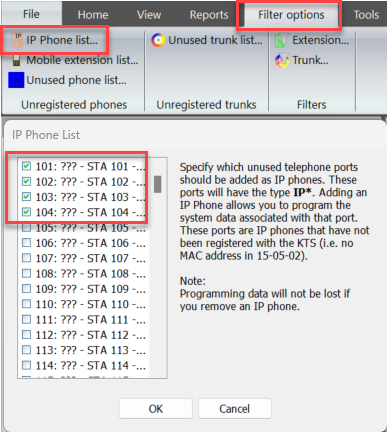

Filter options > IP Phone list > Select unused extension ports

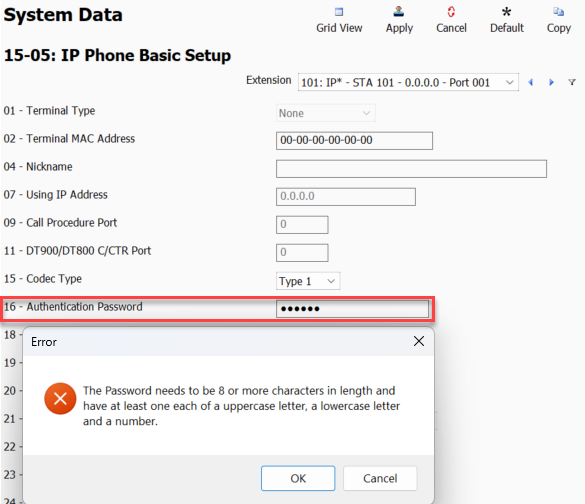

Assign a password in PRG 15-05-16, per extension

GT210

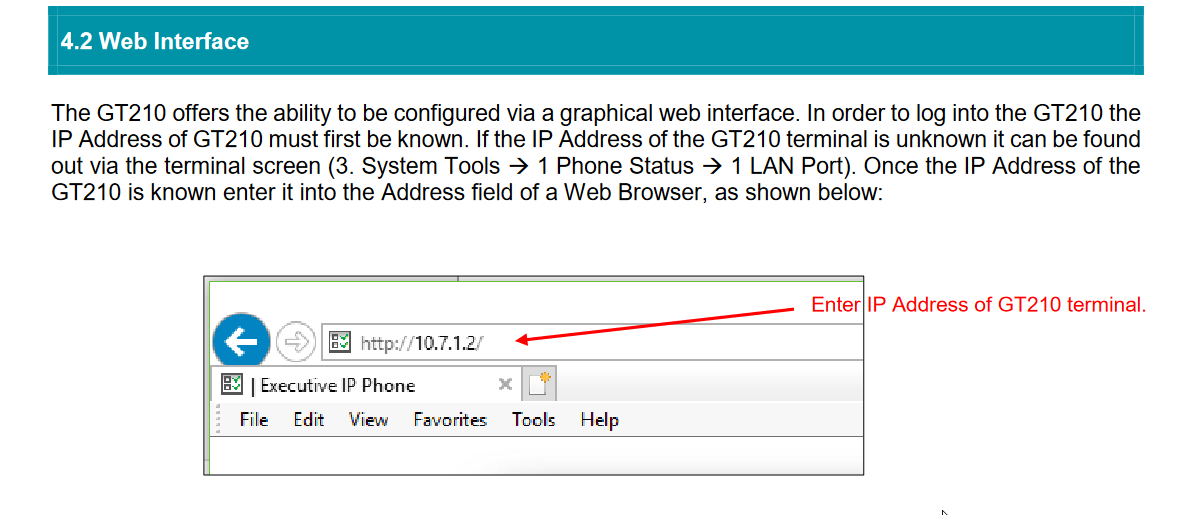

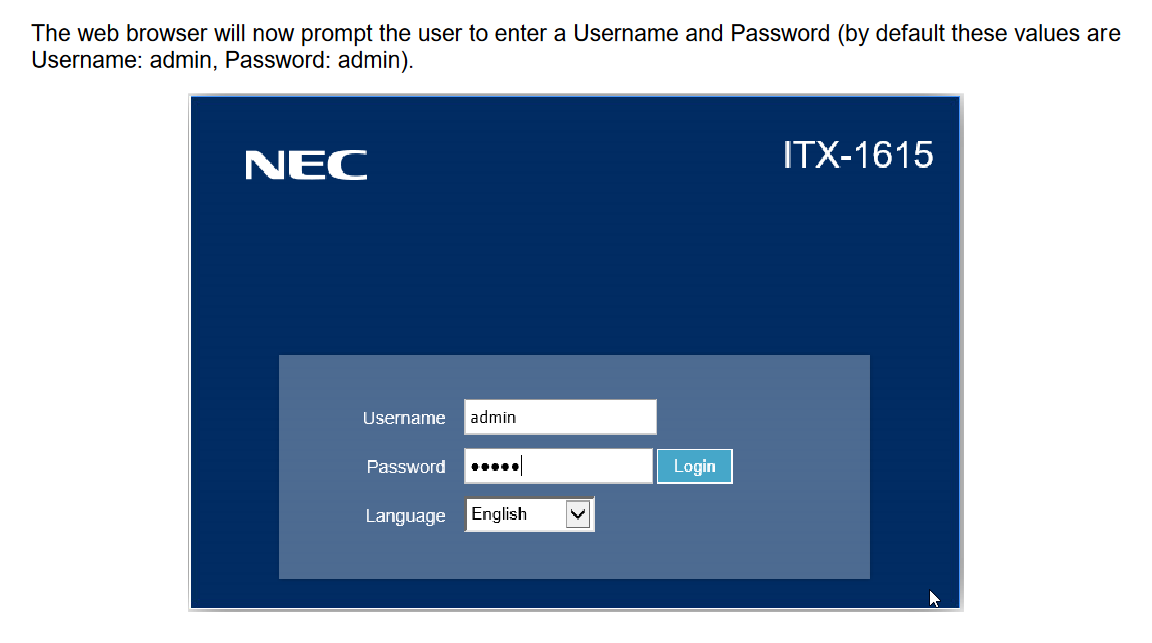

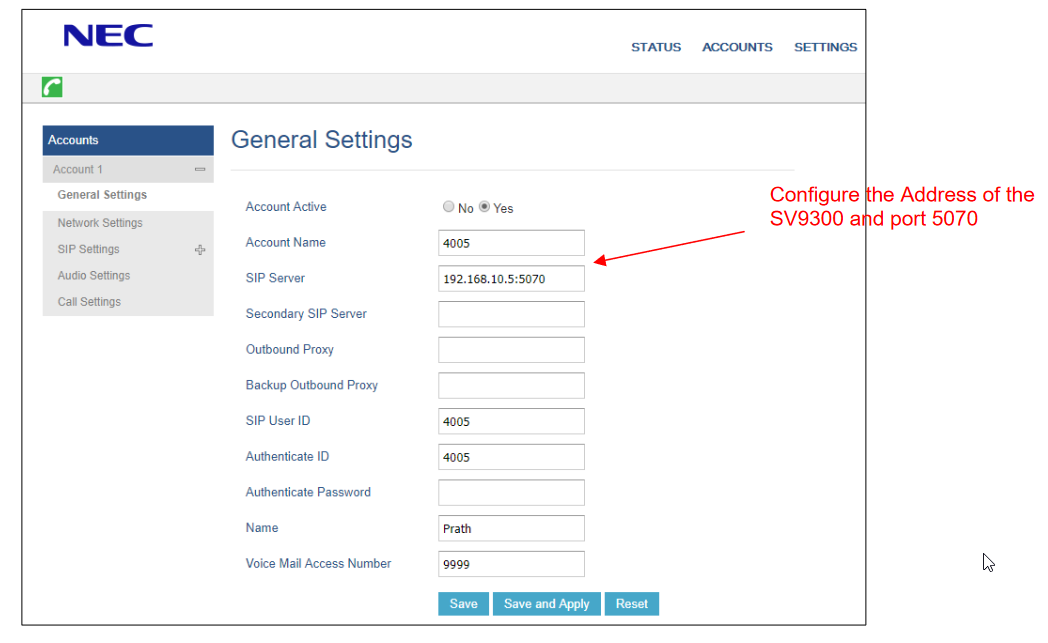

The SL2100 uses port 5070 to connect to the SIP server and the same needs to be configured for the GT210 as below

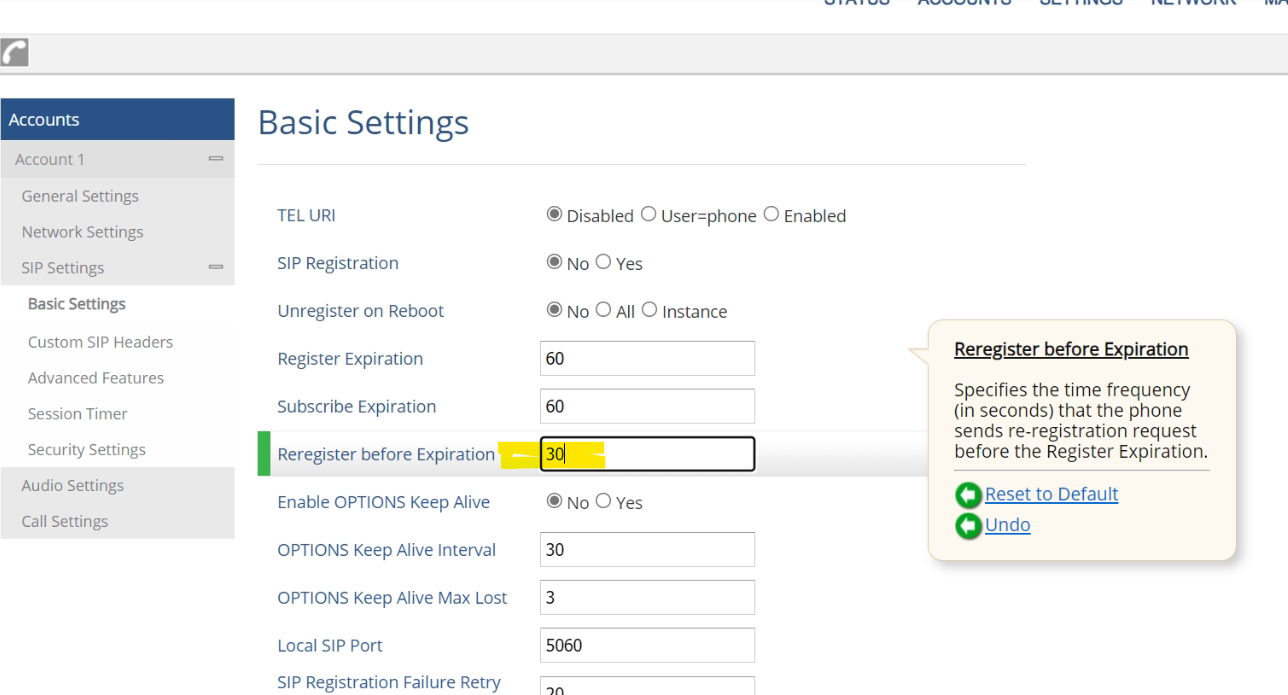

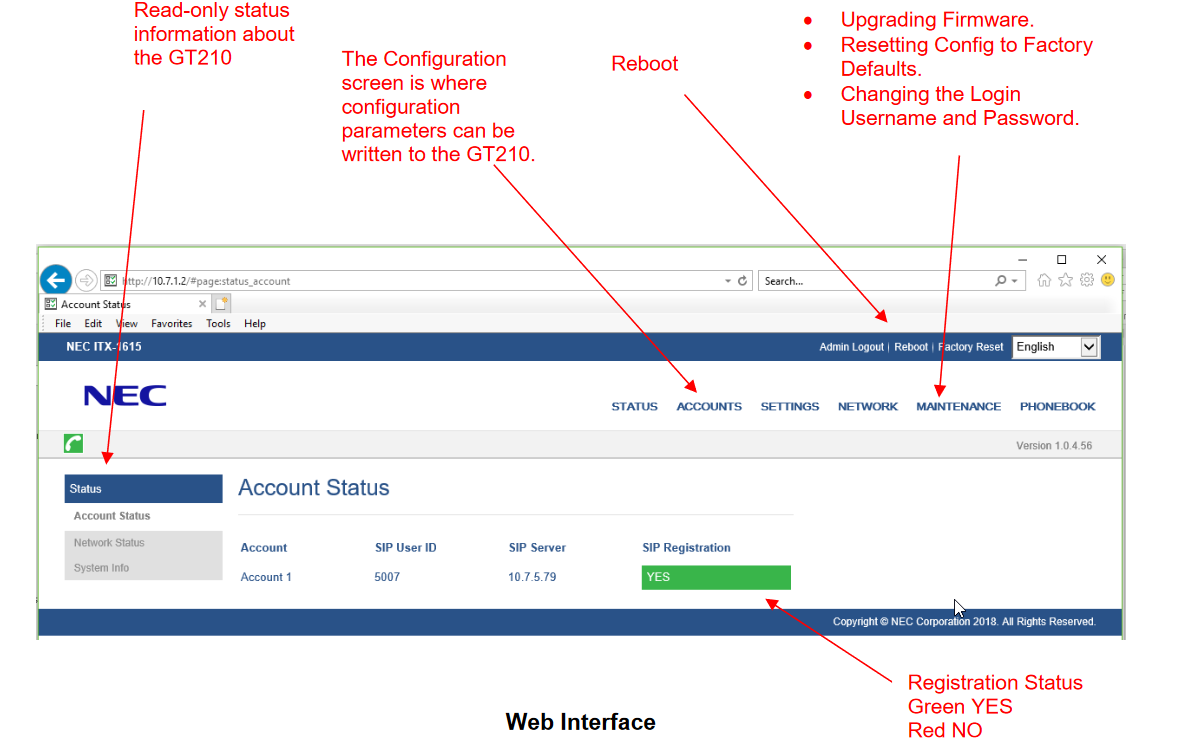

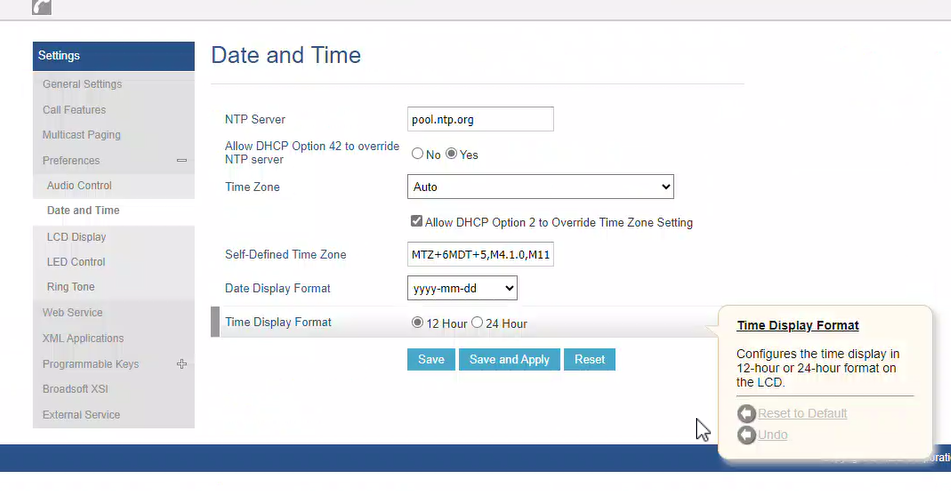

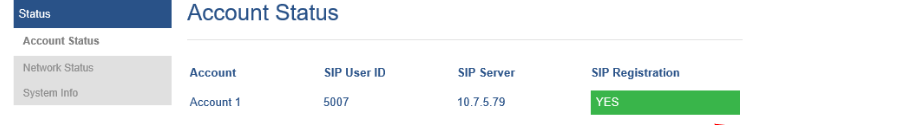

Check your status
