Manual Provision Alcatel-Lucent Phones on Yeastar P-Series Cloud PBX by Auto Provisioning

How to Provision Alcatel-Lucent Phones on Yeastar P-Series Cloud PBX by Auto Provisioning


Requirements

1. Phone's firmware version requirement:
  1. H2, H2P: 2.12.43.010.2272
  2. H3P, H3G H6: 2.12.43.010.2272
  3. M3, M5, M7: 2.13.37.000.2202
  4. M8: 2.13.32.000.1535
Please upgrade the phone firmware, provisioning failure will occur if not at versions listed.

2. PBX firmware version requirement:
  1.       83.9.0.X or higher

Procedure

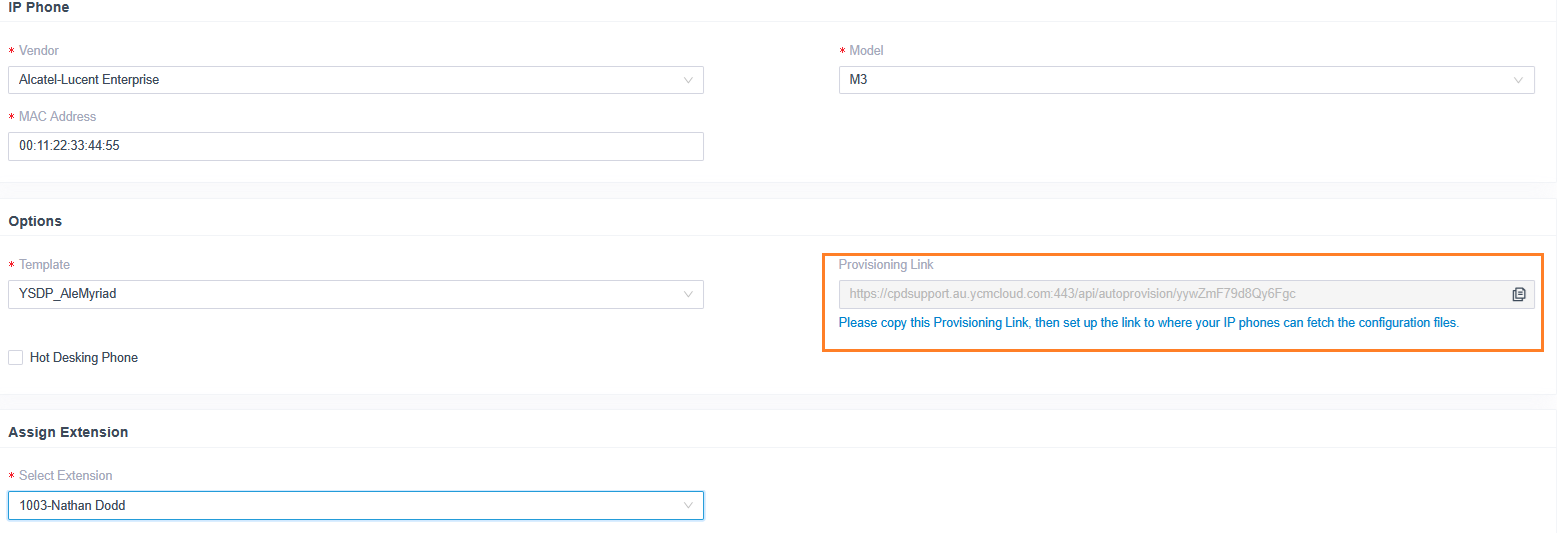

Add the Alcatel-Lucent phone MAC on PBX Auto Provisioning menu. And copy the provisioning link for the next step.


Manual method For model: H3P, H3G H6, M3, M5, M7, M8

Login Alcatel-Lucent IP phone, (default username password is admin/admin), go to the Auto Provision menu. The method is different based on models.

For model: H3P, H3G H6, M3, M5, M7, M8

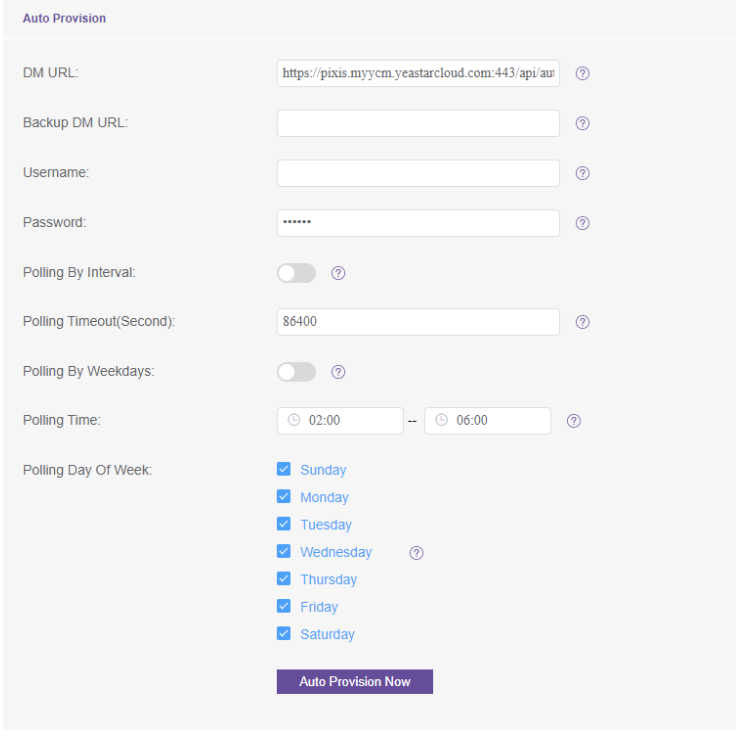

1. Fill the provisioning link in the DM URL field. And click Submit button.

2.  Click Auto Provision Now button to provision the phone. Or reboot the phone to provision.

Manual method for model H2, H2P


1. Fill the provisioning link in the Server Address field.
  1. Protocol Type: it should be TFTP
  2. Configuration File Name: the phone's mac.cfg e.g. 3c28a600842e.cfg
  3. Update Mode: it should be Update After Reboot.
2. Click Auto Provision Now button to provision the phone. Or reboot the phone to provision.
