Yeastar Inbound routes via DDI number
Yeastar Inbound routes via DDI number
In this scenario we are going have multiple numbers assigned to our trunk and our sip trunk is already registered

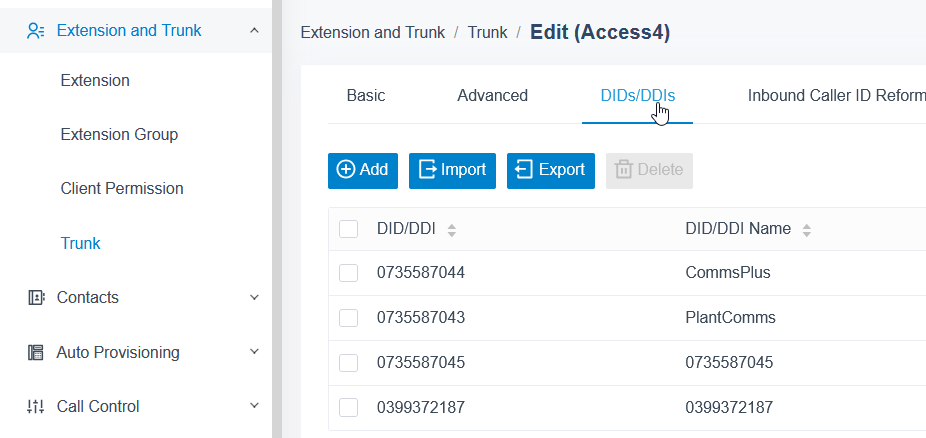

1.Goto Extension and Trunk /Trunk / DIDs/DDIs
Add the DDI numbers assigned to the trunk
2 Call Control/Inbound Route
Add

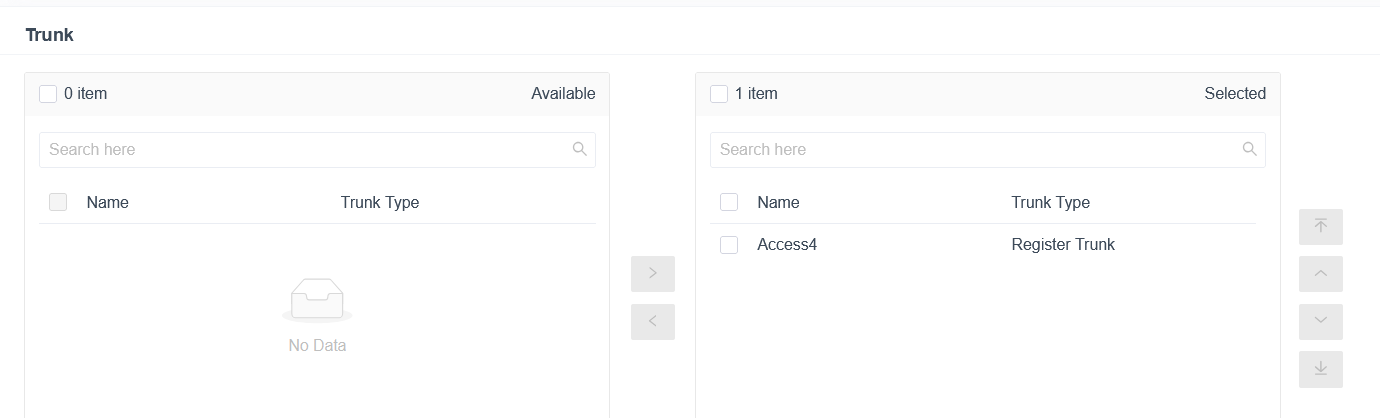

Give the route a name and add the trunk that the inbound route is to work on
Add the DID to the DID Pattern
Add you destination and time conditions etc as per normal
Save

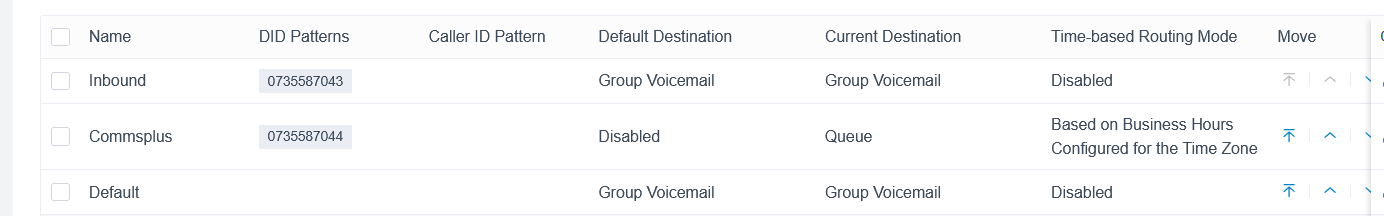

I now have a destination for 2 x indials and anything else coming in on that trunks will go to the default destination
Note these rule are top down so the look up starts at the first route and then moves to the next and so on

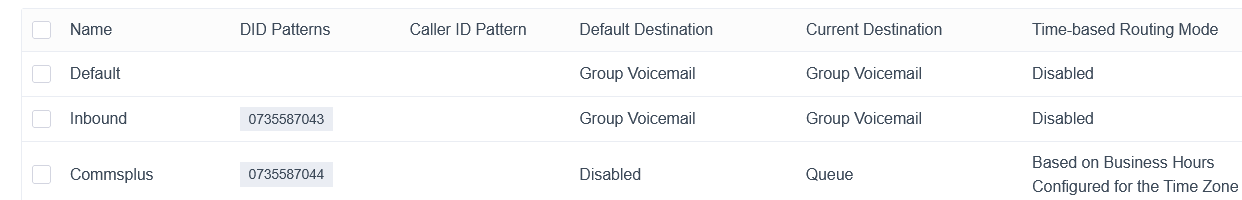

So if my routes are in the incorrect order such as below , the first rule would take effect and the 2 rules for 0735587043 and 0735587044 would be ignored
