Yeastar distinctive ring on Grandstream handsets.

Yeastar distinctive ring on Grandstream handsets.


For Grandstream we still set the Alert_info up for

  • Set Distinctive Ringtones for External Calls
  • Set Distinctive Ringtones for Queue Calls
  • Set Distinctive Ringtones for Ring Group Calls
  • Set Distinctive Ringtones for IVR Calls

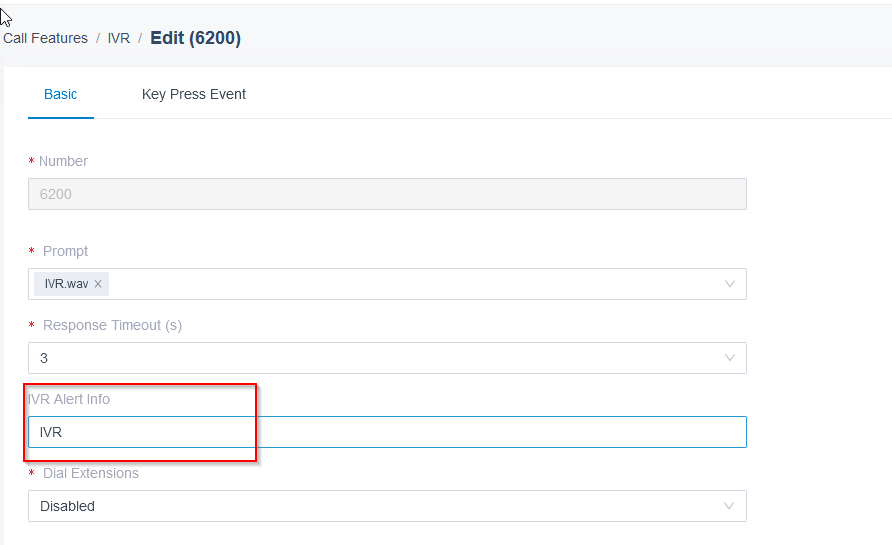

    • Set a Tag on the alert info field

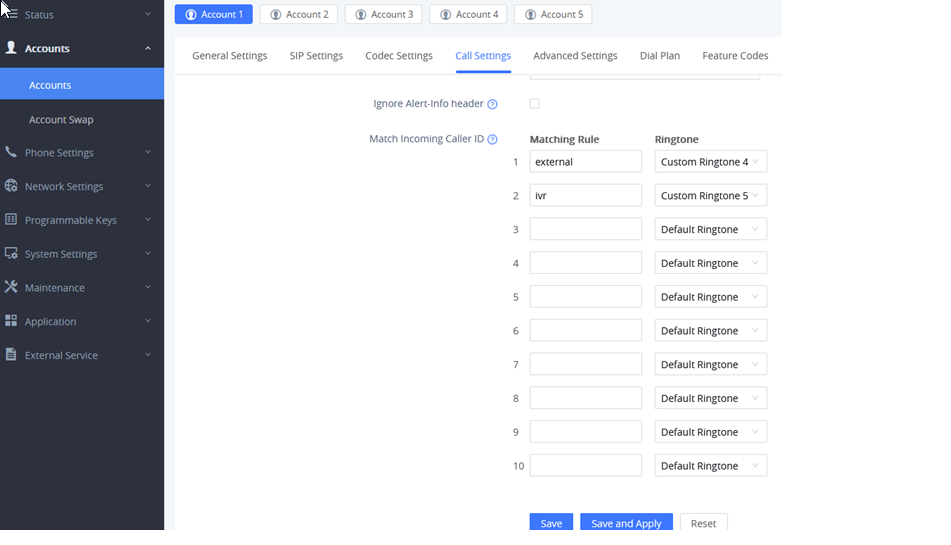

    Manually setting the ringtones on Handset can be done as below.

    Set the rule to be same as you have tagged the alert info field as above.



    or

    Using a custom script


    Use the following script, setting the Alert info Tag and the ringtone to use



    Create Custom Template

    1.Create Custom Template

    Choose Template Type as "Advanced"




    2.Add Custom parameters


    <item name="account.1.ring.match.1">

        <part name="callerId">ivr</part>

                    <part name="ringtone">7</part>

    </item>

            <item name="account.1.ring.match.2">

        <part name="callerId">external</part>

                    <part name="ringtone">6</part>

    </item>
