Yeastar – Access 4 Trunks – UDP


Log into instance

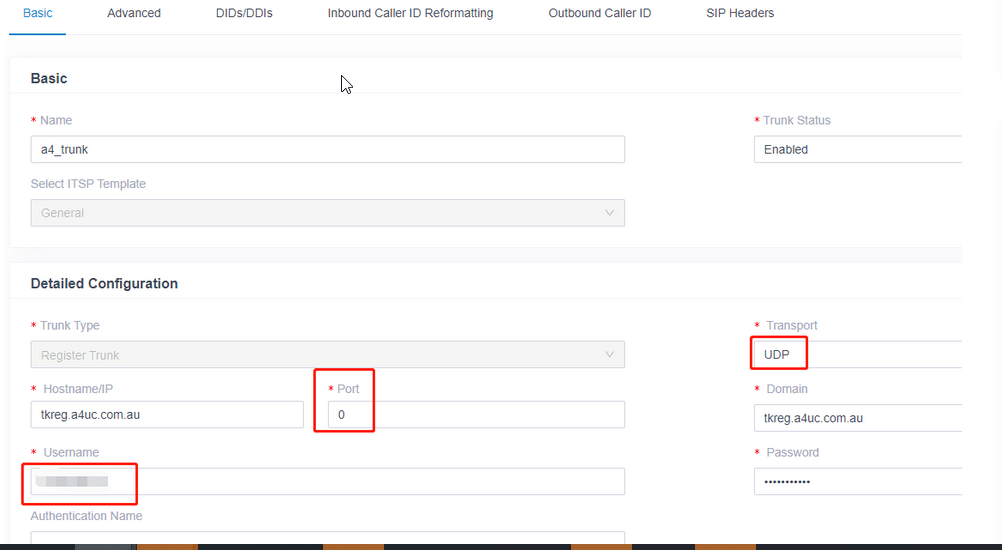

Fill out as below

Trunk status :enable

Trunk type :Register trunk

Host name/IP:tkreg.a4uc.com.au

Username :supplied by Access 4

Tansport: UDP

Domain: tkreg.a4uc.com.au

Password: supplied by Access 4

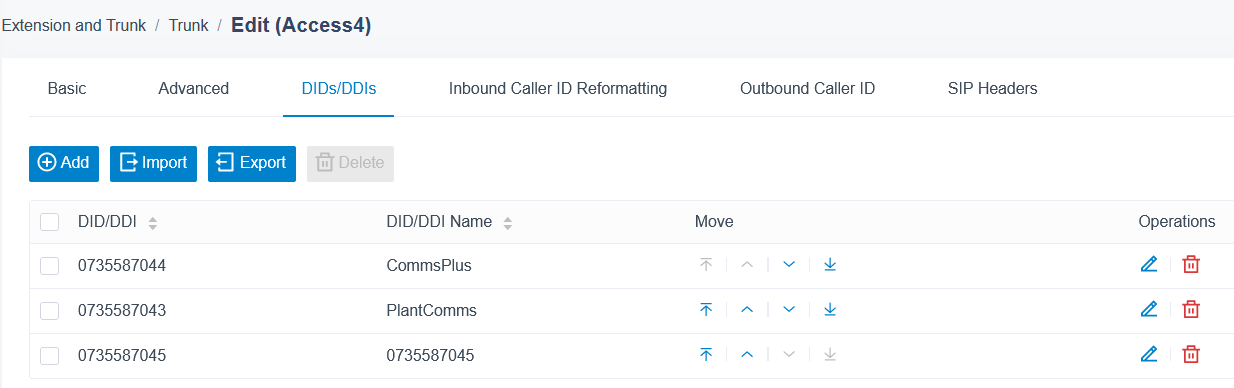

Add the DID’s assigned to the trunk

IF YOU DO NOT HAVE THE DID IN THIS TABLE WHEN CALLED THE PBX WILL RETURN A 5XX ERROR AND REJECT THE CALL


A screenshot of a computerDescription automatically generated


Outbound caller id – default number to be shown outbound

A blue line on a white backgroundDescription automatically generated

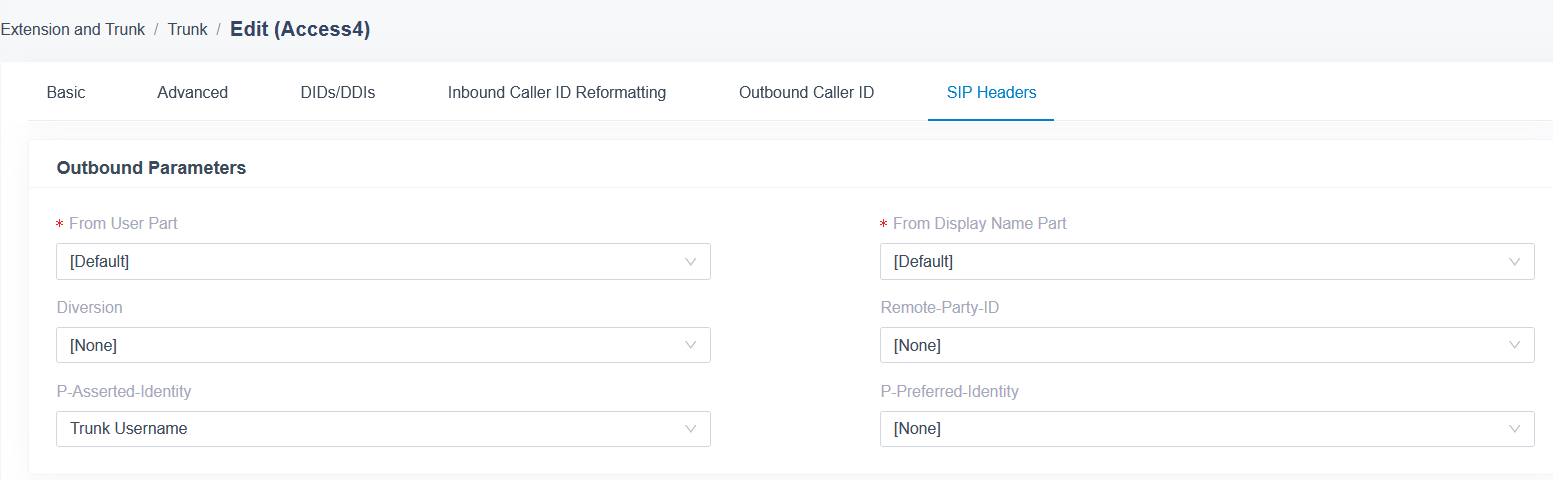

SIP headers


P-Asserted -Identity – Trunk user name


A screenshot of a computerDescription automatically generated


Save and apply

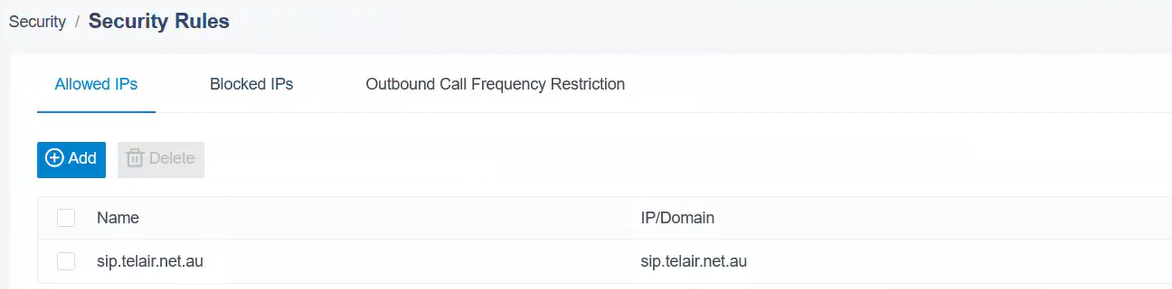

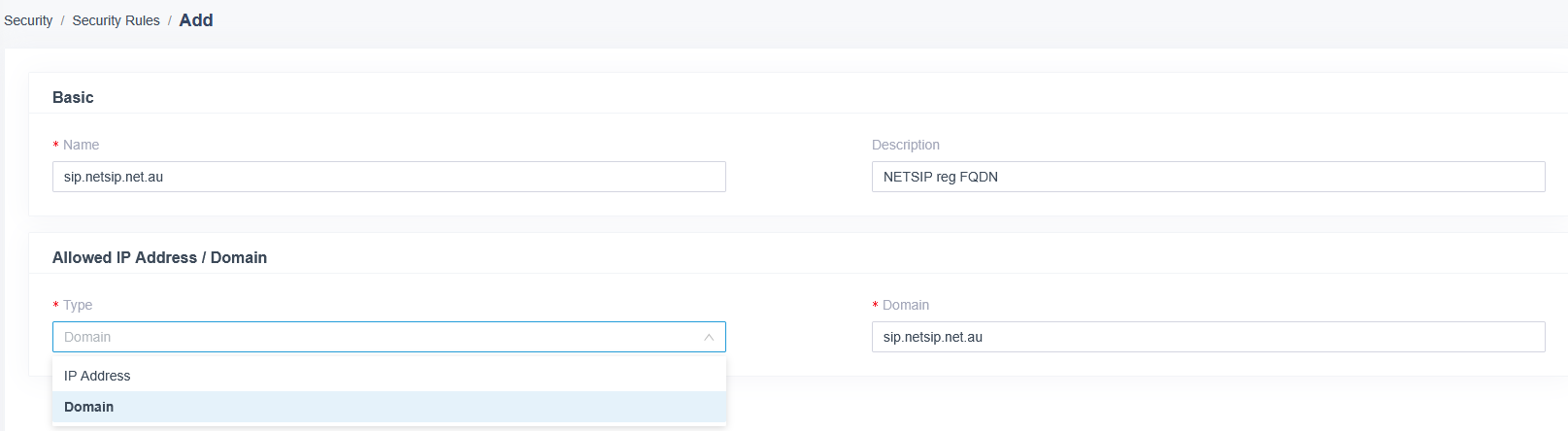

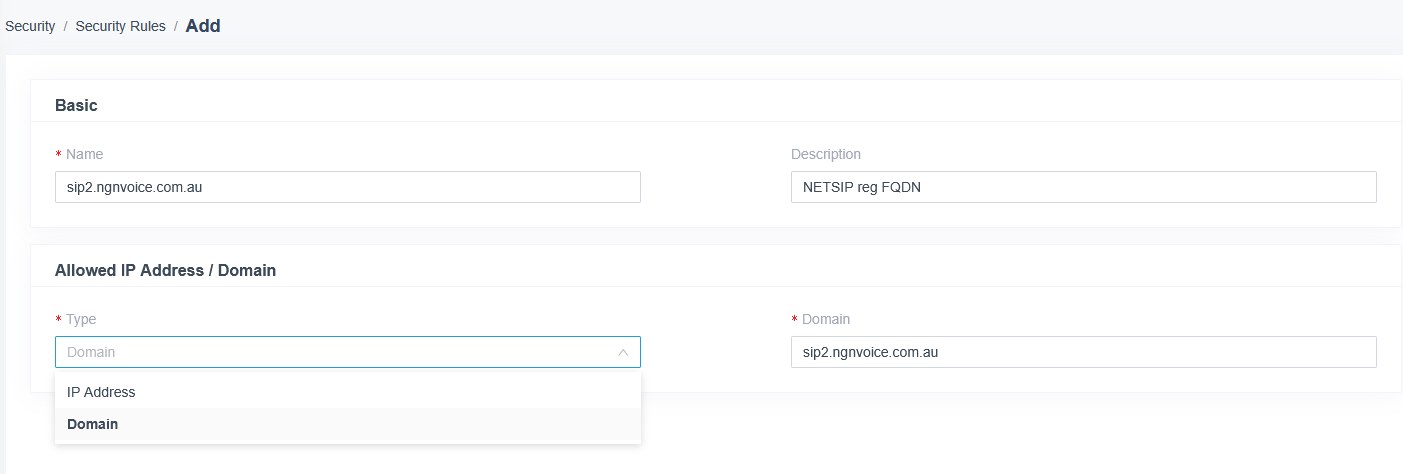

Add the SIP registrar FQDN into Allowed IP's Security -> Security Rules adding via Domain.

NETSIP SIP Provider

ZERO3 SIP Provider:

TELAIR SIP Provider:


 A orange rectangular sign with white textDescription automatically generated
