Using Claude AI to create AI Assistants in Telnyx


Requirements: Claude.ai pro version (charges apply) or any version that allows Custom Connectors

Once you have setup your claude.ai account

Follow the guide below to link it with your Telnyx account

Setup: https://developers.telnyx.com/development/mcp/remote-mcp/index#telnyx-remote-model-context-protocol-mcp


Or if you have issues with the API connection

Delete the Connection

Then Setup using the Legacy Connection:

https://developers.telnyx.com/development/mcp/remote-mcp/legacy/index



Once done

In Claude.au

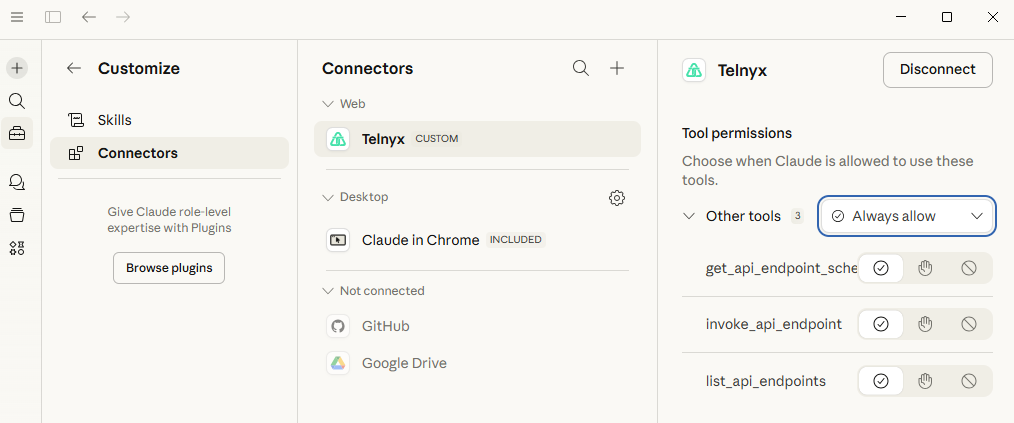

Make sure the Telnyx connector is set to Always Allow

A screenshot of a computerAI-generated content may be incorrect.

Select + to start a new chat (if required)

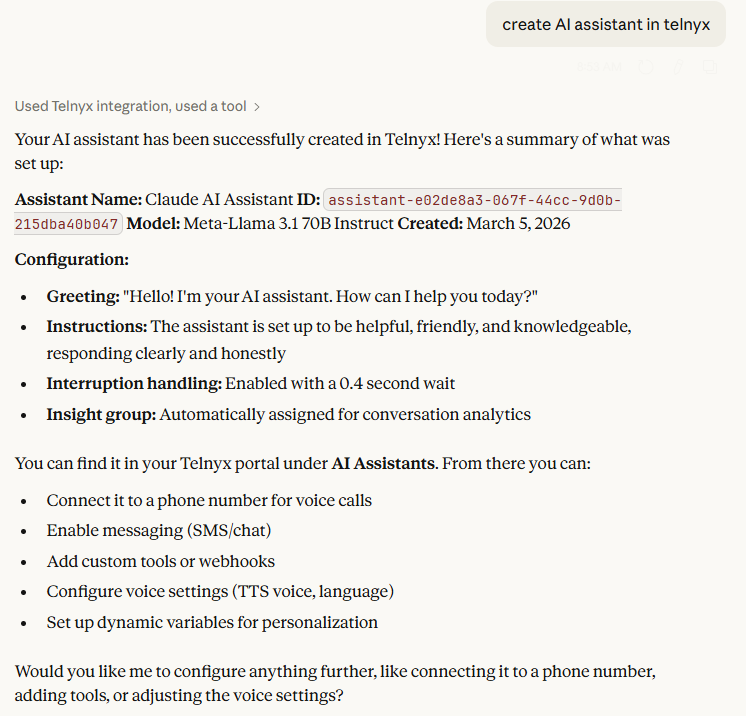

Create a new AI assistant (example below)

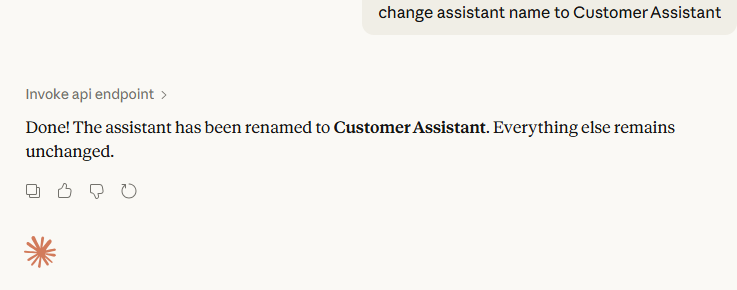

Change Name (example below)

A screenshot of a chatAI-generated content may be incorrect.

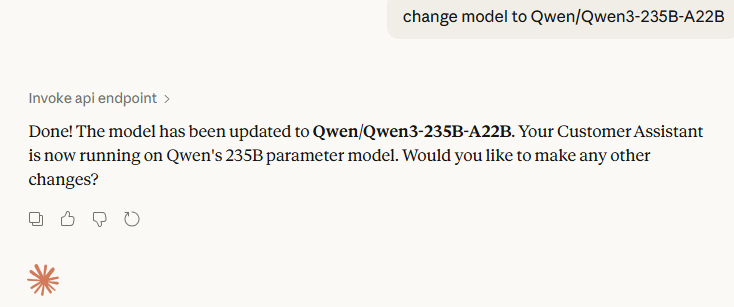

Change Model (example below)

A screenshot of a computerAI-generated content may be incorrect.

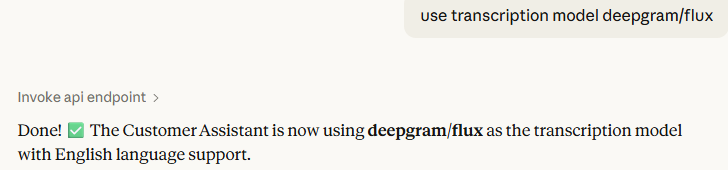

Change Transcription Model (example below)

A white background with black textAI-generated content may be incorrect.

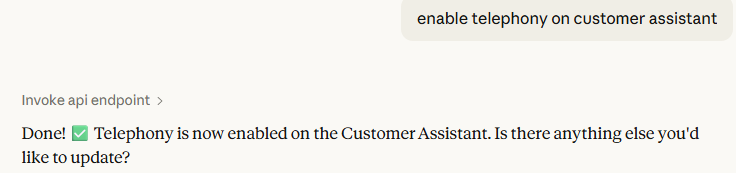

Enable Telephony (example below)

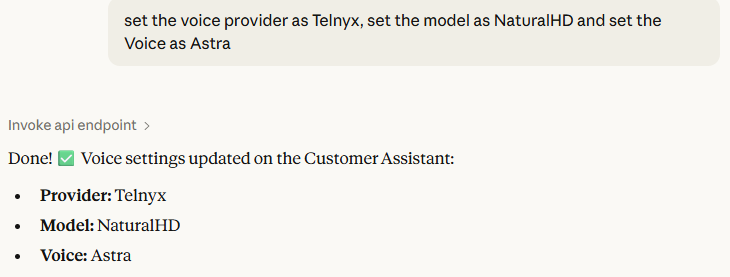

Change the Voice Provider and set the Model and Voice (example below)

A screenshot of a phoneAI-generated content may be incorrect.

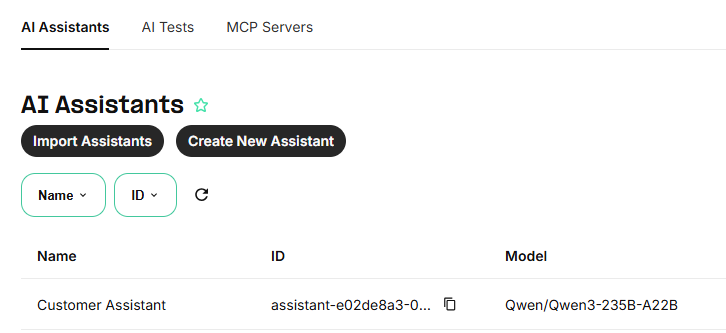

Check in Telnyx the AI assistant has been created

A screenshot of a computerAI-generated content may be incorrect.




Continue in Claude.ai chat to build-up the new AI assistant

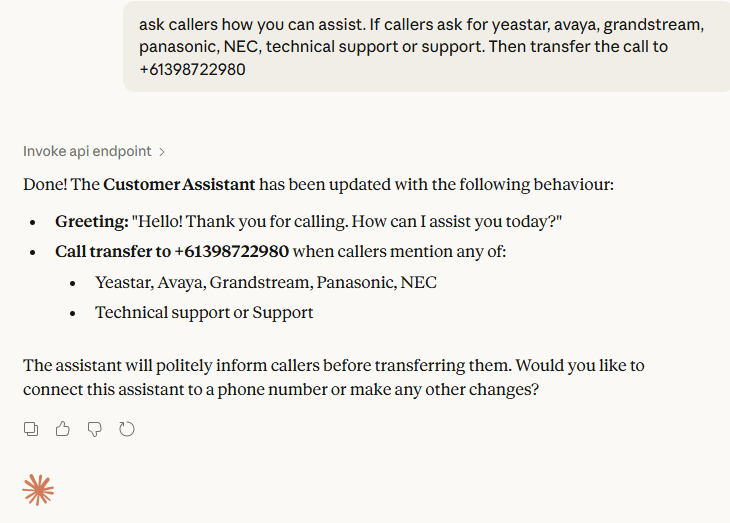

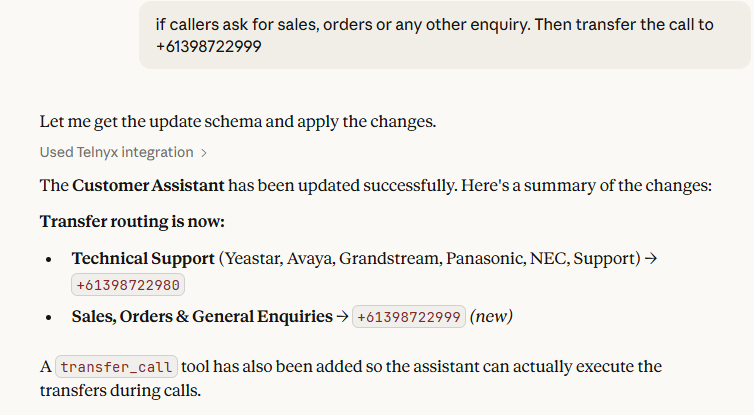

Create departments and people that the call can be transferred to (example below)




Continue to add additional instructions as required (example below)

A screenshot of a computerAI-generated content may be incorrect.




If the chat window closes (or you need to update at a later time

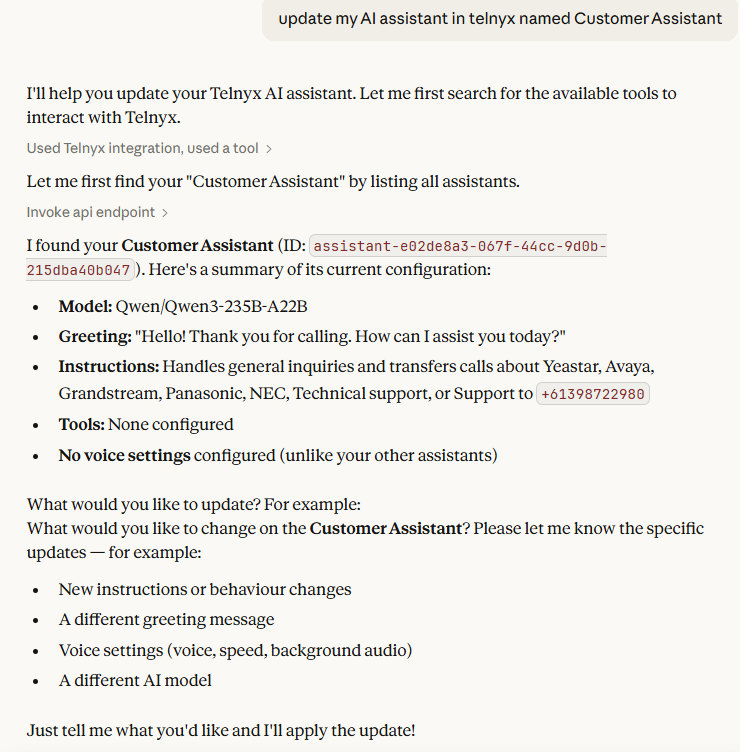

Open a new chat window and ask Claude to update the AI Assistant (example)




Assign a phone number to the AI Assistant


In Telynx portal, select Real-Time Communications, Numbers, Manage Numbers

To view your available numbers

A screenshot of a phoneAI-generated content may be incorrect.

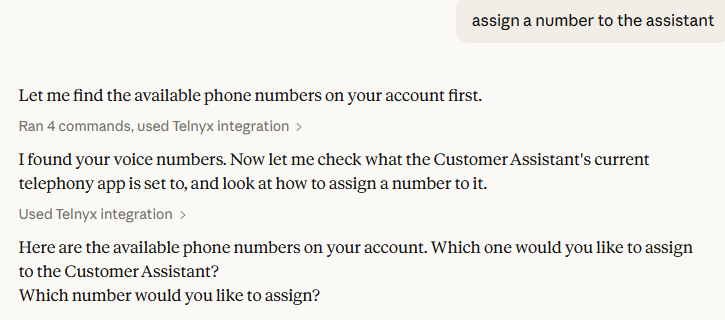

Ask Claude to assign a number to the AI assistant (example below)

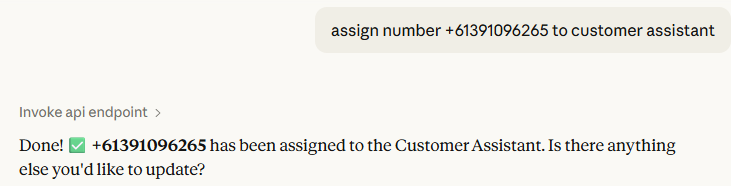

Assign the number required (example below)
