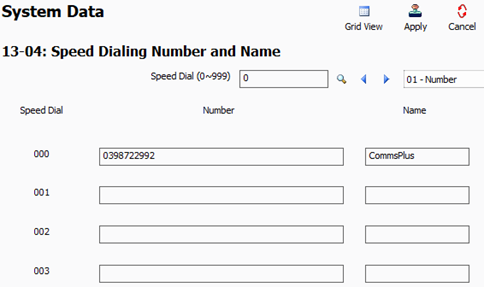

Speed Dials
The SL2100 has, 3 levels of Speed dials , Common, Group & Personal
§Common
and Group access the same 999 speed dial locations
§Common
speed dials by default speed dials 000 – 899
§There
are 50 group’s , none are programmed by default.
§Personal
speed dials do not effect
Common or Group.
§The
first 999 can be accessed via access code ( #2 , xxx )

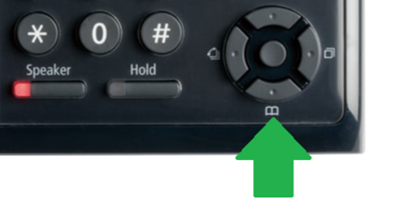

§The
down Navigation button is used to search the directory listing
§Navigation
will go through all Extension names & speed dial names
