NEC SV9100 SL2100 Toll Restriction
Toll Restriction:
By default all extensions including system extensions ( Voicemail ) are in Toll Class 2
It is recommended that all systems IDD & Info calls are blocked
Put extensions in appropriate class
All Permit tables are processed before Restrict tables ( if either are assigned )
By default all common speed dials bypass the toll restriction

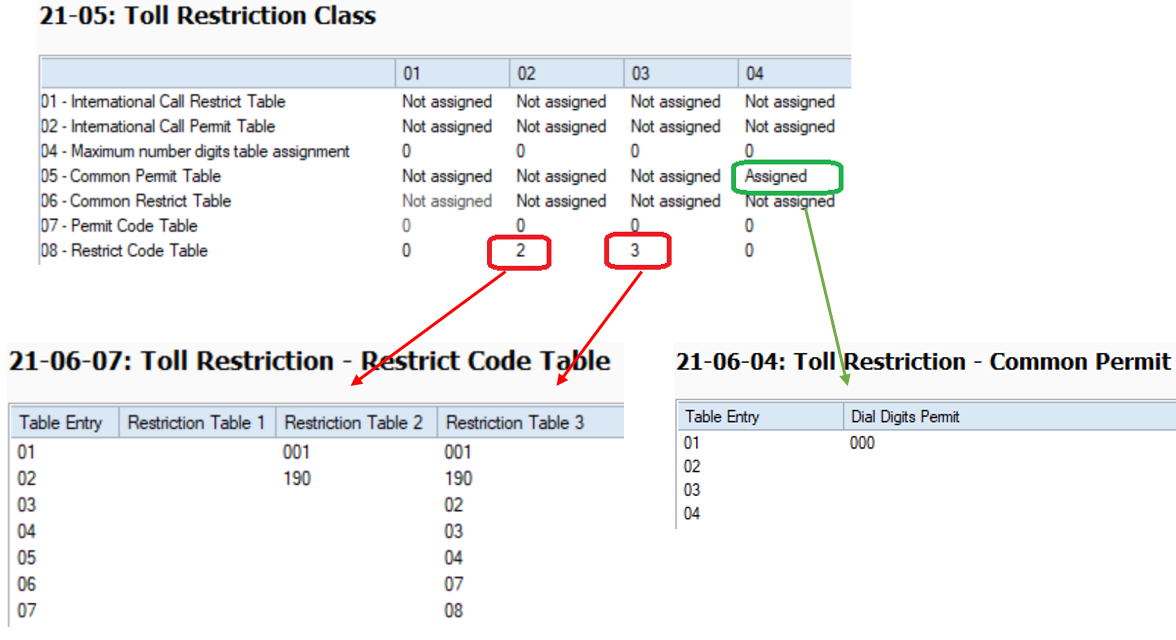

Example Toll restriction
-Class 1 = Full Access
-Class 2 = No IDD & Info calls
-Class 3 = No IDD, Info & National calls
-Class 4 = No calls ( except 000 )
Script available bellow
