NEC SV9100 SL2100 Overflow calls within a ring group or to another ring group

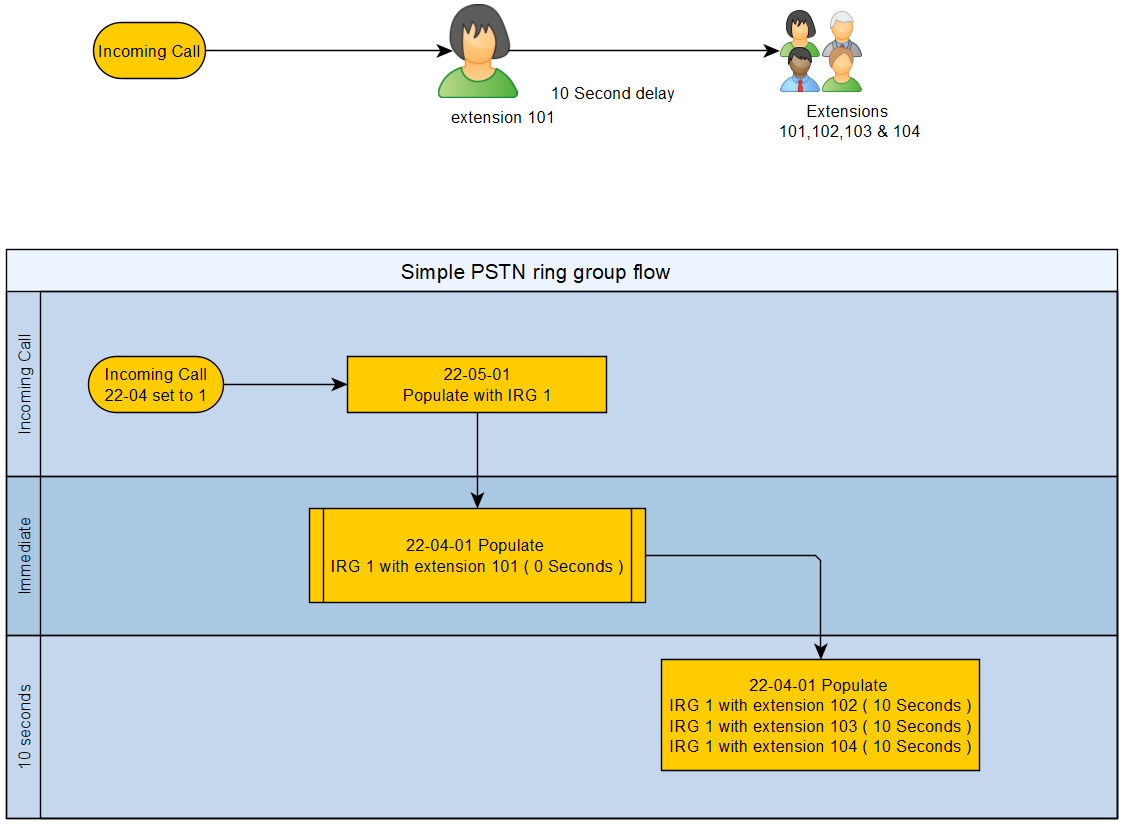

This call flow is how to program a NEC to terminate incoming calls one extension then overflow to more extensions
New Method:
V9100 CP20 & SL2100 V2.00+ have added delay members within a ring group, however the old method is still available and handy to overflow to Voicemail.

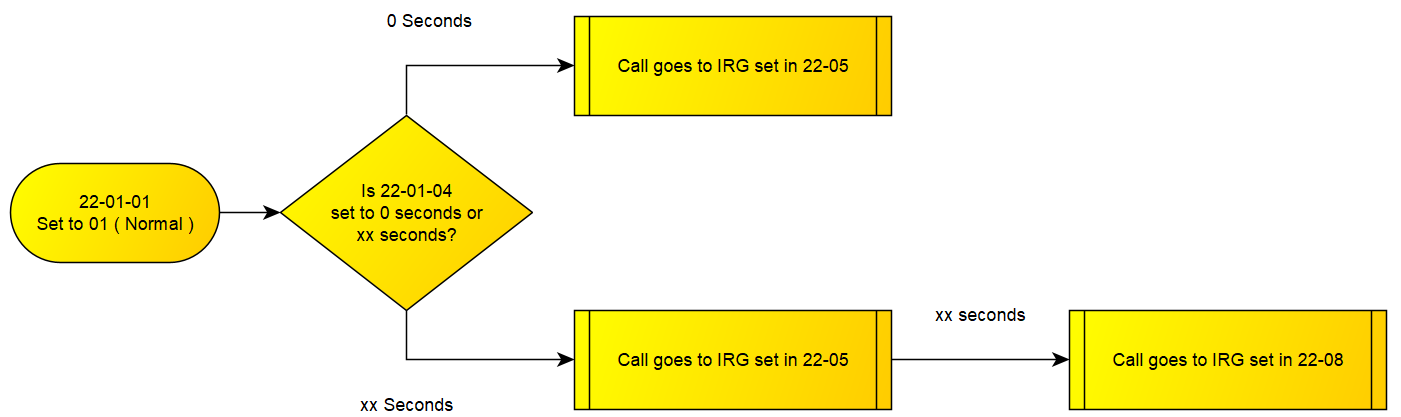

Old Method:
( Very limiting for PSTN trunks using the old method, this method uses a single overflow ring group, where a inbound call will flow from one ring group to the next , there is no option for a 3rd, 4th & so on. )
This method is a good option for overflow to Voicemail,
( unlike the new method, were extensions are added at the relevant time )
Use special ring group Number “102”.
Then set un-tagged call in 47-11 (tick override schedule, set to Station mailbox & set mailbox number)
This was the only method available on :
- SL1100
- SV8100
- SL2100 (Pre V2.00)
- SV9100 (CP10)
