EHS Headset Release Notes for the

DT330/730, DT430/830 and DT750 terminals

Table of Contents

1. EHS HEADSET DESCRIPTION    3
2. FEATURES    3

2. PART LIST    4
3. EHS CABLE PART NUMBER    4
4. EHS PICTURE    4

1. PLANTRONICS COMPATIBILITY    5
2. CS MODEL    5

3.2    SAVI 700    5

4.0 SYSTEM COMPATIBILITY    6

4.1 SV8100 & SV9100    6

3. DT300/DT700 EHS support on SV8100 & SV9100    6
4. DT400/DT800 EHS support on SV8100 & SV9100    6

2. RINGER LIMITATIONS    11
3. ITL TERMINALS HEADSET RING TONE SUPPORT    11
4. DTL TERMINALS HEADSET RING TONE SUPPORT    11

6.0    STEP BY STEP PROCEDURE FOR EHS HEADSET TO DT8XX/DT7XX/DT4XX/DT3XX    12

7.0    PROCEDURE FOR ENABLING EHS FUNCTION ON THE UNIVERGE SWITCH    13

0. EHS Headset Description

The following release note provides details about the new feature, enhancements, bug fixes and known limitations for the EHS functionality working on the ITL and DTL terminals.    EHS (Electronic Hook Switch) control allows for the answering/hanging up of calls via wireless headset that is connected to the ITL and DTL terminals.    There is no longer a requirement for a user to lift the handset or manually press the headset button on the NEC terminal to connect the voice path to the headset while receiving a call.

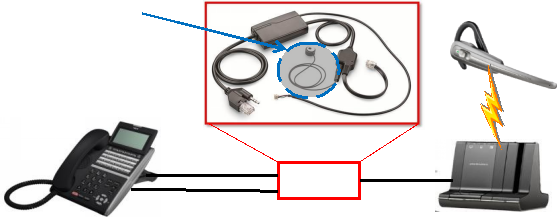

Microphone

It needs to detect a ringer on DT300/DT700.

For DT400/DT800 operating on SV8xxx/SV9xxx Microphone cable is NOT required.

DECT

(Up to 350 ft

/106m)

Voice Port connects to Headset Jack

Control Cable connects to Side 1 Connector

DT330/430 and DT730/830

Plantronics Headset

(The above shows Savi 745)

1. Features

2. Electronics Headset Switch (EHS) cable was designed specifically for NEC’s DT300/400 and DT700/800 terminal
3. Works with most wired to wireless Plantronics headsets.
4. EHS allows user to control On/Off hook function from the headset. User can answer/terminate calls via the control button of the headset.

2.0    Part List

2.1    EHS cable Part Number
NEC Part Number	Name	Description
680063	APN-91	Includes EHS Cable Includes Microphone

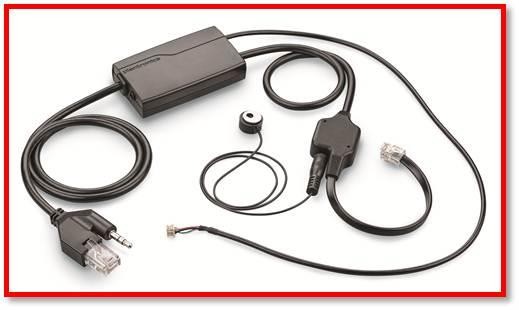

2.2    EHS Picture

0. Plantronics Compatibility

The following list of model headsets work with the EHS functionality

1. CS Model

1. CS500 Series
2. CS 500 XD Series

2. Savi 700

4.0    System Compatibility

The following table notes the specification for each UNIVERGE Switch and NEC terminal that allows for the EHS functionality to operate. The terminal should have the latest firmware load based on the publication of this document for proper operation. IP terminal firmware can be downloaded from the NTAC download section.

4.1    SV8100 & SV9100

4.1.2    DT300/DT700 EHS support on SV8100 & SV9100

Terminal Type

SV9100

SV8100

GCD- 8DLCA

GCD- 16DLCA

GPZ- 8DLCB

CD- 8DLCA

PZ- 8DLCB

CD-16DLCA

Digital

DT310

DTL-2E-1Tel

No

No

No

No

No

No

DTL-6DE-1 Tel

No

No

No

No

No

No

DTL-12E-1 Tel

No

No

No

No

No

No

DT330

DTL-12D-1 Tel

YES

YES

YES

YES

YES

YES

DTL-24D-1 Tel

YES

YES

YES

YES

YES

YES

DTL-32D-1Tel

No

No

No

No

No

No

DTL-8LD-1 Tel

YES

YES

YES

YES

YES

YES

Switch

SV9100

SV8100

IP

DT710

ITL-2E-1 Tel

No

No

ITL-6DE-1 Tel

No

No

ITL-8LDE-1 Tel

No

No

DT730

ITL-12D-1 Tel

YES

YES

ITL-12DG-1 Tel

YES

YES

ITL-12CG-1 Tel

YES

YES

ITL-24D-1 Tel

YES

YES

ITL-32D-1 Tel

No

No

ITL-8LD-1 Tel

No

No

DT750

ITL-320C-2 Tel

YES

YES

4.1.3    DT400/DT800 EHS support on SV8100 & SV9100

Terminal Type

SV9100

SV8100

GCD- 8DLCA

GCD- 16DLCA

GPZ- 8DLCB

CD- 8DLCA

PZ- 8DLCB

CD-16DLCA

Digital

DT410

DTZ-2E-1Tel

No

No

No

No

No

No

DTZ-6DE-1 Tel

No

No

No

No

No

No

DTZ-12E-1 Tel

No

No

No

No

No

No

DT430

DTZ-12D-1 Tel

Yes

Yes

Yes

Yes

Yes

Yes

DTZ-24D-1 Tel

Yes

Yes

Yes

Yes

Yes

Yes

DTZ-32D-1Tel

No

No

No

No

No

No

DTZ-8LD-1 Tel

Yes

Yes

Yes

Yes

Yes

Yes

Switch

SV9100

SV8100

IP

DT830

ITZ-12D-1 Tel

Yes

Yes

ITZ-24D-1 Tel

Yes

Yes

ITZ-32D-1 Tel

No

No

ITZ-8LD-1 Tel

Yes

Yes

DT830G

ITZ-12DG-1 Tel

Yes

Yes

ITZ-24DG-1 Tel

Yes

Yes

ITZ-32DG-1 Tel

No

No

ITZ-8LDG-1 Tel

Yes

Yes

5.0    Ringer Limitations

1. Ambient noise close and/or conversations close to the headset microphone may trigger beeps to be heard in the headset.
2. Reorder tone results in beeps heard in the headsets.

5.1    ITL Terminals Headset Ring Tone Support

Tone Type

Switch Type

SV8500/9500

SV8300/9300

SV8100/9100

Internal Call

External Call

Internal Call

External Call

Internal Call

External Call

Auto

NG

NG

OK

NG

OK

OK

Type 1

NG

NG

OK

NG

OK

OK

Type 2

NG

NG

OK

NG

OK

OK

Type 3

NG

NG

OK

NG

OK

OK

Type 4

NG

NG

OK

NG

OK

OK

Type 5

NG

NG

OK

NG

OK

OK

Type 6

NG

NG

OK

NG

OK

OK

Type 7

NG

NG

OK

NG

OK

OK

Type 8

NG

NG

OK

NG

OK

OK

Type 9

OK

OK

OK

OK

OK

OK

Type 10

NG

NG

OK

OK

OK

OK

Type 11

NG

NG

OK

NG

OK

OK

Type 12

NG

NG

OK

OK

OK

OK

Type 13

NG

NG

OK

OK

OK

OK

Type 14

NG

NG

OK

NG

OK

OK

5.2    DTL Terminals Headset Ring Tone Support

Tone Type

Switch Type

SV8500/9500

SV8300/9300

SV8100/9100

Internal Call

External Call

Internal Call

External Call

Internal Call

External Call

Auto

NG

N/A

**

**

***

***

Type 1

NG

N/A

OK

OK

OK

OK

Type 2

NG

N/A

OK

OK

OK

OK

Type 3

NG

N/A

OK

OK

OK

OK

Type 4

NG

N/A

OK

OK

OK

OK

Type 5

OK

N/A

OK

OK

OK

OK

Type 6

NG

N/A

OK

OK

NG

NG

Type 7

NG

N/A

OK

OK

NG

NG

Type 8

NG

N/A

NG

NG

NG

NG

Type 9

NG

N/A

NG

NG

NG

NG

Type 10

NG

N/A

NG

NG

NG

NG

Note: ** SV8300/9300 doesn’t support Auto tone setting. This setting in the menu is “Type 0” and it is supported. *** SV8100/9100 doesn’t’ support Auto tone setting. This setting in the menu is replaced by “High”, “Medium”, “Low” settings.    All of these settings are supported on the SV8100/9100.

0. Step by Step Procedure for EHS Headset to DT8xx/DT7xx/DT4xx/DT3xx

Attention: The power must be turned off to the terminal when connecting the EHS cable to the DT8xx/DT7xx/DT4xx/DT3xx.

Additional instructions (beyond what is noted below) will be provided with the headset purchase.

1. Connect the EHS cable to the microphone and indicator.

Microphone

Indicator

Microphone: Detects the ringer activation on the DT8xx/DT7xx/DT4xx/DT3xx. Upon detection, the headset provides a beep tone in the ear piece of the headset. Note: In order to enable detection, the NEC terminal must be conditioned to the appropriate ring type. Review ITL Terminals Headset Ring Tone Support and DTL Terminal headset Ring Tone Support for configuration assignments.

Indicator:    This provides an indication to the user that the headset is in use

2. Connect the EHS cable to the DT8xx/DT7xx/DT4xx/DT3xx Slot 1

Insert the EHS cable to side option connector (SIDE 1) and the headset module to the headset jack.

ATTENTION: Special attention should be given when connecting the EHS cable to side 1 of the terminal. The connector has groves that will allow the connector to fit easily into the port. Don’t jam (push) the connector in the port otherwise the connector will break.

3. Paste the microphone to the DT8xx/DT7xx/DT4xx/DT3xx

4. Connect the EHS Cable to the Headset base

5. Turn on the DT8xx/DT7xx/DT4xx/DT3xx and Headset Base unit

0. Procedure for Enabling EHS function on the UNIVERGE Switch

ATTENTION: EHS function can only be enabled when the headset function is assigned as a feature key.

1. SV8xxx switch environments require a specific key assignment for the headset feature key.
2. SV9xxx switch allow flexible location assignment for the headset feature key.

Programming for the headset key is detailed in the NEC switch programming manual.

-    Assign a headset feature key to the terminal in Function keys

Terminal Type        SV9100        SV8100

IP

12/24 key phone    Key 25-32        Key 25 only

8 Key phone        Key 25-32        Key 33 only

32 key phone        Key 25-32        Key 33 only

Digital Phones

12/24 key Phone    Key 25-32        Key 25 only

8 Key (LD)        Key 25-32        Key 33 only
