NEC- Comparing a current database against a default one - Faultfinding
NEC – What changes are on the System and compare to default- Faultfinding
Often on system ( especially on one you have inherited ) it is very hard to see what changes have been made on the system by previous installers
A simple way around this is to compare the data base to a default one
To do this
- Using PC pro log into a system or open a save

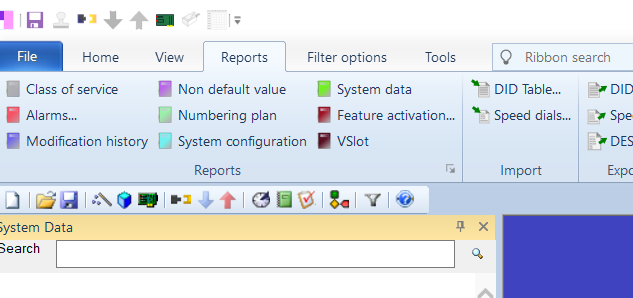

- Select reports
3.select Non Default Value .
Select all and generate
This will now show you the system database against a default one
