How to add an Call2teams user to a SV9100 / SL2100

Pre-requisite:

A Static Public IP for the NEC system

Port forward (default UDP 5070) on your external router to the LAN address of the CPU (10-12-09)

Port forward range (UDP 10020-10531) on your external router to the LAN address of the DSP (84-26-01).

SIP ALG disabled on the customers router

Hardware / License required:

SV9100:

	Quantity	Description
SV9100 CPU	1	System
GPZ-IPLE	1	VoIP Media card to convert RTP packets
BE114054-CP20	Per IP phone	SV9100 IP PHONE-01 LIC

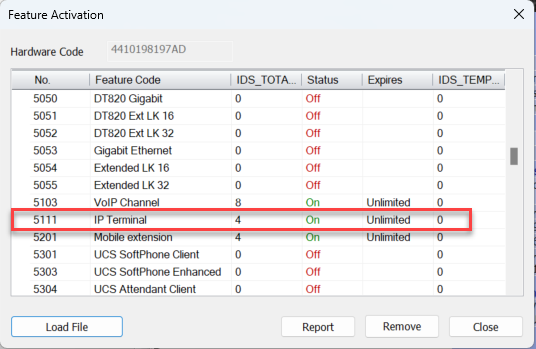

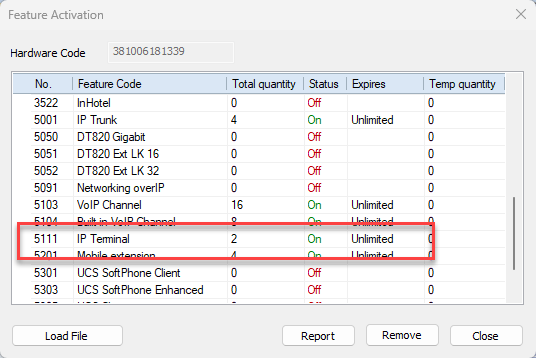

BE1114054-PC20 appears as a 5111 lic on the system:

SL2100:

	Quantity	Description
SL2100 System	1	System
IP7WW-VOIPDB-C1	?	VoIP Media card to convert RTP packets
BE116746	Per IP phone	IP Phone License

Note: for the SV2100 VOIPDB is only required if you need to exceed 8 VoIP channels

BE116746 appears as a 5111 Lic on the system

System Programming:

PRG 10-12-09    Valid IP address on the customers network

RRG 10-12-10    Subnet mask that matches the customers network

PRG 84-26-01    Valid IP address on the customers network ( by convention, one IP above 10-12-09 )

PRG 84-20-01    Change from default 5070 to a port number above 10,000 eg 10570

PRG 10-33-02    Enable Authentication Mode

Assign password to extension port

This feature is only available using PC Pro, HTTP access will only show extensions that has physical hardware attached ( Analogue blade , Digital blade or ports with a MAC address assigned )

In order to see “Unregistered” extension ports you must allow them to be viewed:

Open PCPro connect to the system and download the database then select:

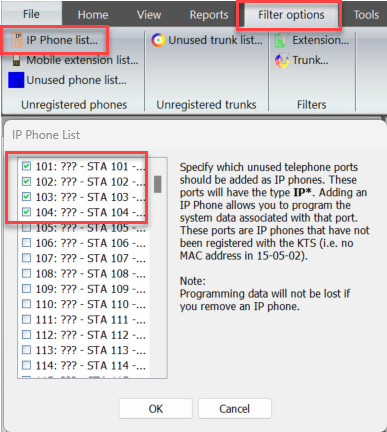

Filter options > IP Phone list > Select unused extension ports

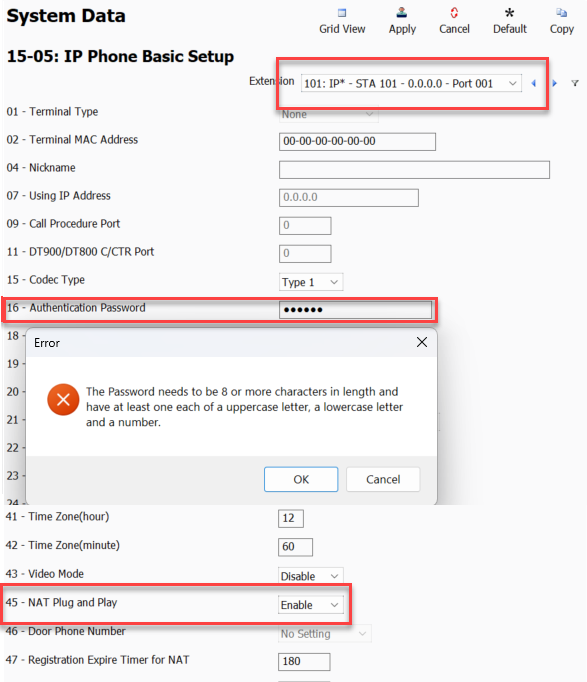

Assign a password in PRG 15-05-16, per extension

Enable NAT Plug and Play in PRG 15-05-45, per extension

Call2Teams Setup – PBX

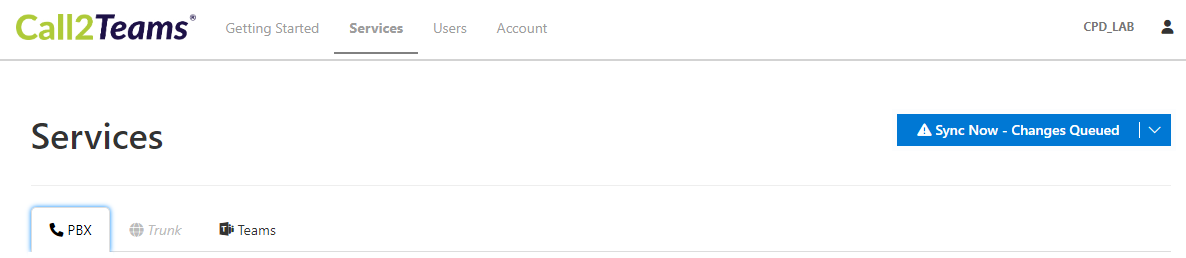

Select Services, PBX

Select Add Additional PBX

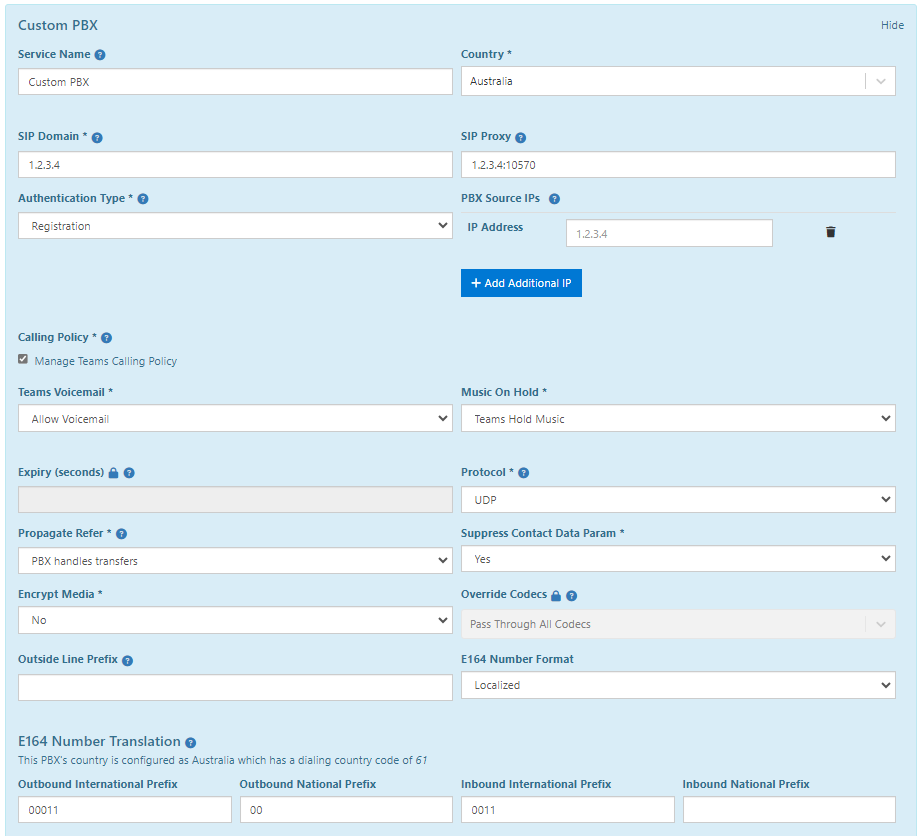

Setup the PBX details and select Add PBX, Select Custom

Enter a Service Name and set the Country.

In SIP Domain, enter the systems external IP Address

In SIP Proxy, enter the systems external IP Address : port number

Manage Calling Policy

E164 Number translation

Outbound International Prefix set to 00011

Outbound National Prefix set to 00

Inbound International Prefix set to 0011

Users

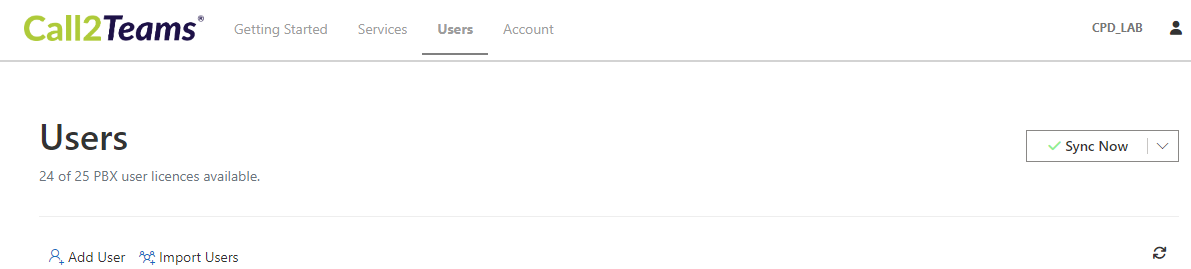

Select Add User

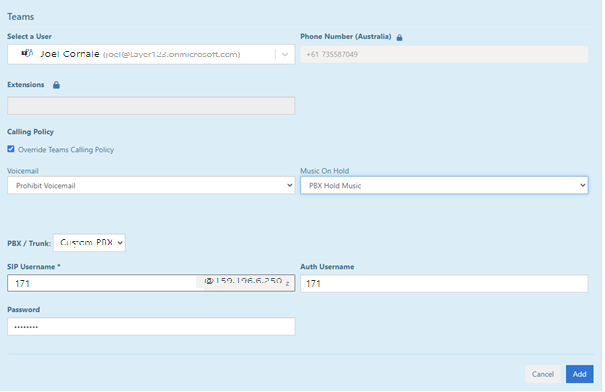

Select the User from the drop-down list.

Enter the Users phone number (this number is the one assigned to the User NEC system)

Select the PBX to register against

Set the SIP Username and Auth Username as the Extension Number in the NEC

Set the Password as the Extension Password in the NEC  (the User Login Code in the NEC should be the same)

Select Add

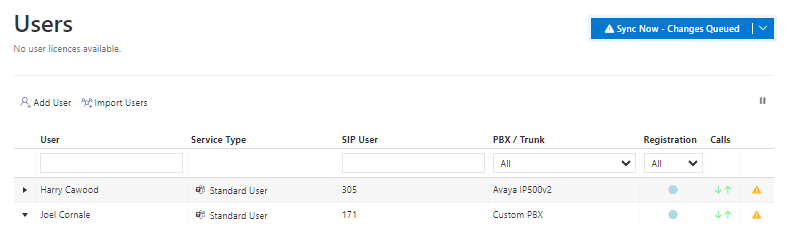

The User Registration will be green if registration to the PBX is successful.
