NEC -Dialing out on VE key for different CLI

NEC -Dialing out on VE key for different CLI

1. create a Virtual extension 11-04



2. show CLI info 15-18

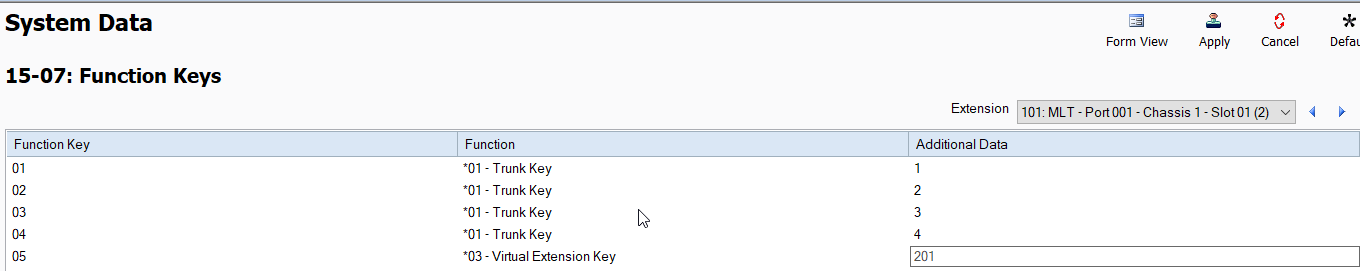

3. For the user who wants to use this feature give them a virtual Key 15-07







for the user who wants to use this feature set 15-02-21 to outgoing

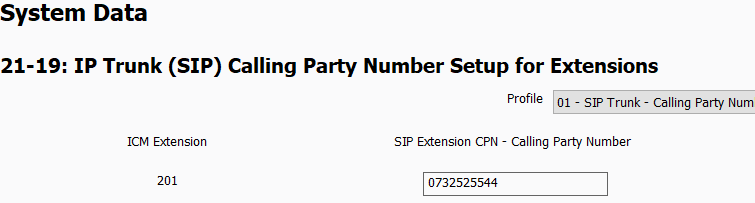

set the CLIP id you want to use on the VE key



you can now push the VE key dial 0 and make a call using this CLIP

test
