CPD FDX SIP Trunk Configuration

The following is for configuring FDX SIP trunks into Yeastar PBX

Requirements:

1. FDX SIP Trunk credentials
2. Yeastar PBX

Configuring Yeastar PBX

1. Add SIP Trunk in Yeastar PBX

1 Add Trunk - Yeastar P-Series

2. Configure SIP Trunk Parameters

Basic

  • Name: give this SIP trunk a name to help you identify it.
  • In the Select ITSP Template leave this as "General"
  • Make sure the trunk status is “Enabled”.

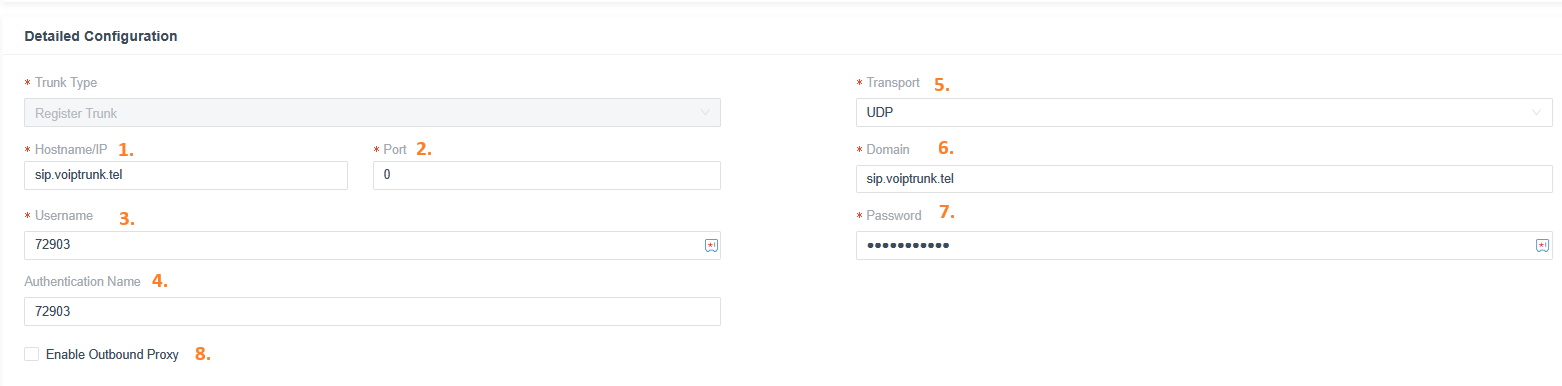

Detailed Configuration


  1. Hostname = sip.voiptrunk.tel
  2. Port = 0
  3. Username = Name provided by CommsPlus, will be the registration number (In this example 72903)
  4. Authentication Name = Same as Username provided by CommsPlus  (In this example 72903)
  5. Transport = UDP
  6. Domain = sip.voiptrunk.tel
  7. Password = Password provided by CommsPlus, will be the registration number
  8. Enable Outbound Proxy = L:eave this UNCHECKED

Advanced


Within Tab Advanced  -> VoIP Setting check the Qualify.



Info
When Qualify is enabled PBX will periodically send OPTION messages confirming SIP trunk is online" Keep Alives"

DIDs/DDIs

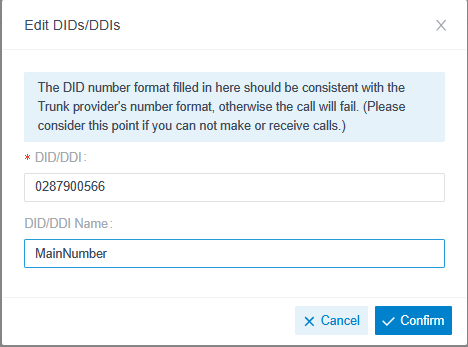

Add Associated DDI/DID numbers to the SIP Trunk there has to be a minimum of 1. If the DID is not added it will not ring to the PBX.

Info

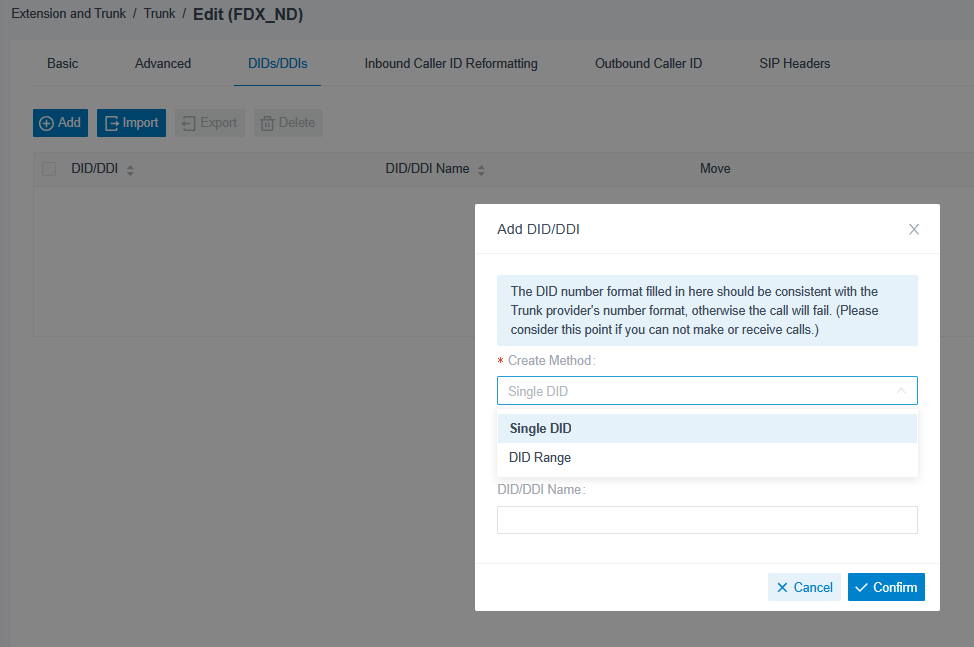

DID/DDI can be added singular or as a range


Numbering format for DID is E164


SIP Headers

Inbound Parameters

1. Get Caller ID From = From
2. Get DID From = To

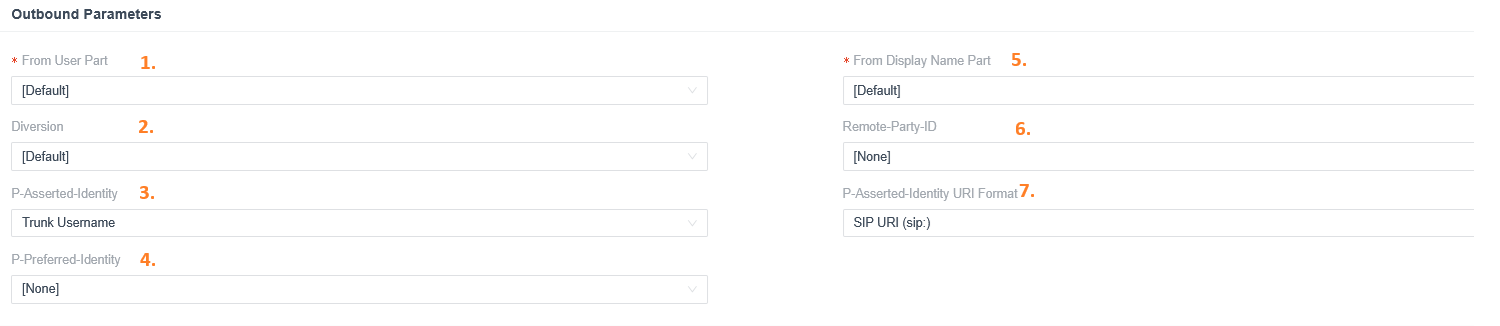

Outbound Parameter's

1. From User Part = [Default]
2. Diversion = [Default]
3. P-Asserted-Identity = Trunk Username
4. P-Preferred-Identity = [NONE]
5. From Display Name Part = [Default]
6. Remote-Party-ID = [NONE]
7. P-Asserted-Identity URI Format = SIP URI (sip:)

Caller ID Passthrough

Idea

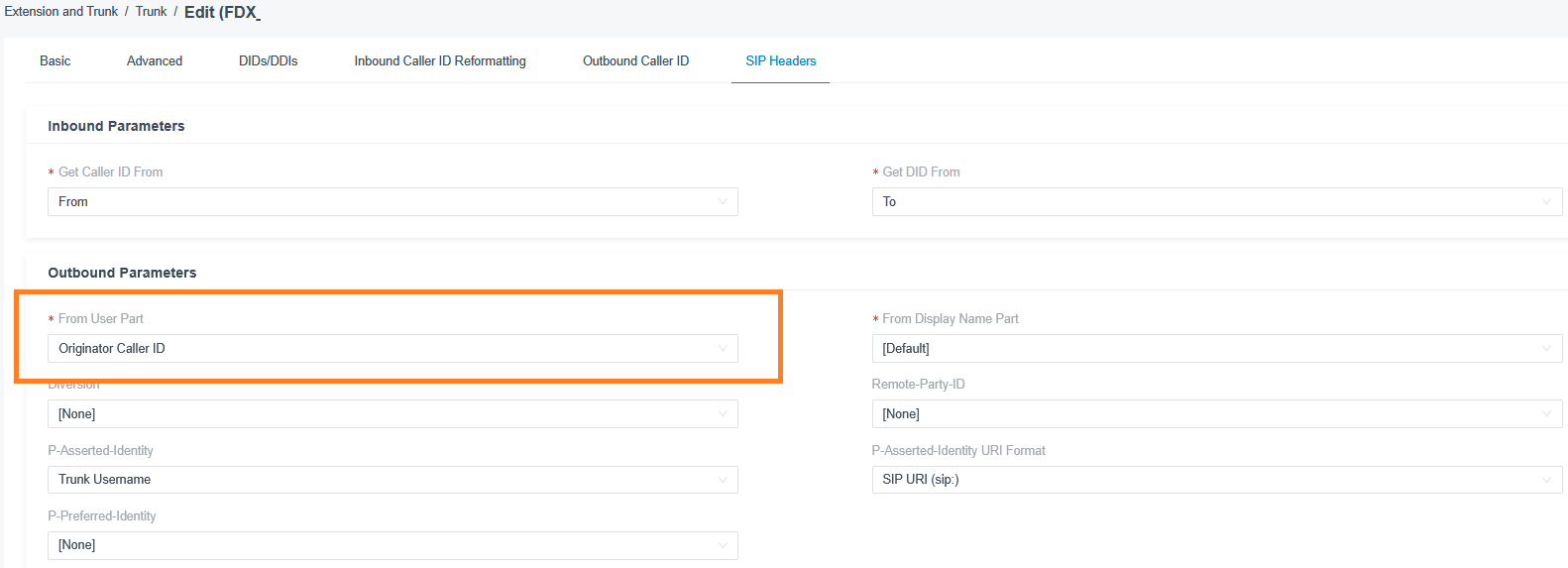

To pass caller ID through on forward, transferred call set the following, Set the parameter in the From User Part to be Originator Caller ID
