SV9100 - Mobile Twinning

Connect to NEC SV9100 via PC Pro

( PC pro must be used as this software can view un-equiped ends )

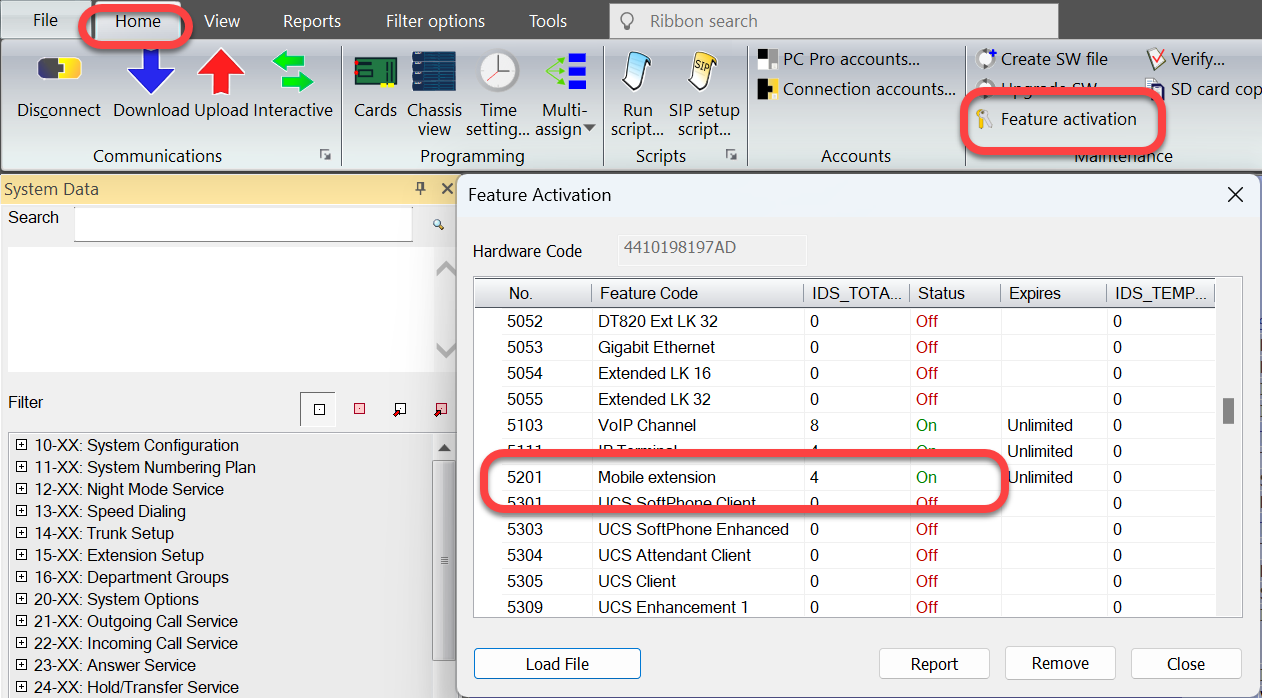

The SV9100 MUST have a Mobile Extension license per extension

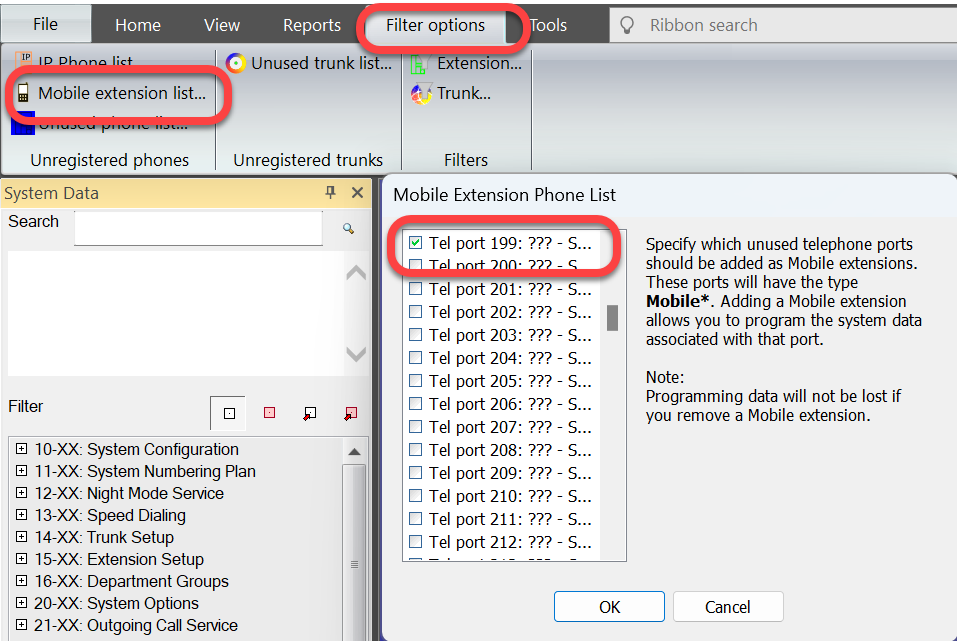

In this example I’m using extension 199 as the mobile extension ,
199 must exist in the system numbering plan 11-02.

Graphical user interface, text, application, chat or text messageDescription automatically generated

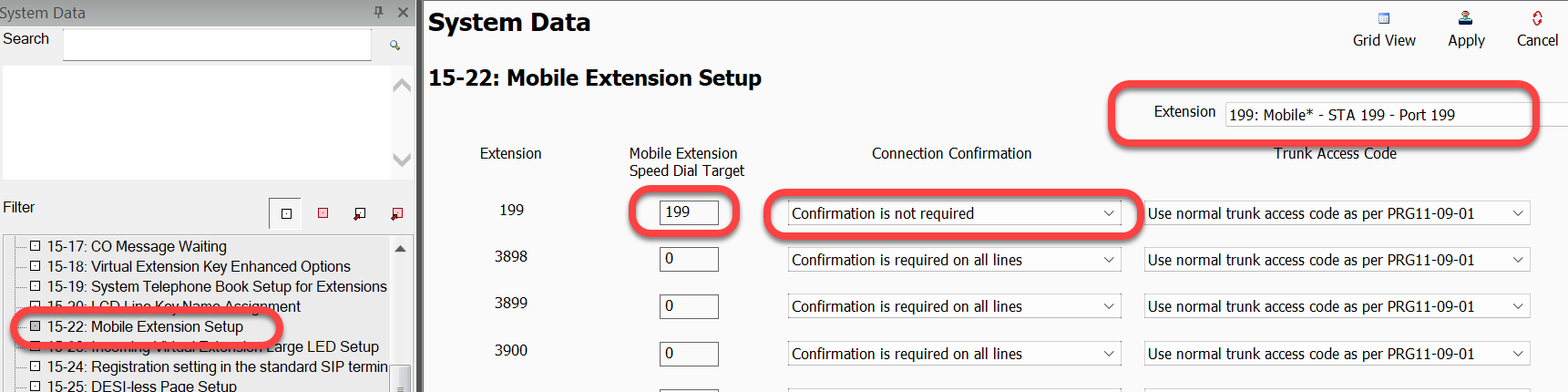

Set extension 199 to use speed dial 199 ( PRG 15-22 )

Graphical user interface, applicationDescription automatically generated

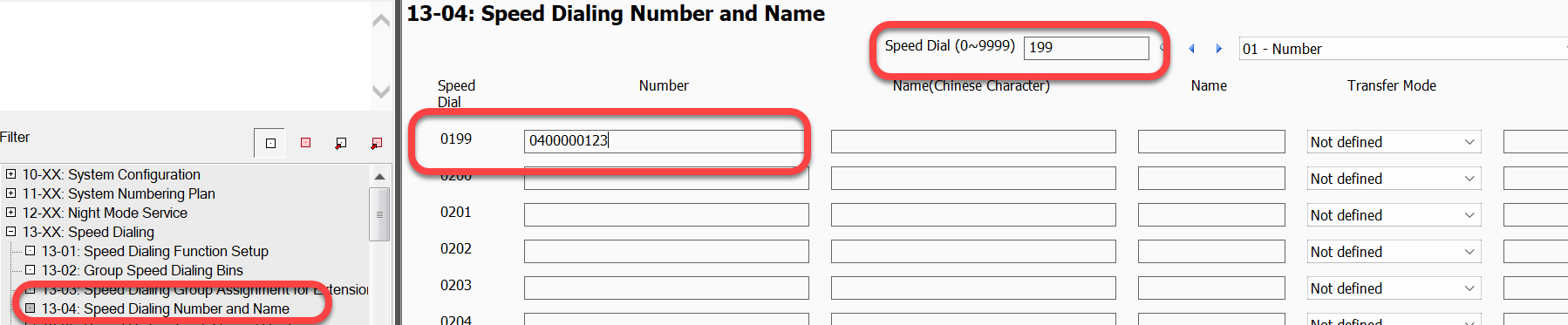

Set Speed dial location to external number ( PRG 13-04 )

Graphical user interface, text, application, tableDescription automatically generated
