Avaya IPO Voicemail Pro Pass-through Original Callers CLI
Avaya IPO Voicemail Pro Pass-through Original Callers CLI
Incoming Call Route to Voicemail Pro Module
Voicemail Pro Module Transfer Option to External Number Prefix with *9

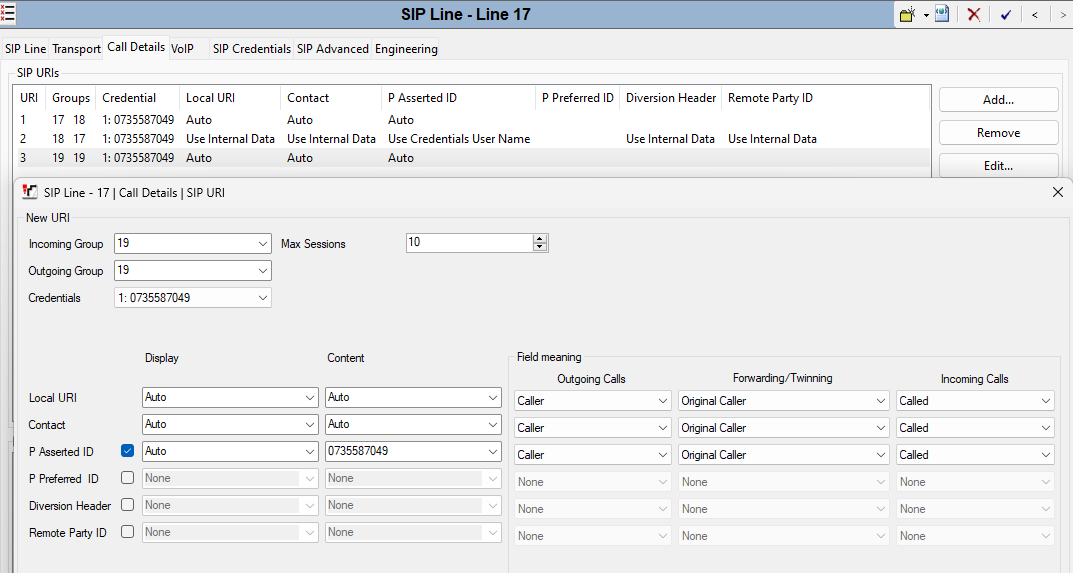

Create a new SIP URI in SIP Line using a new Outgoing Group ID number

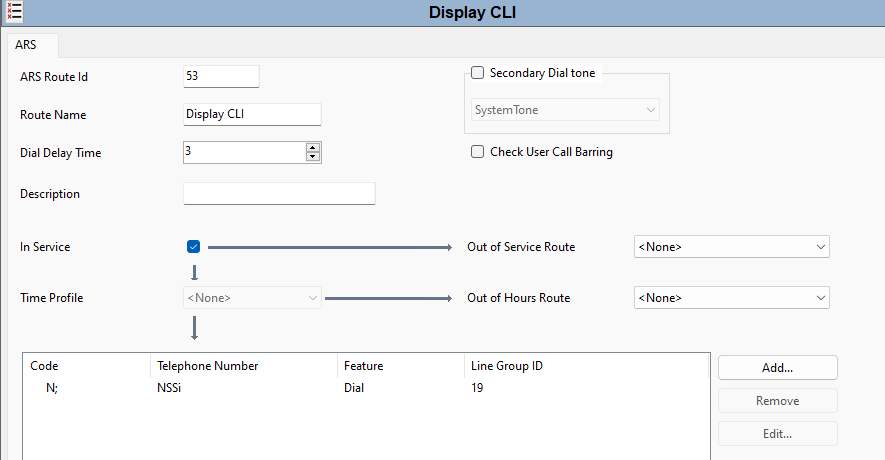

Create a new ARS with the below
Code: N;
Telephone Number: NSSi
Feature: Dial
Line Group ID: 19
Create a Shortcode
Code: *9N
Feature: Dial
Telephone Number: N
Line Group ID: New ARS
