Flow Designer SIP Trunk Flow

Flow designer enables the allocation of numbers to SIP Trunks. Within Flow Designer there are additional programmable options.

Creating New Flow for SIP Trunk

The flow designer is to configure the number with parameters to become a SIP trunk.

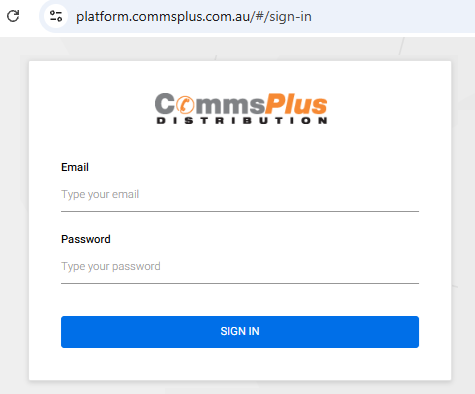

Logon onto CPD SIP trunk portal https://platform.commsplus.com.au using your partner credentials

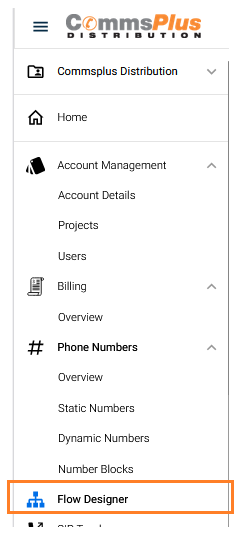

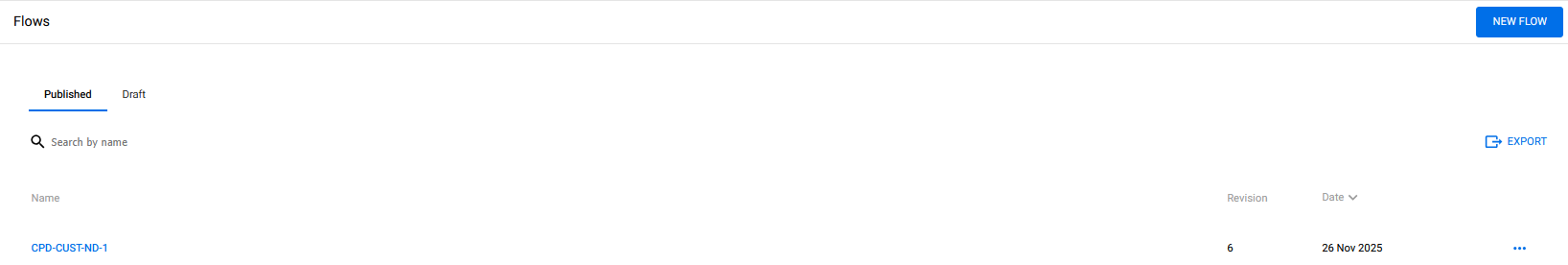

Once logged in go to Flow Designer -> New Flow And select New Flow

Create New Flow and name

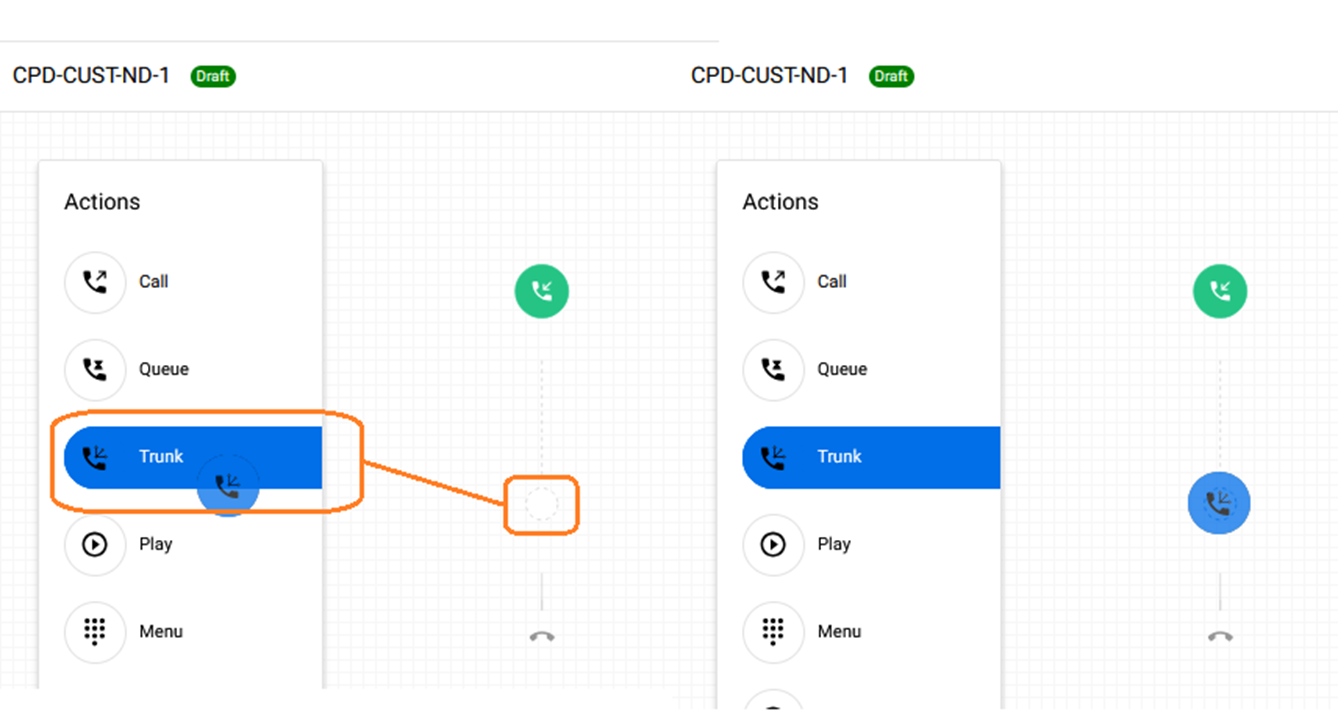

This will take you to flow designer. Drag and drop Trunk to the flow


Set the following
1. SIP Trunk Created
2. CLI format
3. Save the configuration


Warning
0NSN is currently not available, If chosen number format will still be in E164. This is raised and will update when available

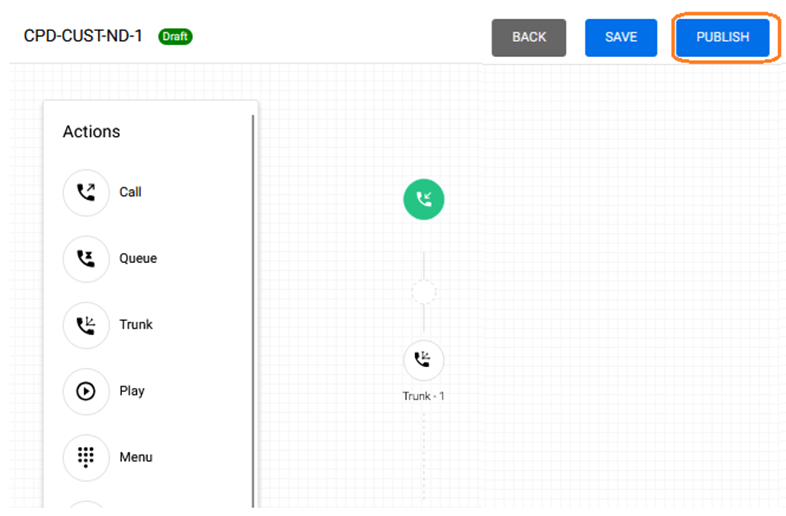

Publish the flow to activate

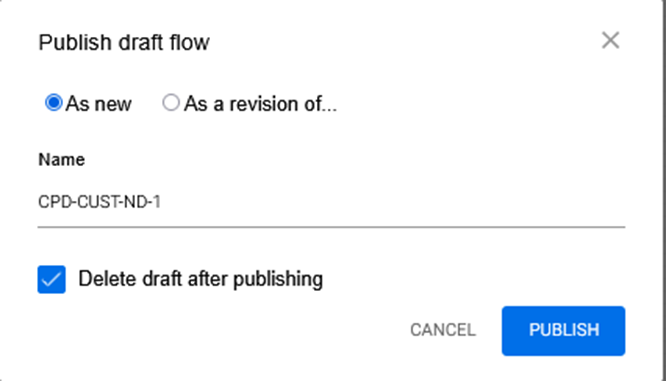

This will prompt to save as a new flow.

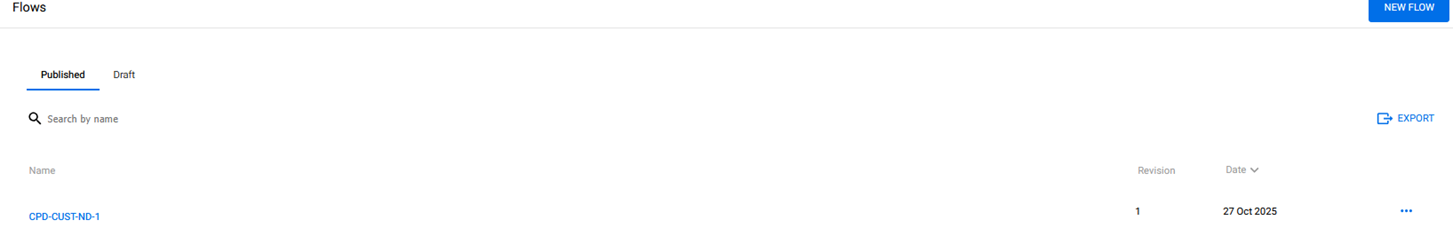

Once published and saved you can view the trunk is ready for use.




Assign Trunk to Flow

Confirm trunk as assigned.
#Phone Numbers -> Static Numbers

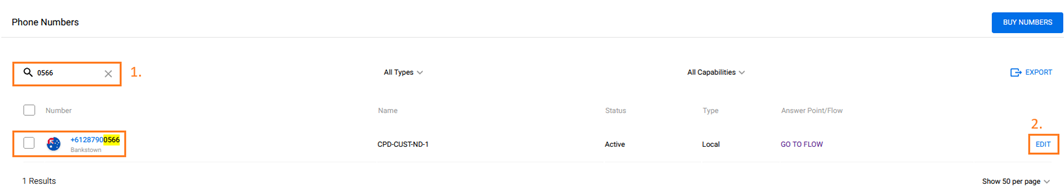

Find number, you can search by entering in the magnifying glass field.
1. Enter number to search, Can be partial
2. Select Edit

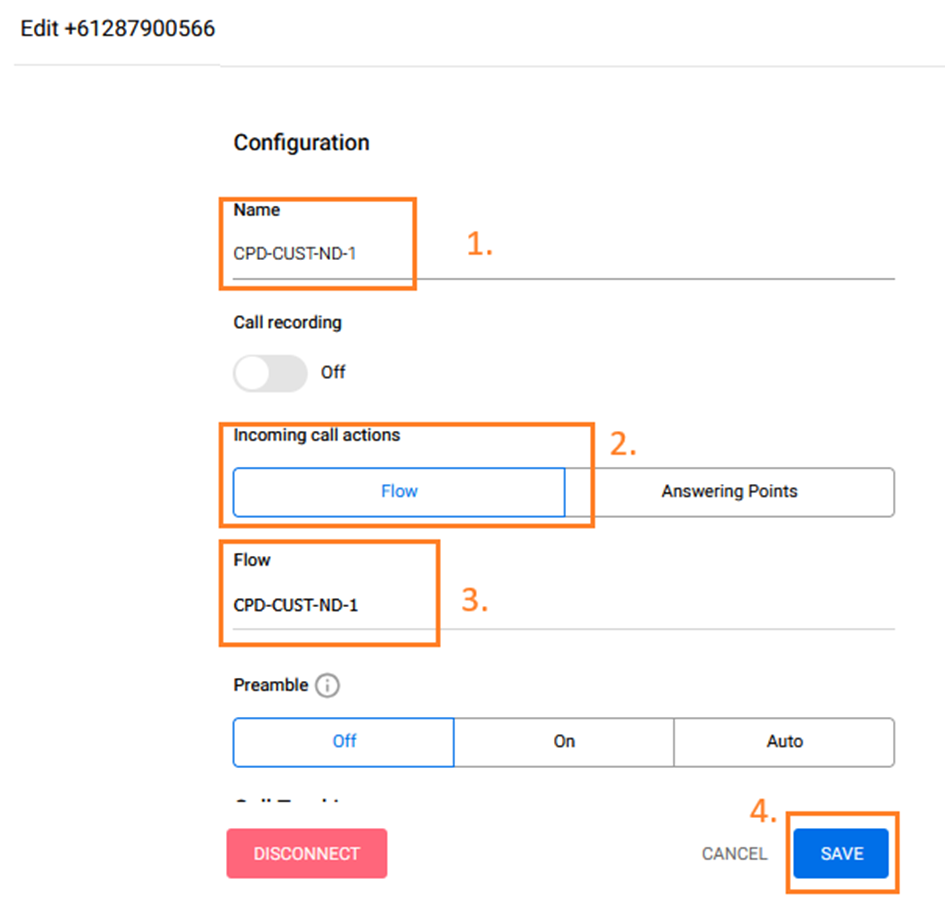

Confirm the following



1. Name is as required


2. Incoming Call Actions is FLOW

3. Flow is set to the created FLOW for the trunk

4. Select SAVE if any changes made to apply

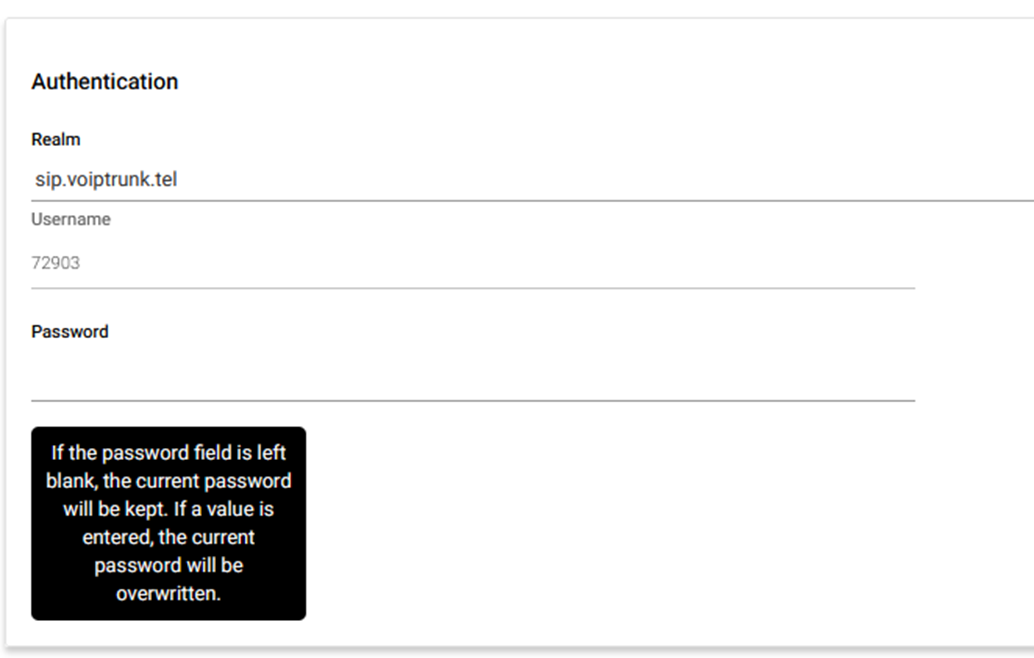

You can now use the credentials created in the SIP trunk to register the trunk.
