Avaya IX Workplace Softphone Setup for Avaya IP Office 500v2 – Internal Only (No Certificates)

Program Avaya IP Office 500v2 System

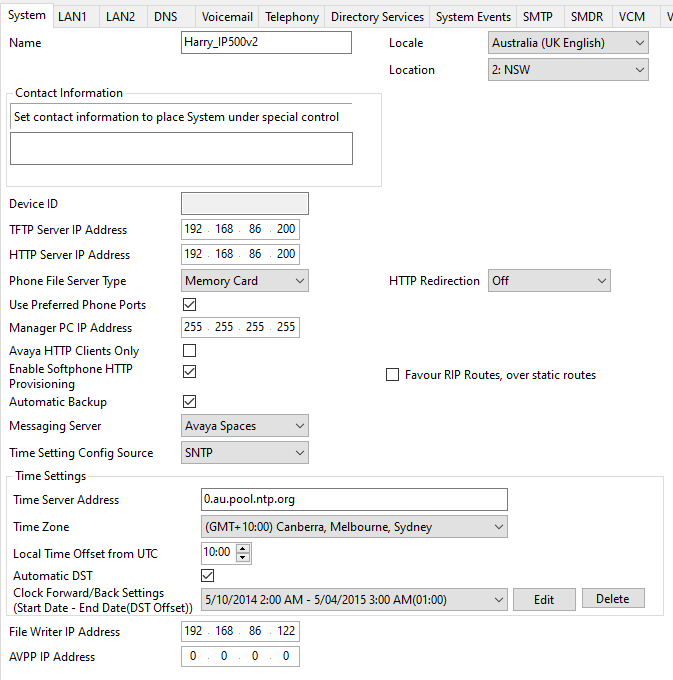

System, System Tab

Use Preferred Phone Ports can be enabled if you require, this will mean you will need to use the port 8411 to access the 46xxsettings.txt file of the system (this is referenced later in the document)

It also means port 443 is not required to be used

Messaging Server should be set to Avaya Spaces (to allow instant messaging to be stored in Avaya Spaces)

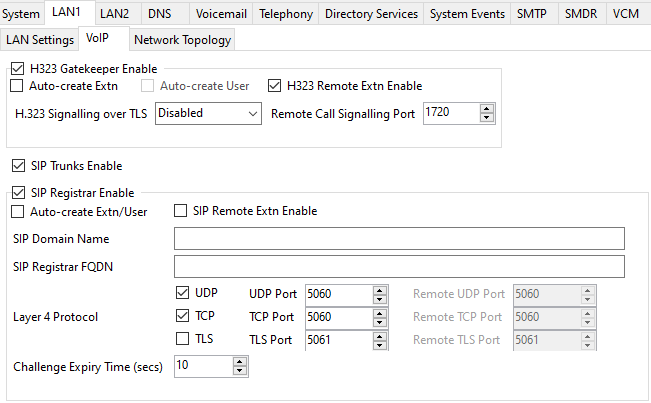

System LAN1, VoIP Tab: SIP Registrar Enable – ticked

System LAN1, VoIP Tab: SIP Registrar FQDN - Enter the Public IP address, to which the SIP endpoint should send its registration request. This address must be the external IP address of the router that uses the same public IP address programmed in the Avaya phone system (this router will also contain the port forwarding to the Avaya phone system IP address)

System LAN1, VoIP Tab: UDP – enabled – set UDP Port to 5060 and Remote UDP Port to 5060

System LAN1, VoIP Tab: TCP – enabled – set TCP Port to 5060 and Remote TCP Port to 5060

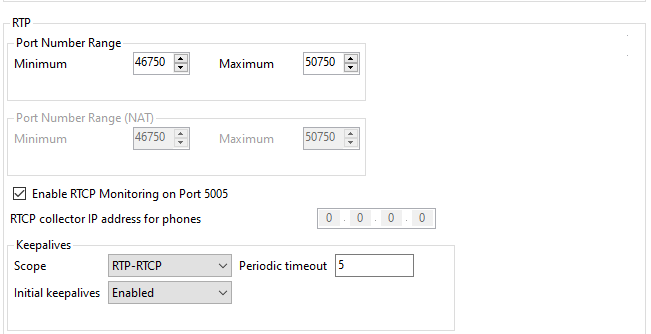

System LAN1, VoIP Tab: RTP Port Number Range - Minimum 46750, Maximum 50750

System LAN1, VoIP Tab: Port Number Range (NAT) – Minimum 46750, Maximum 50750 (this is only when SIP Extn Remote is enabled)

System LAN1, VoIP Tab: Enable RTCP Monitoring on Port 5005 – Enabled

System LAN1, VoIP Tab: Scope – RTP-RTCP

System LAN1, VoIP Tab: Initial Keepalives – Enabled

System LAN1, VoIP Tab: Periodic Timeout - 5

NOTE

RTP ports are used for voice traffic (2 ports from the range are used at random when a call is established for inbound/outbound voice traffic)

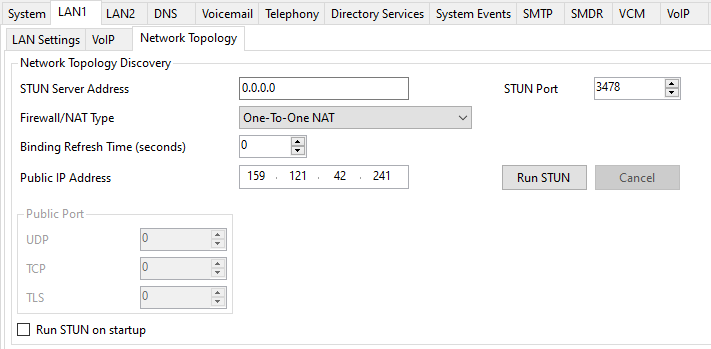

System LAN1, Network Topology Tab: STUN Server Address - IP Address of STUN Server 0.0.0.0

System LAN1, Network Topology Tab: Firewall/NAT Type – One-To-One NAT

System LAN1, Network Topology Tab: Binding Refresh Time (seconds) – 0

System LAN1, Network Topology Tab: Public IP Address – Customers Public IP Address

System LAN1, Network Topology Tab: Stun Port: 19302

System LAN1, Network Topology Tab: Public Port UDP – 5060 (this will be blanked out)

System LAN1, Network Topology Tab: Public Port TCP – 5060 (this will be blanked out)

A STUN server might be required on some networks. In our example we are not using a STUN Server Address and the Firewall/NAT Type is One-To-One NAT which means the internal port and external ports are the same

If you would like to use different ports for internal and external, then another Firewall/NAT Type would need to be selected to allow the external (Public Ports) to be configured

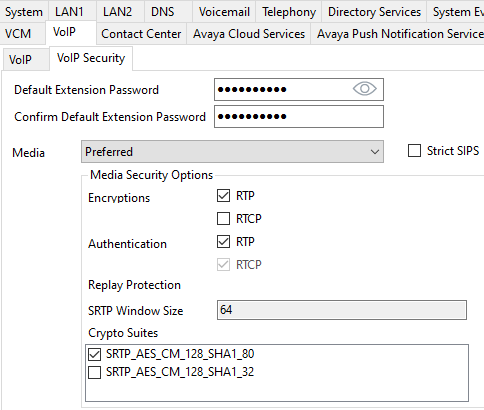

System, VoIP, VoIP Security: Set Media Security to Preferred

System, Avaya Cloud Services

If Avaya Spaces will not be used (which hosts the chat in IX Workplace then this can be Disabled so the chat functionality and Spaces Sign In will not display on the IX Workplace main screen

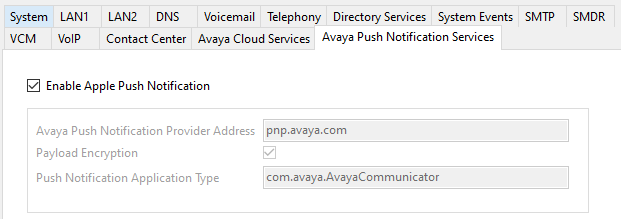

System, Avaya Push Notification Services: Enable Apple Push Notification

Create User

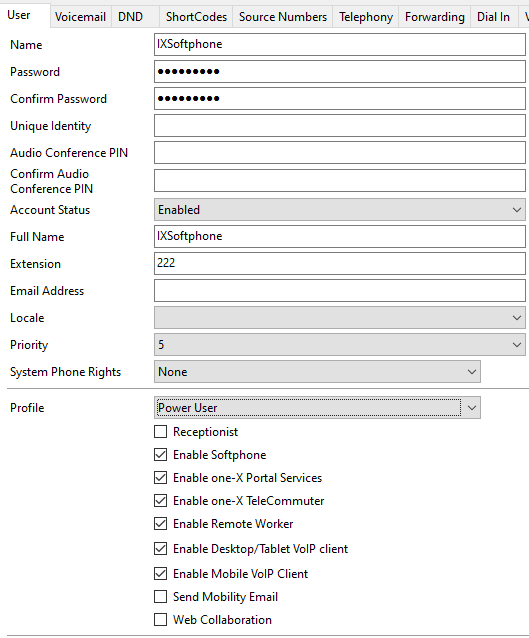

User, User Tab: Name – Enter Username

User, User Tab: Password – Enter Password (this password will be used by IX Workplace Softphone)

User, User Tab: Account Status – Enabled

User, User Tab: Full Name – Enter Full Name

User, User Tab: Extension – Enter Extension Number

User, User Tab: Email Address – Enter Email Address

User, User Tab: Profile – Power User (confirm the boxes are ticked as they show below)

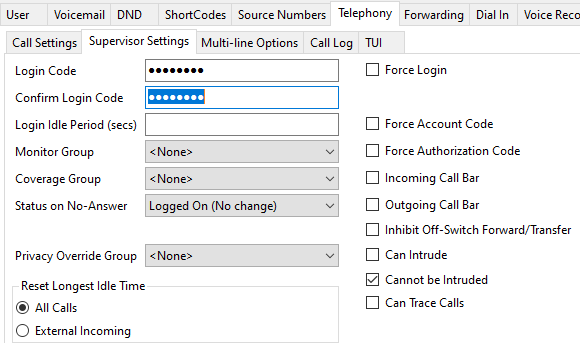

User, Telephony, Supervisor Settings Tab: Login Code – Enter Login Code and Confirm Login Code

User, SIP Tab: SIP Name - Enter the telephone number to display on outbound calls

User, SIP Tab: Contact - Enter the telephone number to display on outbound calls

Select OK to create the user

Create SIP Extension

Once the User has been created, if prompted

Create a SIP Extension

Enter the Phone Password to match the User Login Code

Select OK

Extension – Check and confirm there is a SIP Extension created to match the Users extension number

If not, then create a SIP Extension

Set the Base Extension number to match the User extension number

Set the Phone Password to match the User Login Code

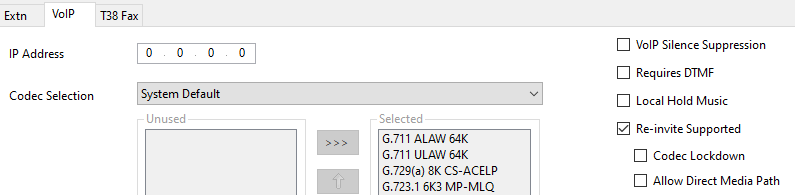

Select the VoIP tab and Disable Allow Direct Media Path

Select OK to create the Extension

Save Configuration and Reboot the System

Select File, Save Configuration

Select Immediate (to save and restart the system immediately) or When Free (to save and restart the system when all calls and lines are not in use)

Delete the 46xxsettings.txt File (manually configure 46xxspecials.txt file if required)

The 46xxsettings file is auto generated by the IP Office 500v2 system as default

It contains the details of the system programming

In Manager

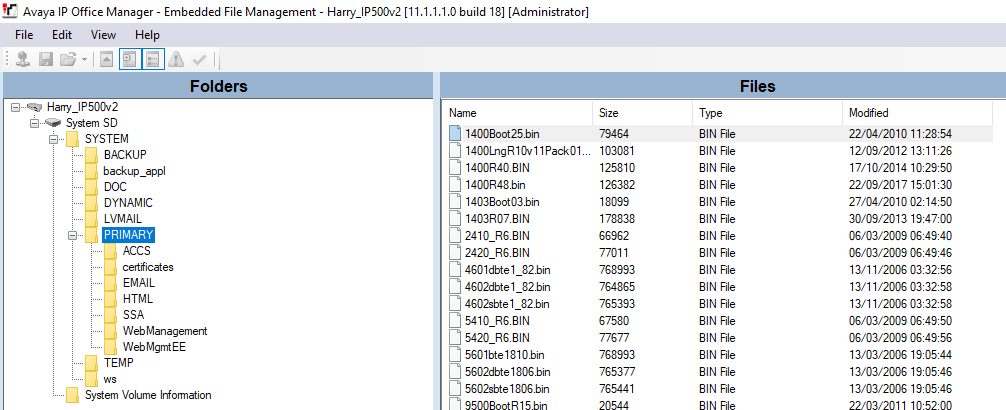

Select File, Advanced, Embedded File Management

Select the system and login

Select System SD, SYSTEM, PRIMARY

Check the files in the Primary folder and confirm there is not one named 46xxsettings

If there is a 46xxsettings file, then download the file first, then delete the file

NOTE

Systems on older versions had this file as default

The file could have been created and programmed with manual settings on an existing system

If this file is in the Primary folder, it will be used instead of the auto generated file

This will mean the details in the system programming (such as SIP Domain and FQDN) will not be reflected in this 46xxsettings file unless the file has been manually updated to reflect the new programming

It is recommended to delete the 46xxsettings file from the Primary folder

Any manual settings that were in the deleted 46xxsettings or any manual settings required can be added to the 46xxspecials file

The command GET 46xxspecials.txt appears as the last line of the auto-generated 46xxsettings.txt file requested by phones, which means phones will check this file for any manual settings

The 46xxspecials.txt file needs to be manually created and then placed in the Primary folder

To obtain an example, you can browse to http://AvayaLocalIPAddress/46xxspecials.txt to obtain an empty file.

Save and edit that file with the manual settings required before uploading it back to the Primary folder

Check 46xxsettings.txt File

Browse to http://AvayaLocalIPAddress/46xxsettings.txt

Confirm the first line has the correct details and is AUTOGENERATED

## IPOFFICE/11.1.1.1.0 build 18 192.168.86.200 AUTOGENERATED

Confirm the details in the below settings are correct

# SIPXAUTOGENERATEDSETTINGS

IF $SIG_IN_USE SEQ H323 GOTO 96X1AUTOGENERATEDSETTINGS

SET RTP_PORT_LOW 46750

SET RTP_PORT_RANGE 4002

SET TLSSRVRID 0

SET ENABLE_G711A 1

SET ENABLE_G711U 1

SET ENABLE_G729 1

SET ENABLE_G722 0

SET ENABLE_G726 0

SET ENABLE_OPUS 0

SET DTMF_PAYLOAD_TYPE 101

SET SIPDOMAIN 192.168.86.200

SET ENFORCE_SIPS_URI 0

SET DSCPAUD 46

SET DSCPSIG 34

SET TLSSRVR 192.168.86.200

SET TLSPORT 411

SET HTTPPORT 80

SET TRUSTCERTS WebRootCA.pem

SET COUNTRY Australia

# STIMULUSPHONECOMMONSETTINGS

# STIMULUSPHONECOMMONSETTINGS

SET SIP_CONTROLLER_LIST 192.168.86.200:5060;transport=tcp

SET AUTH 0

SET MEDIA_PRESERVATION 1

SET PRESERVED_CONNECTION_DURATION 120

SET MEDIAENCRYPTION 9

# EQNXAUTOGENERATEDSETTINGS

SET AUDIO_DEVICE_CALL_CONTROL_ENABLED 1

GOTO NONAUTOGENERATEDSETTINGS

# EQNXIOSSPECIFICSETTINGS

SET PUSH_NOTIFICATION_ENABLED 1

SET TELEPHONY_PUSH_NOTIFICATION_SERVICE_URL "https://192.168.86.200:8411/PushNotification"

IX Workplace Login

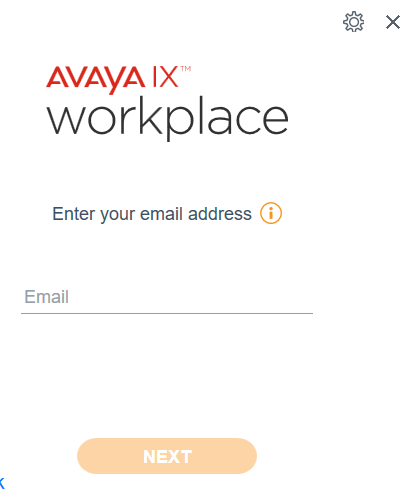

Open the IX Workplace software

Select Configure my account

(If the email is registered with a company in Avaya Spaces)

Select Next

If your email address is not registered with Avaya Spaces

Select the settings icon and select Use Web Address

Enter https://AvayaLocalIPAddress /46xxsettings.txt

Or use port 8411 if the above fails to connect

https://AvayaLocalIPAddress:8411/46xxsettings.txt

Select Next

Enter the User Extension Number

Enter the User Password (not login code)

Select Next

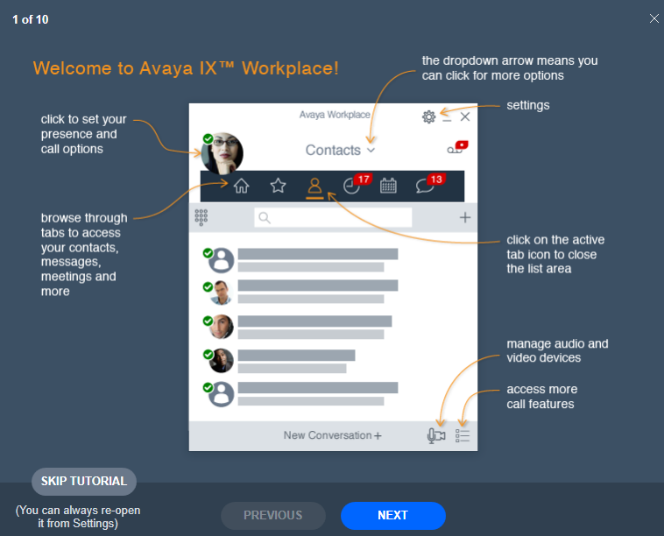

Select Next to view the tutorial pages and Done when finished to close the tutorial



Or select Skip to close the tutorial

NOTE

You can then select the settings icon (top right)

Select support and Open Tutorial to view the tutorial again

Confirm the green tick icon in the top left displays to confirm the IX Workplace has registered with the system and presence is working

Confirm there are no red warning icons on the top bar

If the red warning icons displays, then select the icon to view details of the error

Example: If an update is required, apply the update and the IX Workplace will re-login

Any error will require troubleshooting to fix the issues

System Status

In Manager

Select File, Advanced, System Status

Login to System Status and select Extensions to check and confirm the IX Workplace has registered to the system
