Yeastar - Adjust Function Page Key Count Fanvil V67

The following will guide you in setting the amount of visible function key pages available on the end devices.

To adjust the Function Page Key count to the CFG file. This example entry is to changed to 2.

Parameter being added to “Customize Configuration Parameters in Text” field

<DSSKEY CONFIG MODULE>

FuncKey Page Num   :2

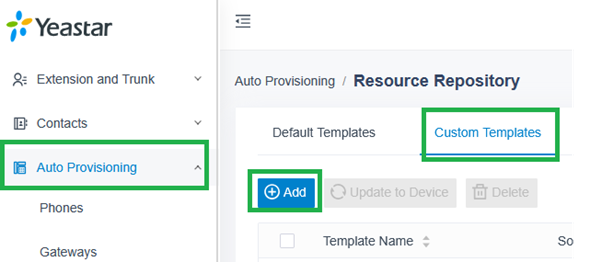

Create a new template:

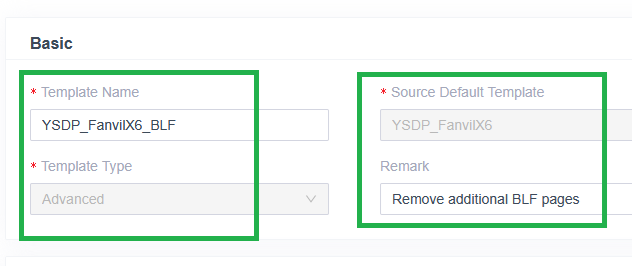

For the template set the following fields:

1. Template Name = (Name the template)

2. Template Type = ADVANCED

3. Source Template = This is what the template will build the defaults from

4. Remark = Note for reference

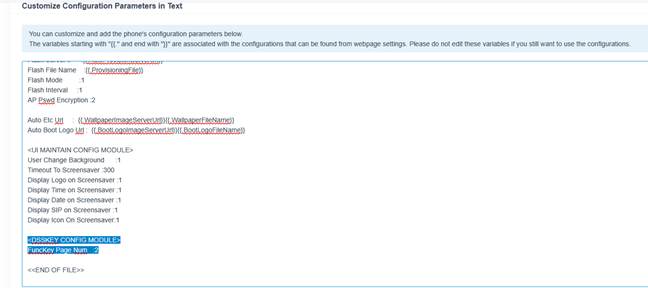

Within the "Customize Configuration Parameters in Text" Add the following line before prior to end of file (Scroll to bottom of cfg file)

<<DSSKEY CONFIG MODULE>

FuncKey Page Num   :2

<<END OF FILE>>

Save template, assign to a device and re-provision device to obtain configuration from the new template.
