Avaya IP Office SIP Trace Requirements

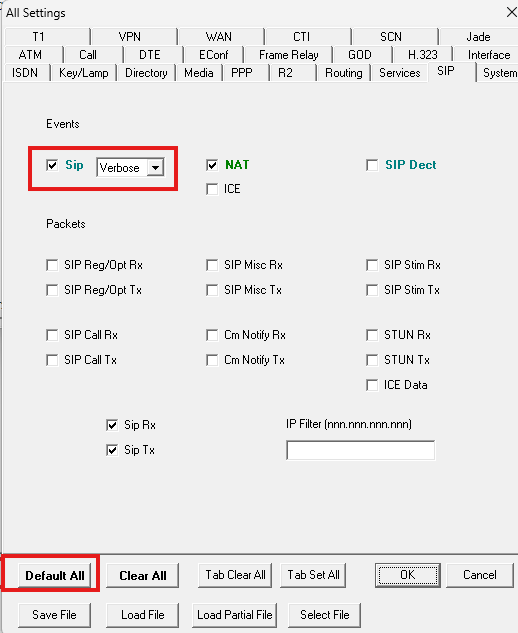

Run Monitor Trace

With default filters + SIP Verbose

A screenshot of a computerAI-generated content may be incorrect.


In System Status

Select Trunks

Select the SIP line been used

Select Trace All



In System Status

Select Snapshot, Include Switch Configuration, Continuous Log


Select OK

A screenshot of a computer programAI-generated content may be incorrect.


Select a Location for the log and select Save

A screenshot of a computerAI-generated content may be incorrect.


Make a test call


When finished


Save the Monitor Trace. Txt file (File, Save Screen Log As)

Set a File Name and Save

A white rectangular object with a black borderAI-generated content may be incorrect.



Save the System Status Log file by selecting LogOff

A screenshot of a computerAI-generated content may be incorrect.


Save a copy of the system configuration


Save a copy of the config using Manager

Select File, Save Configuration As

A screenshot of a computerAI-generated content may be incorrect.


Save the file

Name the file (Recommended as the End Customer Name)

A screenshot of a computerAI-generated content may be incorrect.




Save a System Status Snapshot

Select Snapshot, Include switch configuration, Snapshot Only

Select OK

A screenshot of a computerAI-generated content may be incorrect.




Send the 4 files

Monitor Trace file .txt

System Status Log file .slo

System Status Snapshot .ssh

System Config file .cfg

to helpdesk@commsplus.com.au


In the email

Include the Details below

  • Callers Number
  • Number Called
  • If Forwarding/Twinning the Number calls are Forwarding To
  • What needs to happen?
  • Details of the Issue?
